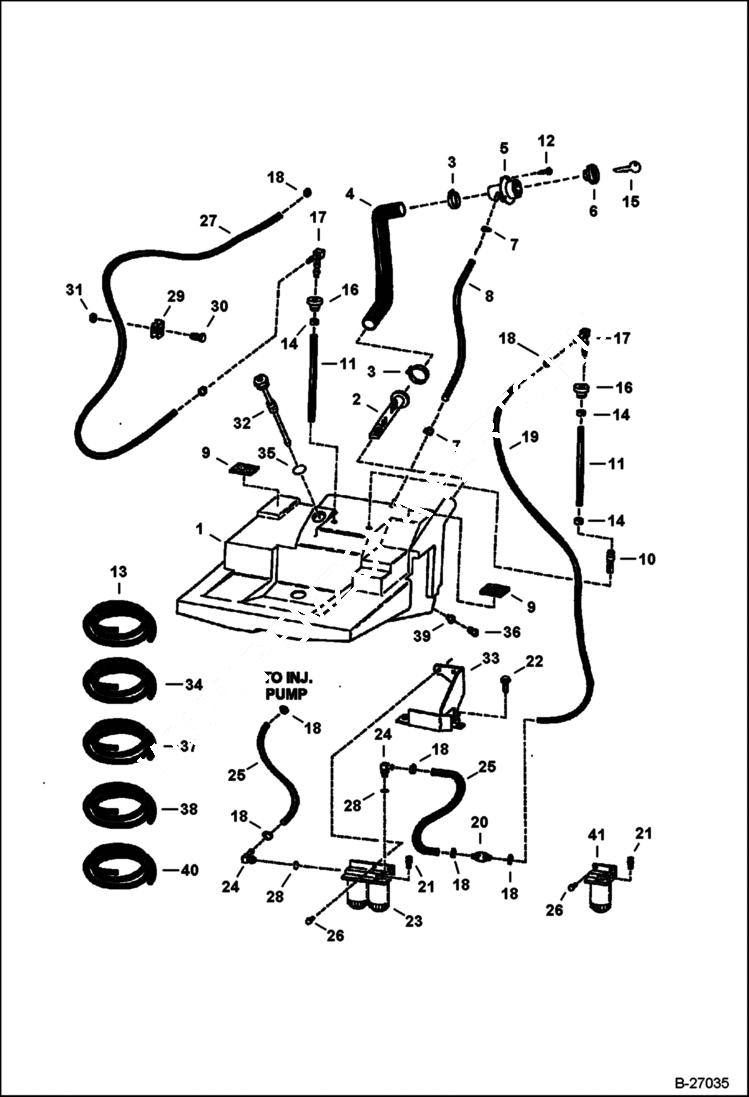

Запчасти Bobcat 700s FUEL SYSTEM MAIN FRAME

1

TANK NLA - See Note - Order 6712882 Tank & Refs. 10, 11, 14, 16, 17 - Was 6708068 - A

1

6712882

TANK See Note

2

7120881

SCREEN, FILLER Was 6569219 - A

3

42H32

HS CLAMP5 Was 6513595 - A

4

6710654

HOSE Was 6709839 - A

5

6701449

FILLER TUBE

6

6632468

CAP green

6

6661696

CAP, FUEL LOCKING locking - W/Ref. 15 Code PK510

7

42H10

HOSECLAM5

8

HOSE NLA - 25'' (635,0 mm) - Order Ref. 13

9

6578278

PAD self adhesive one side

10

6666600

SCREEN

10

6650239

SCREEN, FUEL PICKUP

11

HOSE NLA - 12 (304,8 mm) - .50 in. I.D. (12,7 mm) - Order Ref. 37

11

HOSE NLA - 12''(304,8 mm) - .25'' I.D. (6,3 mm) - Order Ref. 40

12

6706517

SCREW

13

6578172

HOSE bulk-Sold Per Foot - .625 ID

14

6666602

CLAMP For .50 ID Hose Ref. 11

14

6661213

RING, COMPRESSION For .25 ID Hose Ref. 11

15

6587458

KEY Code PK510

16

BUSHING NLA - Was 6708943 - A

16

6553411

BUSHING 0.38'' ID

17

6708817

ELBOW

17

6598908

ELBOW Was 6681462 - A

18

42HS04

CLAMP, HOSE Was 6515575 - A

19

HOSE NLA - 30'' (762,0 mm) - Order Ref. 34

20

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long

21

6658180

PLUG, BLEED

22

84G3712

BOLT 5

23

6714478

FILTER ASSY dual filter kit - includes filter assy 6670873 with 24'' (610mm) of 6577822 bulk hose

23

6670873

FILTERASY dual filter assy

23

6667352

FILTER, FUEL W/SEPARATOR 12

23

6670758

FILTER secondary fuel filter

23

72F1

FITTING

24

ELBOW NLA - W/Ref. 28 - Flat boss face - Was 6657083 - A

24

6715183

ELBOW W/Ref. 28 - Check boss face to determine correct replacement o-ring

25

HOSE NLA - 9'' (228,6 mm) - Order Ref. 34

26

17C512

BOLT 5

27

HOSE NLA - 49'' (1244,6 mm) - Order Ref. 34

28

79K5

O RING 10 Flat boss face

28

99K5

O-RING Tapered boss face

29

30H36

CLIP

30

17C612

BOLT 5

31

61D6

NUT 5

32

SENSOR NLA - fuel - W/Ref. 35 - (25K-40102 O-ring) - Order 6680448 Sensor - Was 6667847 - A

32

7216453

SENSOR, FUEL fuel - W/Ref. 35 - (6717579 Gasket) - Was 6680448 - A

33

6712909

BRACKET Was 6710447 - A

34

6577822

HOSE bulk - sold per foot - .3125'' ID

35

25K40102

O RING 10 Was 79K000020B - B

35

6717579

GASKET

36

6599645

PLUG, STEEL fuel drain

37

6708944

HOSE - BULK/FT bulk-Sold Per Foot - .50'' I.D. (12,7 mm)

38

6578169

HOSE bulk - sold per foot - 0.19'' ID

39

6553411

BUSHING 0.38'' ID

40

6569752

HOSE BULK/FT Bulk - Sold Per Foot - .25'' I.D. (6,3 mm)

41

FILTER ASSY NLA - single filter assy - Order Ref. 23 (6714478 filter kit)

41

6667352

FILTER, FUEL W/SEPARATOR 12

41

72F1

FITTING
