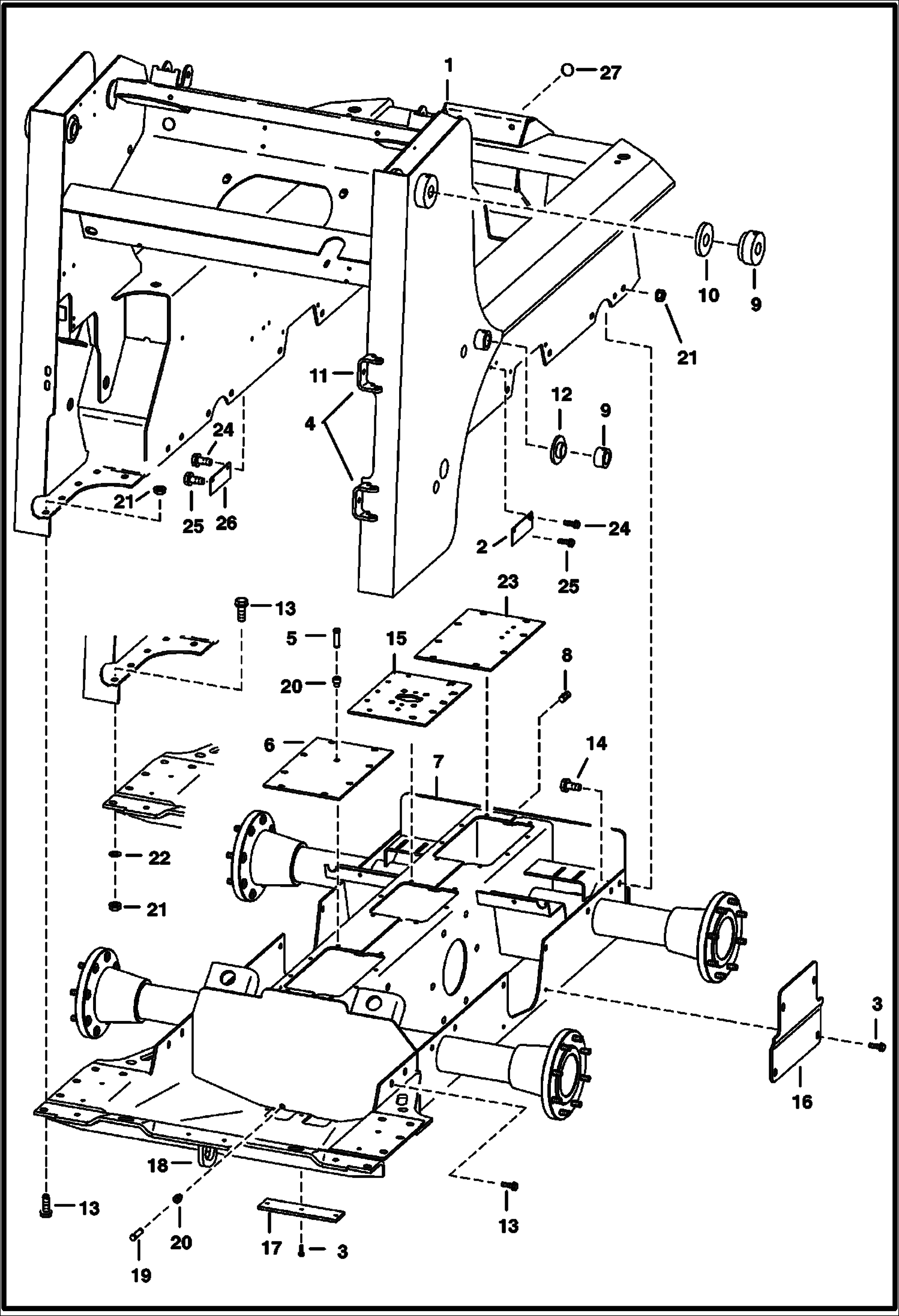

Запчасти Bobcat 700s MAIN FRAME MAIN FRAME

1

MAIN FRAME NLA - Order 6737360 Mainframe, 6736359 Grill, 6736362 Radiator, 6736378 Seal, 6736379 Tank, 7101090 Hose, 6727635 Tube, 6681945 Elbow, 6685625 Hose, 6732820 Mount, 6733429 Cap, 6736377 Oil

1

6737360

MAINFRAME

2

6704680

COVER 5.16 x 2.25''

3

84G3712

BOLT 5

4

6708987

HINGE, WELD-ON

5

6680970

BREATHER See Illustration DISC BRAKE/ TS1449 Was 6670627 - A

6

6700330

COVER

7

CHAINCASE See Illustration DRIVE TRAIN/ D1886 See BTI359 NLA - Was 6712827 - A

8

6731121

PLUG chaincase fill - Was 11F-12 - A

9

6702584

BUSHING, WELD-ON weld on

10

6702583

BUSHING, WELD-ON

11

6577394

BRACKET hinge - weld on

12

6555987

BUSHING weld on

13

31C824

BOLT 10

14

31C820

BOLT

15

6706042

COVER See Illustration DISC BRAKE/ TS1449

16

6733701

COVER Was 6704695 - A

17

6700182

COVER, DRAIN

18

6706485

HOOK tie down - weld-on

19

6599645

PLUG, STEEL chaincase drain

20

6553411

BUSHING

21

83D8

NUT 5

22

6701097

WASHER

23

6578505

COVER See Illustration DISC BRAKE/ TS1449

24

84G3110

SCREW RH side

24

84G3112

BOLT 5 LH side

24

84G3710

SCREW 3/8 x .62''

25

17C620

BOLT Was 6717378 - A

26

6727837

COVER 5.5'' x 2.6''

27

6718796

PLUG
