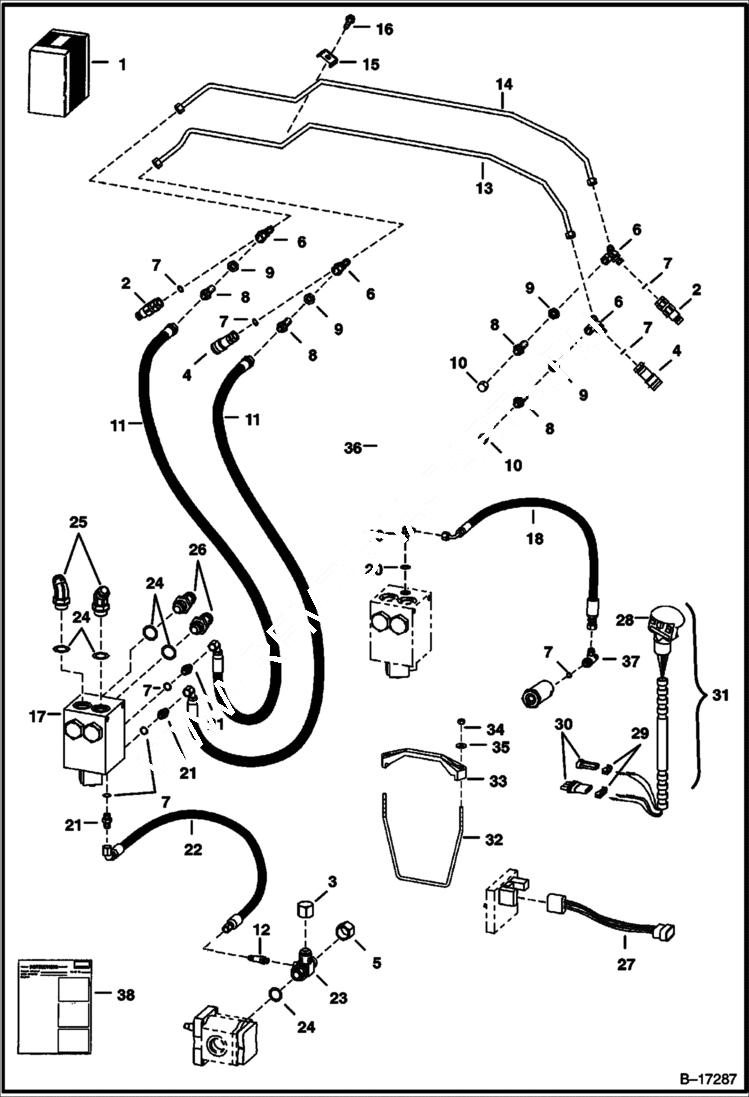

Запчасти Bobcat 700s REAR AUXILIARY (W/Pressure Relief Features & FF Couplers) ACCESSORIES & OPTIONS
№
Артикул
Название
Примечание
Количество
1
6711676
KIT Ref. 2 - 38 - Was SALES - D
2
6667804
COUPLER, FF MALE
3
36K8
CAP Use W/O hyd. muffler
4
6667803
COUPLER, FF FEMALE
5
36K8
CAP Use W/hyd. muffler
6
6706220
TEE W/Ref. 7 - Check boss face to determine correcect replacement o-ring
7
79K6
O RING 10 flat boss face
7
99K6
O RING tapered boss face
8
51E0404
ADAPTER
9
61E04
NUT
10
63E04
CAP
11
6706089
HOSE
12
15K3
CONNECTOR flat boss face - W/Ref. 7 - Was 21K000005B - B
12
15KB0404
FTG HYD S Connector W/Ref. 7 (79K4 O-ring)
12
97K4
O'RING flared end
13
6705358
TUBE
14
6705357
TUBE
15
6500989
CLAMP
17
VALVE See Illustration REAR AUXILIARY VALVE/ TS1362
18
6711681
HOSE
19
17K3
ELBOW flat boss face - W/Ref. 20
19
17KB0404
FTG HYD ELBOW 90 tapered boss face - W/Ref. 20 - Was 17KV00003B - A
19
97K4
O'RING flared end
20
79K4
O RING 10 flat boss face
20
99K4
O'RING tapered boss face
21
15K5
FITTING flat boss face - W/Ref. 7
21
ADAPTER NLA - W/Ref. 7 - tapered boss face - Was 15KV-5 - A
21
97K6
O RING flared end
22
6702962
HOSE
23
6707103
CONNECTOR W/Ref. 24
24
99K12
O RING tapered boss face
25
18K8
FTG flat boss face - W/Ref. 24
25
18KB1212
FITTING, HYD ELBOW tapered boss face - W/Ref. 24 - Was 18KV00008B - A
25
97K12
O'RING flared end
26
45K8
ADAPTOR flat boss face
26
45K8
ADAPTOR tapered boss face - Was 45KN00008B - A
26
97K12
O'RING flared end
27
6704114
HARNESS
28
6680414
HANDLE ASSY. two-switch - for L.H. steering lever - Was 6705921 - A
29
6641180
LOCK Use W/ 2-pin connector
29
6640700
LOCK 3-pin
30
6641179
CONNECTOR 2-pin
31
6706566
KIT two-switch - Ref. 28-30
32
6712640
BRACKET
33
6569203
CLAMP
34
59D5
NUT 5
35
25E15
WASHER
36
6710435
HARNESS
37
TEE NLA - W/Ref. 7 - tapered boss face - Was 21KV-5 - A
37
97K6
O RING flared end
37
21KB0606
FTG HYD STRAIGHT TEE W/Ref. 7 - flat boss face
38
6724487
INSTRUCTIONS
