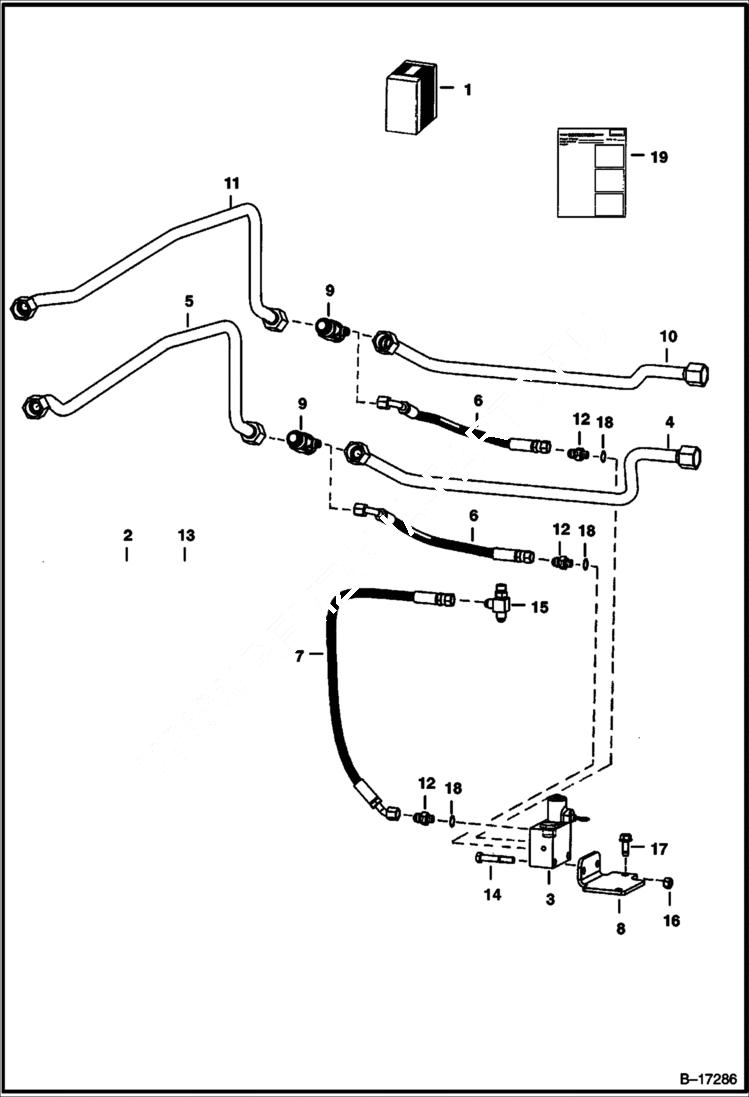

Запчасти Bobcat 700s PRESSURE RELEASE KIT (Front Auxiliary) ACCESSORIES & OPTIONS

1

6718240

KIT front aux. press. release - Ref. 2 - 19

2

6610510

TIE

3

VALVE See Illustration PRESSURE RELEASE VALVE/ PE1017 NLA - .4375 in. Threaded ports - Order 6678150 valve & (3) of Ref. 12 (15KV-5 adapter)

3

6678150

VALVE See Illustration PRESSURE RELEASE VALVE/ PE1017 .5625 in. threaded ports

4

6717915

TUBE

5

6717916

TUBE

6

6717919

HOSE

7

6717921

HOSE

8

6717922

BRACKET

9

6717923

TEE

10

6717917

TUBE

11

6717918

TUBE

12

ADAPTER NLA - W/Ref. 18 (flat boss face) - Use W/Ref. 3 (NLA/6674372 Valve) - Was 6718109 - A

12

97K6

O RING flared end

12

15KB0604

FTG HYD S CONNECTOR W/Ref. 18 - flat boss face

12

ADAPTER NLA - W/Ref. 18 (tapered boss face) - W/Ref. 3 (6678150 Valve) - Was 15KV-5 - A

12

97K6

O RING flared end

12

15KB0606

FITTING, HYD CONNECTOR W/Ref. 18 - flat boss face

13

6718111

HARNESS

14

17C636

BOLT

15

21KB0606

FTG HYD STRAIGHT TEE Was 21KN00005B - A

15

97K6

O RING flared end

16

61D6

NUT 5

17

84G3716

SCREW 5

18

79K4

O RING 10 flat boss face

18

99K6

O RING tapered boss face

19

6900841

INSTRUCTIONS
