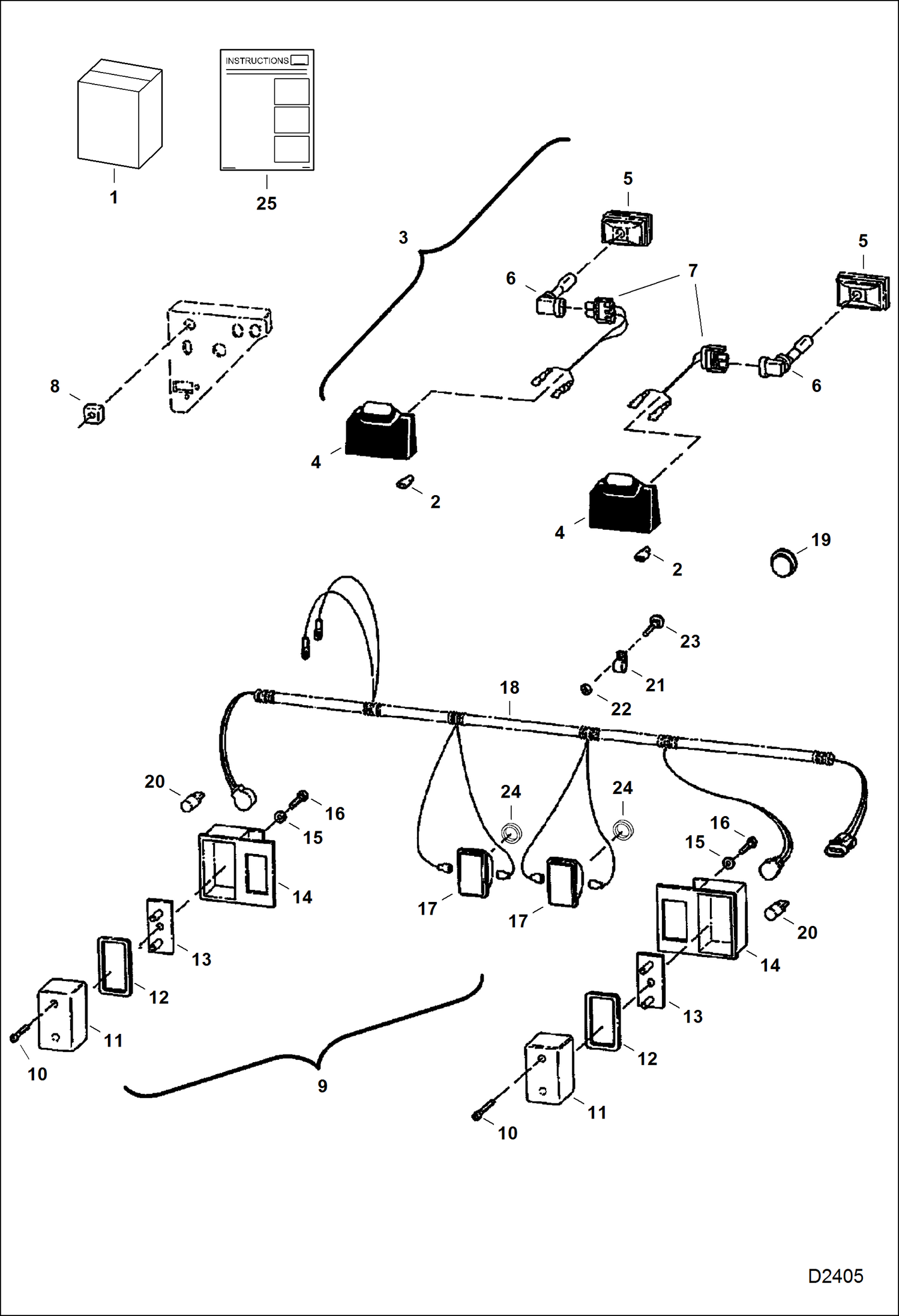

Запчасти Bobcat 700s LIGHT KIT ACCESSORIES & OPTIONS

1

6714985

LIGHT KIT W/Ref. 2 - 23

2

6519548

CONNECTOR

3

6577801

LIGHT W/Ref. 4-7

4

6578824

HOUSING lights

5

6649478

BULB HOUSING

6

6667934

BULB

7

6578528

HARNESS light

8

6665410

SWITCH

9

6670284

LIGHT ASSY Ref. 10 - 16

10

6672273

SCREW

11

6672276

LENS, LIGHT RED red

12

6672275

GASKET

13

6672277

BRACKET

14

6672279

MOUNT, LIGHT RUBBER rubber

15

6672272

WASHER

16

6672274

SCREW

17

6661353

LIGHT ASSY W/bulb - white

17

898731

1156 BULB

18

6714350

HARNESS Was 6716419 - B

19

6718796

PLUG Was 6660646 - A

20

6649481

LIGHT, WEDGE BASE

21

30H42

CLAMP Was 30H000035B - B

22

37C512

BOLT

23

61D5

NUT

24

6900651

INSTRUCTIONS Was 6722198 - A
