Запчасти Bobcat 700s HANDLE KITS ACCESSORIES & OPTIONS

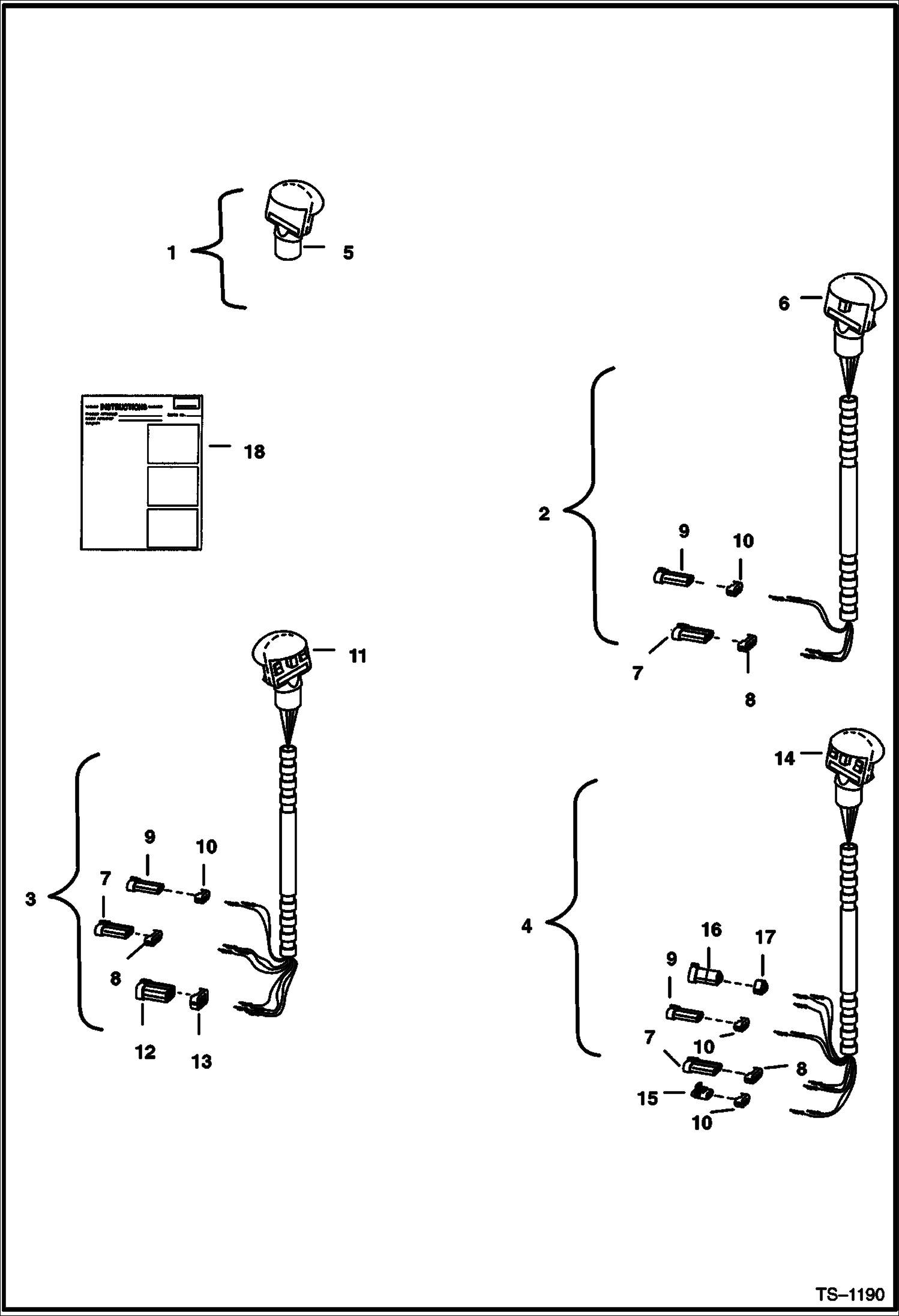

Схема запчастей Bobcat 700s - HANDLE KITS ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6706565

KIT Ref. 5 & 18

2

6706566

KIT Ref. 6-10 & 18

3

6706567

KIT RH - Ref. 7-13 & 18

4

6706568

KIT LH - Ref. 7-10 & 14-18

5

6680415

HANDLE blank - Was 6705920 - A

6

6680414

HANDLE ASSY. 2-switch - Was 6705921 - A

6

6640690

PIN

6

6641176

SEAL

7

6640699

CONNECTOR 3-pin

8

6640700

LOCK 3-pin

9

6641179

CONNECTOR 2-pin

10

6641180

LOCK Use W/ 2-pin connector

11

6680413

HANDLE ASSY RH - deluxe - multi switch - Was 6706340 - A

11

6640690

PIN

11

6641176

SEAL

12

6641173

CONNECTOR 6-pin

13

6641181

LOCK 6-pin

14

6680412

HANDLE ASSY LH - deluxe - multi switch - Was 6707976 - A

14

6640690

PIN

14

6640691

PIN

14

6641176

SEAL

14

6662257

PIN

14

6680447

DECAL Was 6677370 - A

15

6641178

CONNECTOR 2-pin

16

6664599

CONNECTOR 3-pin triangle

17

6664800

LOCK 3-pin triangle

18

6722759

INSTRUCTIONS

Выбрано товаров: 27
