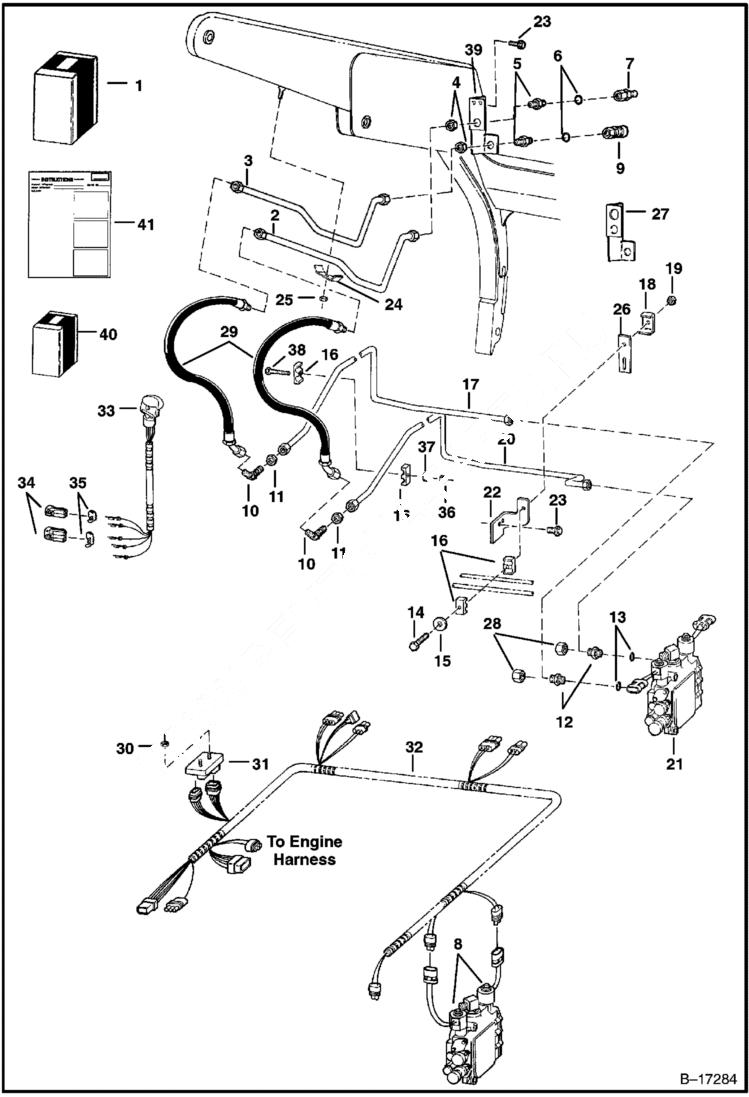

Запчасти Bobcat 700s FRONT AUXILIARY KIT ACCESSORIES & OPTIONS

1

6712387

KIT front aux Ref. 2-7, 9-11, 13, 14, 16-20 & 23-41

2

6711735

TUBE

3

6711736

TUBE

4

86F7

LOCK NUT

5

FITTING NLA - W/Ref. 6 - flat boss face - Was 6711625 - A

5

CONNECTOR NLA - W/Ref. 6 - flat boss face - Was 6715185 - A

5

97K10

O-RING 10 flared end

5

6812816

ADAPTER W/Ref. 6 - flat boss face

6

79K12

O RING 10 flat boss face

6

99K12

O RING tapered boss face

7

6674688

COUPLER, FF MALE straight - Was 6667808 - A

7

6679841

SEAL Was 6672026 - A

8

6717708

COIL, 14 VOLT Not in Kit - W/Nut - Was 6665759 - A

8

6679961

NUT

9

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

10

46K8

ELBOW flat boss face - Was 16K000008B - B

10

ELBOW NLA - tapered boss face - Was 46KN-8 - A

10

46K8

ELBOW flat boss face

10

97K12

O'RING flared end

11

86F8

NUT 5

12

ADAPTER W/Ref. 6 - Not in Kit

13

79K10

O RING 10 flat boss face

13

99K10

O'RING tapered boss face

14

17C552

BOLT

15

872229

WASHER Not in Kit

16

6592506

CLAMP

17

6713754

TUBE

18

6568476

CLAMP

19

85D5

NUT 5

20

6713755

TUBE

21

VALVE See Illustration HYDRAULIC CONTROL VALVE/ TS1454 NOT IN KIT

22

6704619

MOUNT Not in Kit

23

84G3112

BOLT 5

24

6502203

CLAMP

25

59D6

NUT

26

6702548

PAD

27

MOUNT NLA - Order Ref. 39 - Was 6711672 - A

28

36K8

CAP

29

6729153

HOSE Was 6714577 - D

30

85D4

NUT 5

31

6671669

MODULE, CONTROL AUX Was 6669529 - C

32

6719149

HARNESS Was 6712136 - A

33

6680414

HANDLE ASSY. Was 6705921 - A

33

6640690

PIN

33

6641176

SEAL

34

6641179

CONNECTOR 2-pin

34

6640699

CONNECTOR 3-pin

35

6641180

LOCK Use W/ 2-pin connector

35

6640700

LOCK 3-pin

36

83D5

NUT 5

37

872229

WASHER

38

37C540

BOLT

39

6713850

MOUNT

40

6718240

KIT See Illustration PRESSURE RELEASE KIT/ B17286 FRONT AUX. PRESSURE RELEASE

41

6724529

INSTRUCTIONS
