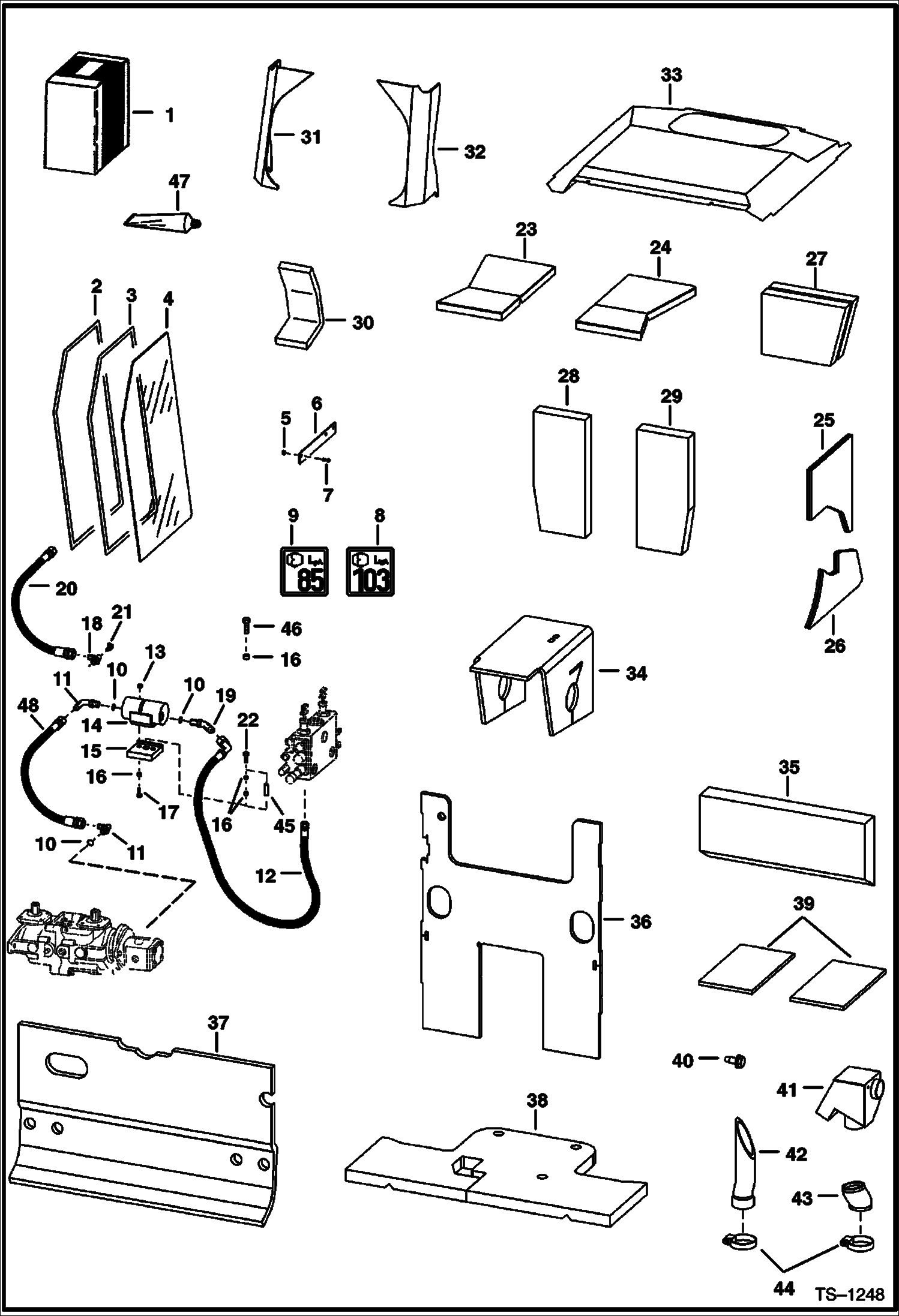

Запчасти Bobcat 700s EUROPEAN ACCESSORIES (Sound Option) ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2-11 & 13-38 - Order individual parts

2

6631549

HOOK scotchmate

3

6631548

LOOP scotchmate

4

6702731

WINDOW, CAB cab

5

83D4

NUT 10

6

6700875

RETAINER window

7

35C410

BOLT 5

8

6579403

DECAL sound level warning - 103 decibel

8

6733220

DECAL, DECIBEL noise level - 102db - Was 6579402 - A

9

6579385

DECAL sound level warning - 85 decibel

9

6579399

DECAL sound level warning - 83 decibel

10

79K12

O RING 10 flat boss face

10

99K12

O RING tapered boss face

11

17K8

FITTING flat boss face - W/Ref. 10

11

17KB1212

FITTING, HYD ELBOW tapered boss face - W/Ref. 10 - Was 17KN00008B

11

97K12

O'RING flared end

12

6729147

HOSE Was 6707233 - A

13

85D6

NUT, 5

14

6659982

MUFFLER Was 6703648 - A

15

6705333

MOUNT rubber

16

6562619

BUSHING

17

35C616

BOLT 5

18

6700599

ELBOW W/Ref. 10 - Use W/Ref. 20

19

18K8

FTG flat boss face - W/Ref. 10

19

18KB1212

FITTING, HYD ELBOW tapered boss face - W/Ref. 10 - Was 18KV00008B - A

19

97K12

O'RING flared end

20

HOSE NLA - Order Ref. 11 & 48 - Was 6707231 - A

21

6707895

ELBOW

22

84G3724

BOLT

23

6732723

INSULATION crossmember - R.H. - Was 6704722 - A

24

6732722

INSULATION crossmember - L.H. - Was 6704721 - A

25

6719332

INSULATION blower housing - Was 6704725 - A

26

6704769

INSULATION blower housing

27

6705848

INSULATION transmission

28

6705849

INSULATION brace - L.H.

29

6705850

INSULATION brace - R.H.

30

6703331

INSULATION air inlet

31

6715097

INSULATION cab corner

32

6715098

INSULATION cab corner

33

6715094

INSULATION cab top

34

6715372

INSULATION transmission

35

6715096

INSULATION cab back - Was 6706903 - B,D

36

6715099

INSULATION steering panel

37

6715106

INSULATION rear door

38

6715095

INSULATION seat pan - Was 6706983 - A

39

6715371

INSULATION pedal

40

84G3112

BOLT 5 Was 84G003712B - B

41

6715250

MUFFLER intake

42

6715239

HOSE intake

43

6715240

HOSE air cleaner

44

42HL300

CLAMP Was 6598799 - A

45

6715744

BUSHING

46

84G3716

SCREW 5

47

6633583

SEALANT, POLYURETHANE 300 ML

48

6729144

HOSE
