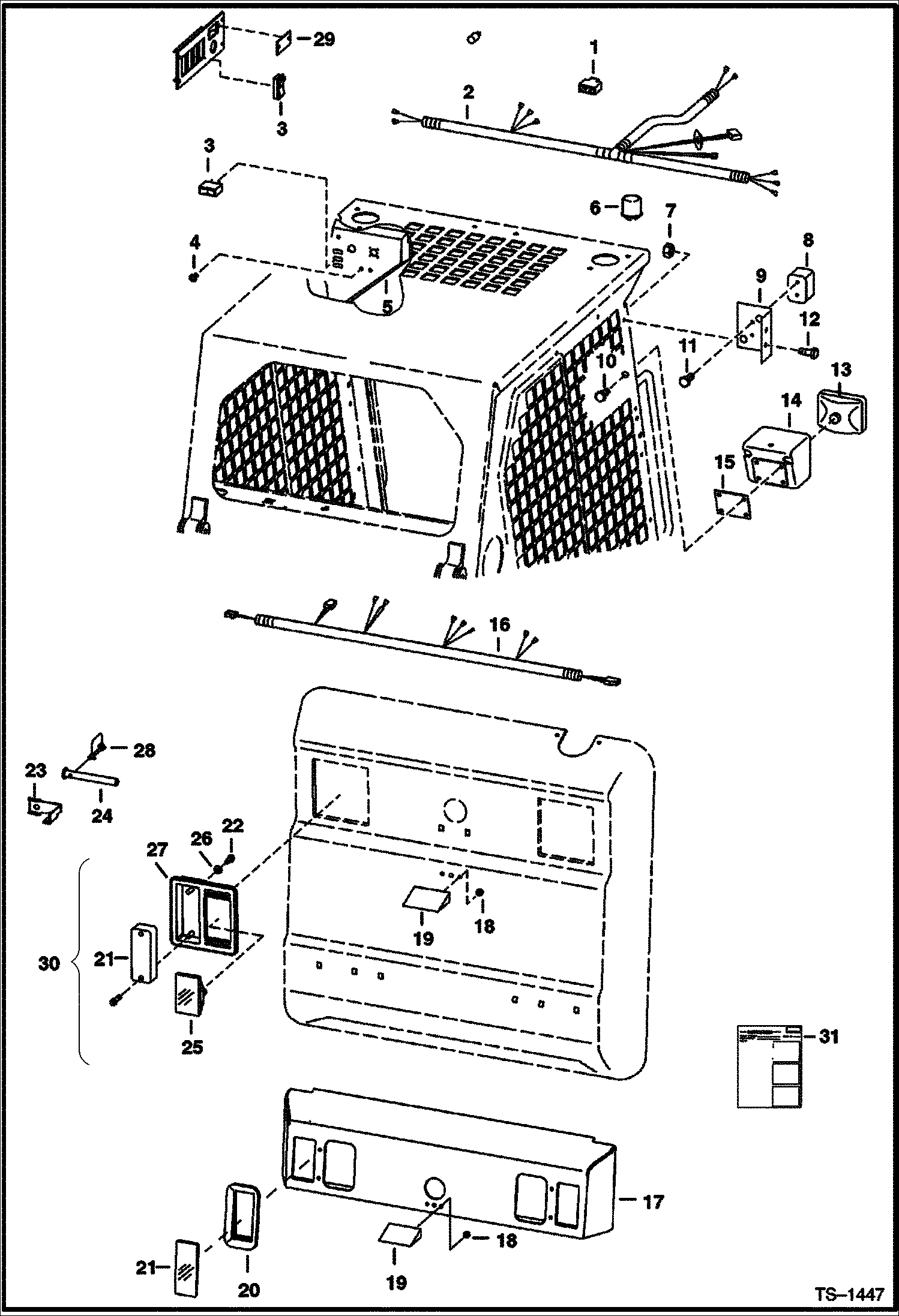

Запчасти Bobcat 700s EUROPEAN ACCESSORIES (Road Lights) ACCESSORIES & OPTIONS

1

6519548

CONNECTOR

2

6707672

HARNESS

3

6665316

SWITCH hazard

3

6665315

SWITCH head light

4

6665757

LIGHT indicator

5

6712152

PANEL See Illustration CAB ELECTRICAL CIRCUITRY/ B17270 L.H.

6

6557904

FLASHER

7

83D4

NUT 10

8

6665727

LIGHT

8

BULB NLA - Order Ref. 21 (666568 bulb) - 5W - Was 6666567 - A

8

6666568

BULB 21W

8

6666563

LENS

9

6707706

MOUNT light

10

17C508

BOLT

11

58G808

SCREW

12

35C410

BOLT 5

13

6665728

LIGHT front

13

6666570

BULB 40/45W

13

6666564

HOUSING

13

6666565

LENS

13

6666566

GASKET

14

6707804

HOUSING light

15

6708824

MOUNT

16

6718198

HARNESS Was 6714546 - A

17

6705776

HOOD

18

1DM6

NUT

19

6665729

LIGHT license plate

19

6666569

BULB 5W

20

6705774

MOUNT

21

6707789

LIGHT

21

6666568

BULB 21W

21

6667887

BULB 21/5W

21

6668007

SCREW

21

6668010

LENS

22

4DM5

NUT

23

6713736

BRACKETS light switch

24

6714008

PIN Bob-Tach lock

25

6671027

LIGHT

26

25E11

WASHER

27

6672279

MOUNT, LIGHT RUBBER rubber

28

6670668

PIN snapper

29

NLA - fuse out - Was 6669143 - A

29

6669144

INDICATOR fuse/flasher

30

6724072

INSTRUCTIONS
