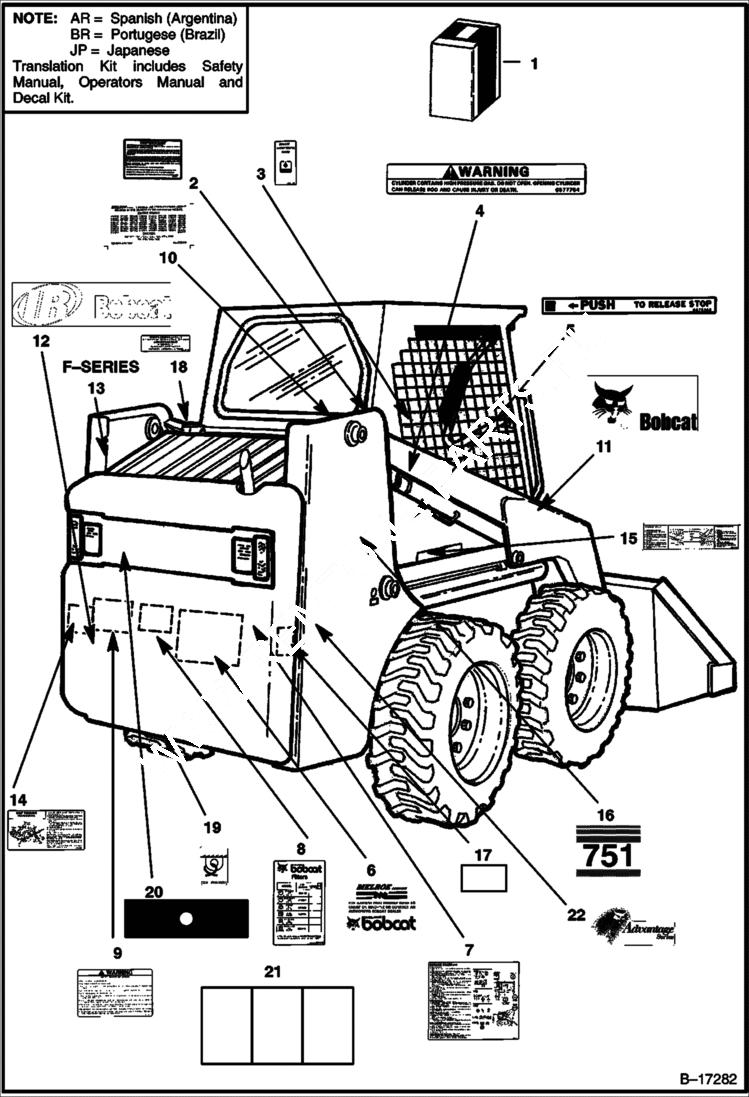

Запчасти Bobcat 700s DECALS ACCESSORIES & OPTIONS

1

6900503

KIT decal - Was 6701897 - B,D

1

6716206AR

KIT decal - SEE NOTE

1

6716206BR

KIT decal - SEE NOTE

1

6716206JP

KIT decal - SEE NOTE

1

6716207AR

KIT translation - SEE NOTE

1

6716207BR

KIT translation - SEE NOTE

2

6560573

DECAL spark arrestor

3

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

4

6577754

DECAL, WARNING 5 gas spring

5

6578368

DECAL, OPERATION push to release stop

6

6565200

DECAL, FILTER

7

DECAL NLA - service - Was 6708212 - A

8

DECAL NLA - filters - Was 6709781 - A

9

DECAL NLA - warning - Was 6579511 - A

10

DECAL NLA - patent - Was 6557224 - C

11

6727309

DECAL, LOGO RH RH - Was 6702826 - A

11

6727308

DECAL, LOGO BOBCAT LH - W/Bobcat head - Was 6702827 - A

12

DECAL NLA - Logo - Was 6727311 - A

13

6714858

DECAL ''F''-Series

14

6709030

DECAL belt tension - spring loaded idler

15

6706558

DECAL, OPERATION lift arm support

16

6714531

DECAL model no. - 751

17

6715991

DECAL fuses - Was 6707786 - A

18

6708929

DECAL, COOLANT propylene glycol

19

6595014

DECAL Tie down - Was 6727595 - B

20

6714242

DECAL rear door

21

6734534

DECAL, SERVICE warning/service/service parts - Was 6718398 - A

22

6718272

DECAL advantage series - R.H. - Not in Kit
