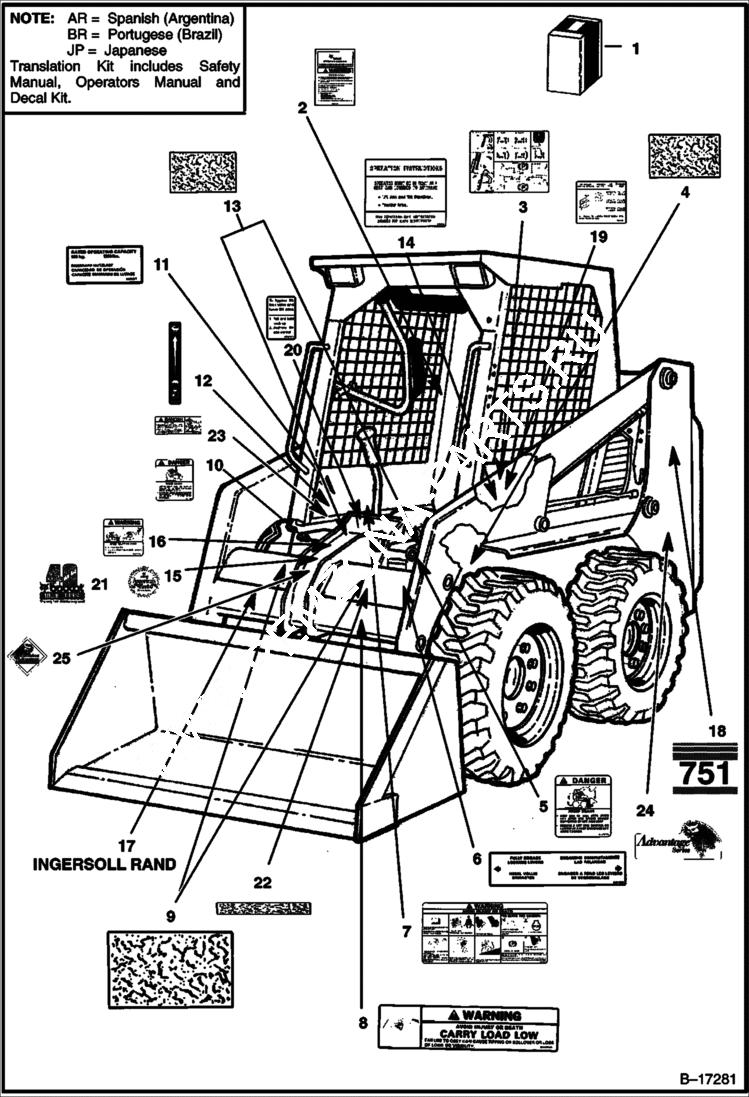

Запчасти Bobcat 700s DECALS ACCESSORIES & OPTIONS

1

6900503

KIT decal - Was 6701897 - B,D

1

6716206AR

KIT decal - SEE NOTE

1

6716206BR

KIT decal - SEE NOTE

1

6716206JP

KIT decal - SEE NOTE

1

6716207AR

KIT translation - SEE NOTE

1

6716207BR

KIT translation - SEE NOTE

2

6708154

HANDBOOK, OPERATOR'S W/WIRE ROPE

2

6708154ES

KIT handbook-W/Wire Rope-Spanish

2

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

2

6558310

SLEEVE wire rope

2

17C512

BOLT 5

2

61D5

NUT

3

6703723

DECAL operating

4

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

5

6579639

DECAL danger

6

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

7

6579510

DECAL warning

8

6579528

DECAL, WARNING carry load low

9

6577947

SAFETY TREAD 190,5 x 381 mm (7.5 x 15'')

10

6579509

DECAL danger

11

6725527

DECAL capacity - 751 - Was 6714918 - A

12

6735140

DECAL, THROTTLE Was 6557565 - A

13

6577949

SAFETY TREAD 6.8 in. x 8.75 in. - (172,7 mm x 222,3 mm)

13

6707255

DECAL Seat & seat bar operating w/ seat sensor

14

6727926

DECAL, OPERATION hand & foot controls - not in kit - Was 6718703 - A

14

6717639

DECAL operating - AHC - Was 6717043 - A

15

6705088

DECAL America's Best

16

6710358

DECAL warning

17

DECAL NLA - Ingersoll Rand - Was 6727310 - A

18

6714531

DECAL model no. - 751

19

6708105

DECAL pre heat

20

6711840

DECAL lift lock

21

6715912

DECAL 40th anniversary

22

6710746

SAFETY TREAD 1.25 in. x 15 in. (31,8 mm x 381 mm)

22

6727917

SAFETY TREAD 32 x 267 mm (1.25 x 10.5'')

23

6717343

DECAL, DANGER

24

6718271

DECAL advantage series - L.H. - Not in Kit

25

6718275

DECAL Bobcat advantage
