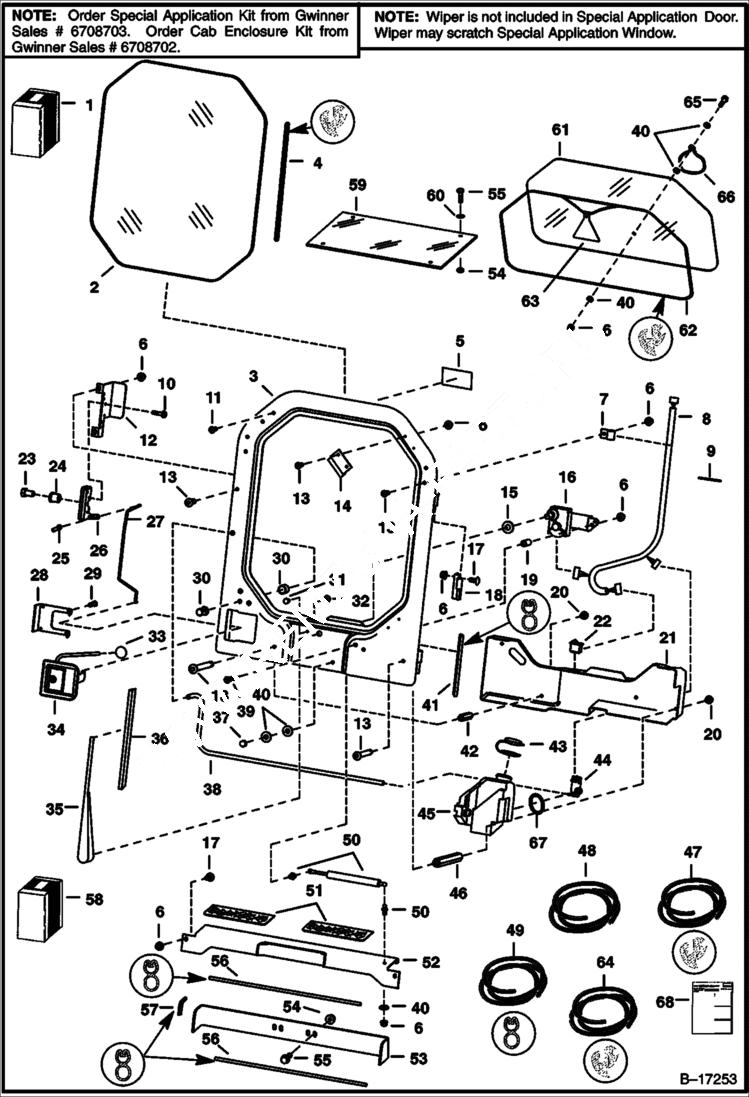

Запчасти Bobcat 700s CAB ENCLOSURE ACCESSORIES & OPTIONS

1

6708702

KIT, ENCLOSURE CAB Ref. 2-68 - Was SALES - A

1

6708703

KIT, SPECIAL APPS does not include wiper - Was SALES - A

2

6707225

WINDOW .25 in. thick - safety glass - for standard door

2

6708499

WINDOW .5 in. thick - plexiglass - for special applications door

3

6707220

FRAME, DOOR CAB Also Order Ref. 5 (6707852 decal)

4

SEAL NLA - Order Ref. 47 - 91 in. (2311 mm) long

4

CORD NLA - Order Ref. 47 - 91 in. (2311 mm) long - Also Order Ref. 9 (6610510 tie)

5

6707852

DECAL, EXIT emergency

6

83D5

NUT 5 for standard door

6

83D5

NUT 5 for special applications door

7

30H37

CLAMP

8

6708269

HARNESS

9

6610510

TIE

10

35C416

BOLT

11

5289686

PLUG black - 0.38'' dia hole

12

6707222

MOUNT latch

13

25G512

SCREW for standard door

13

25G512

SCREW for special applications door

14

6708500

CLAMP for special applications door

15

27E10

WASHER

16

6665532

MOTOR, WIPER W/splined shaft

16

GEAR NLA - Was 6631927 - A

16

SHAFT NLA - Order 6665532 motor - Was 6670163 - A

16

LINK NLA - Was 6670164 - A

16

6670165

CLIP

17

10C512

BOLT

18

6707216

HINGE

19

6708096

BUSHING

20

35C510

BOLT

21

6707179

SHIELD

22

6665707

SWITCH

23

17C712

BOLT

24

6568047

NUT bushing

25

6512274

CLIP

26

6665531

LATCH

27

6707221

ROD latch release

28

6703751

RETAINER

29

45G1008

BOLT

30

6666767

NOZZLE washer - Was 6664555 - A

31

17C408

BOLT

32

55D4

NUT

33

6647635

KNOB

34

6665530

LATCH W/ Key - W/Ref. 33

34

6632560

KEY

35

6664095

ARM, WIPER

36

6664096

BLADE, WIPER WINDOW

37

46D5

NUT

38

HOSE NLA - Order Ref. 48 - 26 in. (660,4 mm) long

39

25G528

BOLT

40

25E16

WSHR

41

SEAL NLA - Order Ref. 49 - 137 in. (3480mm) long

42

6707224

COUPLING

43

6665605

CAP

44

6664554

PUMP, WIPER WASHER

45

6707178

TANK

46

6707223

COUPLING

47

6665568

EXTRUSION bulk - sold per foot

47

6554149

CORD, BULK/FT bulk - sold per foot

48

6708310

HOSE, BULK/FT 100 clear - 0.154'' ID - sold per foot

49

6513152

SEAL bulk - sold per foot

50

6630797

GAS SPRING

50

6632221

STUD ball

50

2756257

CLIP spring

51

6703757

SAFETY TREAD

52

6707239

SHIELD

53

6707236

SHIELD

54

83D6

NUT 5

55

35C616

BOLT 5

56

SEAL NLA - Order Ref. 49 - 28 in. (711 mm) long

57

SEAL NLA - Order Ref. 49 - 5 in. (127 mm) long

58

6708975

KIT shield - Ref. 6, 17, 51 - 57 & 59

59

6705216

WINDOW top

60

25E18

WASHER

61

6579325

WINDOW rear - .25 in. thick poly carbonate

62

EXTRUSION NLA - Order Ref. 47 - 100 in. (2540 mm) long

62

CORD NLA - 100 in. (2540 mm) long - Order Ref. 47 - Alao Order Ref. 63 (6731478 exit tag)

63

6731478

EXIT TAG Was 6559515 - A

64

6658352

MOULDING bulk - sold per foot

64

6554149

CORD, BULK/FT bulk - sold per foot

65

35C516

BOLT 10

66

6555331

WIRE ROPE

67

6666766

GROMMET

68

6724029

INSTRUCTIONS
