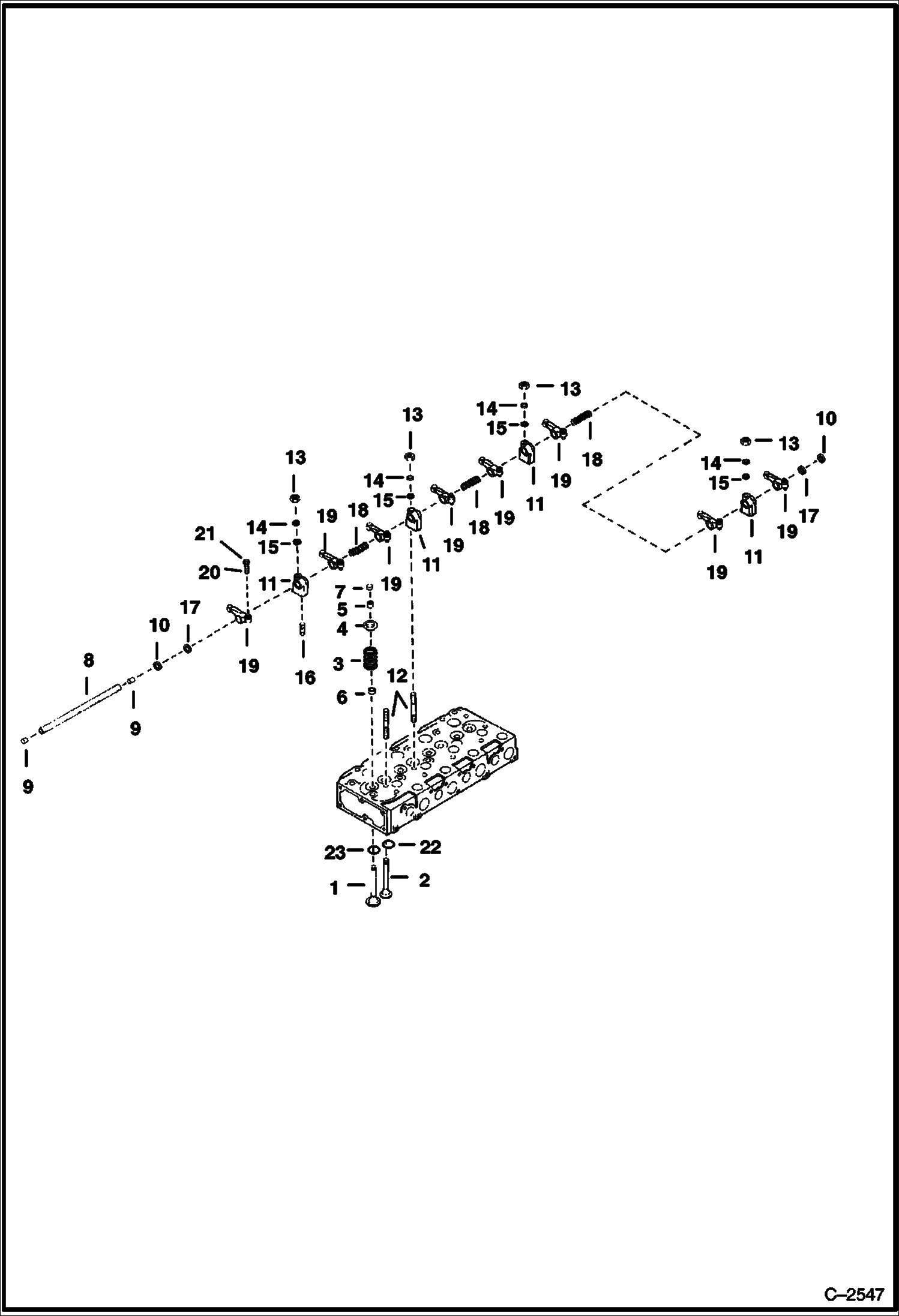

Запчасти Bobcat 700s VALVE ROCKER ARM POWER UNIT

1

6655173

VALVE inlet

2

6655174

VALVE exhaust

3

3974514

SPRING 5 valve

4

3974515

RETAINER valve spring

5

6684874

COLLAR valve spring - set of 2 - Was 3974516B - A

6

6653830

SEAL, STEM VALVE

7

3974518

CAP valve

8

SHAFT NLA - Order 6682545 shaft & 6667461 pin - rocker arm - Was 3974519B - A

9

25GM8010

SCREW

10

5JM14

SNAP RING external

11

3974521

MOUNT rocker arm

12

6653832

STUD

13

6652792

NUT

14

6EM80

WASHER, SPRING

15

1EM80

WASHER Was 2EM8 - A

16

3974523

SCREW

17

3974524

WASHER

18

3974525

SPRING, ROCKER ARM rocker arm

19

6655870

ROCKER ARM rocker - W/Ref. 20 & 21

20

3974920

SCREW adjusting

21

2DM8

NUT

22

6655156

SEAT valve exhaust

23

6655155

SEAT valve inlet
