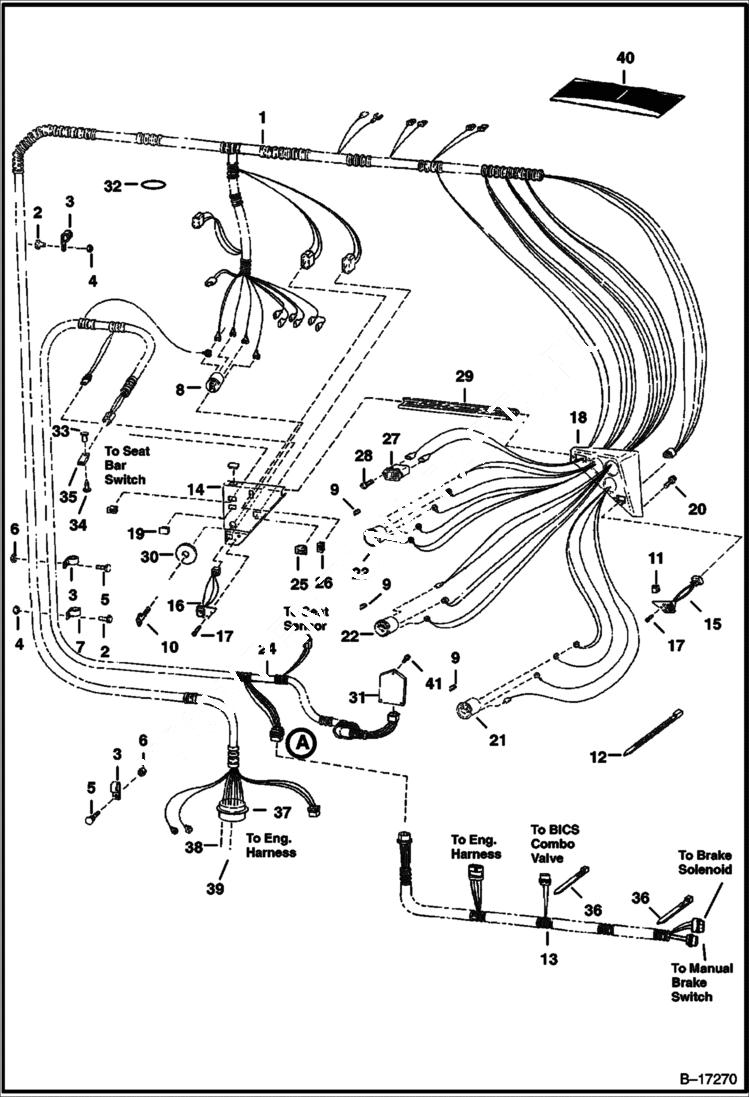

Запчасти Bobcat 700s CAB ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6711767

HARNESS, CAB BASE

1

6710482

HARNESS Export

2

35C410

BOLT 5

3

30H56

CLIP

4

83D4

NUT 10

5

10C412

BOLT

6

61D4

NUT 5

7

30H29

CLAMP

8

6665606

SWITCH

8

6674202

NUT

9

6599696

SOCKET & BULB assy.

9

895771

#161 BULB

10

KEY NLA - includes two keys W/ring - Order 6693241 - Was 6709527 - A

10

6693241

KEY 10 ignition - single key W/O ring

11

6660594

BUTTON on/off

12

6610510

TIE

13

6712523

HARNESS for BICS combo control valve

14

6712152

PANEL L.H.

15

6667904

SWITCH aux. controls module - W/ 5-pin connector - W/Ref. 11

16

6667905

SWITCH traction override

16

SWITCH NLA - traction/seat sensor override - Order 6674220 Switch - Was 6673005 - A

16

6674220

SWITCH, OVERRIDE TRACTION push to operate

17

6669225

BOLT

18

6706896

PANEL R.H.

19

6665314

PLUG Was 6719038 - A

20

6702642

SCREW

21

GAUGE NLA - eng temp - W/clamp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

21

6669663

GAUGE eng temp - W/O clamp

22

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

22

6669664

VOLTMETER W/O clamp

23

FUEL GUAGE NLA - W/clamp - Order 6669665 gauge & 6679027 clamp - Was 6658820 - A

23

6669665

FUEL GUAGE W/O clamp

24

6712134

HARNESS, CONTROLLER

25

6668927

SWITCH glow plug

26

6636018

LIGHT indicator

27

6664886

HOURMETER

28

65G608

SCREW

29

6578780

CROSSMEMBER

30

6709027

PLATE

31

CONTROLLER NLA - Order 6717700 Foot Pedal Push to Operate Kit or 6717702 Mechanical Hand Control Push Kit - Was 6668767 - A

31

CONTROLLER NLA - Order 6717700 Standard Hand Control Seat Sensor Kit or 6717702 Mechanical Hand Control Seat Sensor Kit - Was 6673002 - A

31

6680411

CONTROLLER foot pedals - Was 6674222 - A

31

6680445

CONTROLER AHC - Was 6674224 - A

32

6707674

PLUG round - plugs 1.28 in. (32,5 mm) dia. hole in cab

33

6665321

RIVET plastic male

34

6665322

RIVET plastic female

35

6665000

CLIP

36

6665527

TIE never modify

37

6664584

CONNECTOR Also Order (20) of Ref. 38 & (4) of Ref. 39 - Was 6665683 - A

38

6664827

PIN

39

6664040

PIN

40

6724282

SWITCH KIT Ref. 8, 10 & 30

41

91G412

SCREW cross recess pan head

41

25G412

CAPSCRW10 hex socket button head
