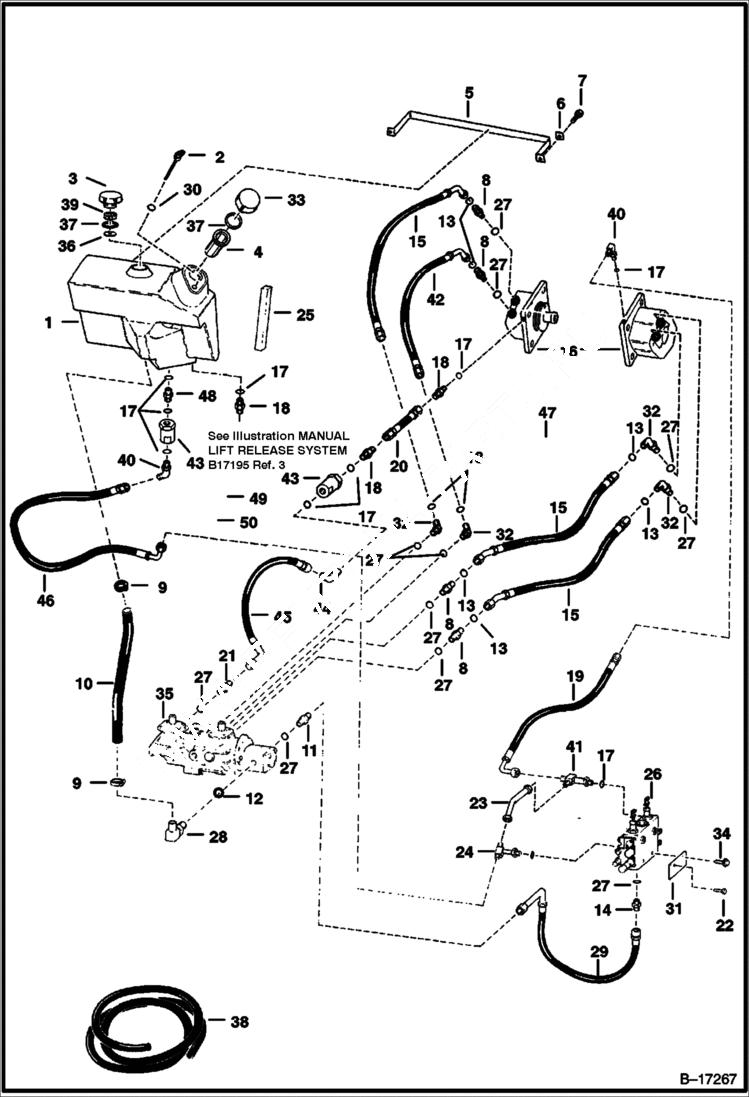

Запчасти Bobcat 700s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

6706450

TANK .93'' I.D. Suction Outlet

2

6577459

DIPSTICK W/Ref. 30

3

6577785

CAP breather - Also Order Ref. 37 & 39 - Was 6727475 - D

4

7120881

SCREEN, FILLER Was 6569219 - A

5

6577585

BAND

6

6559447

WASHER

7

84G3712

BOLT 5

8

52E1212

ADAPTER Was 52E000012B - A

9

5HM42

HOSECLAMP constant tension

9

44H20

CLAMP worm gear - Was 6666864 - A

9

6672281

CLAMP constant torque

10

6716423

HOSE 1.25'' (31,8 mm) I.D. - Was 6706452 - A

11

6704693

TEE W/Ref. 27 - check boss face to determine correct replacement o-ring

11

15KB1212

FITTING, HYD CONNECTOR W/Ref. 27 - tapered boss face - Was 15KN00008B - A

11

97K12

O'RING flared end

12

79K16

O RING 10

13

58K018

O-RING 10

14

15K8

FITTING W/Ref. 27 - flat boss face

14

15KB1212

FITTING, HYD CONNECTOR W/Ref. 27 - tapered boss face - Was 15KN00008B - A

14

97K12

O'RING flared end

14

15KB1212

FITTING, HYD CONNECTOR W/Ref. 27 - flat boss face

15

6671619

HOSE Was 6658365 - D

16

MOTOR KIT See Illustration HYDROSTATIC MOTOR/ C3431

17

79K6

O RING 10 flat boss face

17

99K6

O RING tapered boss face

18

15K5

FITTING W/Ref. 17 - flat boss face

18

ADAPTER NLA - W/Ref.17 - tapered boss face - Was 15KV-5 - A

18

97K6

O RING flared end

18

15KB0606

FITTING, HYD CONNECTOR W/Ref. 17 - flat boss face

19

6707234

HOSE

20

6617736

HOSE Was 6704630 - B,D

21

6578812

ADAPTER W/Ref. 27 - flat boss face

21

ADAPTER NLA - W/Ref. 27 - tapered boss face - Was 6715186 - A

21

97K6

O RING flared end

21

15KB0612

FITTING, HYD CONNECTOR W/Ref. 27 - flat boss face

22

17C532

BOLT 5

22

17C632

BOLT 5 AHC

23

6577690

TUBE

24

TEE NLA - W/Ref. 17 - W/O flared end O-ring - Was 6587888 - A

24

6805696

TEE W/Ref. 17 - W/ flared end O-ring

24

97K6

O RING flared end

25

FOAM NLA - Order Ref. 38 - 16.12'' (409,5 mm) long

26

VALVE See Illustration HYDRAULIC CONTROL VALVE/ TS1454 HYD. CONTROL - W/Ref. 22-24 & 34

27

79K12

O RING 10 flat boss face

27

99K12

O RING tapered boss face

28

6714905

ELBOW W/Ref. 12 - Was 6707409 - A

29

6714594

HOSE Was 6705074 - A

30

25K20010

O RING 10

31

6704680

COVER COVER

32

6714902

ELBOW W/Ref. 13 & 27 - Was 69E000012B - A

33

6728149

CAP , HYD NON VENTED fill - Also Order Ref. 37 - Was 6532508 - A

34

84G3110

SCREW

34

84G3710

SCREW AHC

35

PUMP See Illustration HYDROSTATIC PUMP/ D2377 See Illustration HYDROSTATIC PUMP/ D2376

36

6701552

BAFFLE

37

6700631

GASKET

38

6511855

SEAL self adhesive - bulk - sold per foot

39

6703427

FOAM FILTER

40

17K5

ELBOW W/Ref. 17 - flat boss face

40

17KB0606

FITTING tapered boss face - W/Ref. 17 - Was 17KV00005B - A

40

97K6

O RING flared end

41

TEE NLA - W/Ref. 17 - W/O flared end O-rings - Was 6587889 - A

41

6805243

TEE W/Ref. 17 - W/flared end O-rings

41

97K6

O RING flared end

42

6661076

HOSE

43

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527

44

18K5

ELBOW W/Ref. 17

45

HOSE NLA - 13.5'' (342,9 mm) long - Order 6730769 Hose - Was 6712414 - A

45

6730769

HOSE 14.5'' (368,3 mm) long

46

6578327

HOSE

47

6715251

HOSE Was 6648636 - D

48

6716473

ADAPTER W/Ref. 17 - tapered boss face

48

97K6

O RING flared end

49

6719211

TUBE

50

87F5

FITTING Was 87FN00005B - A
