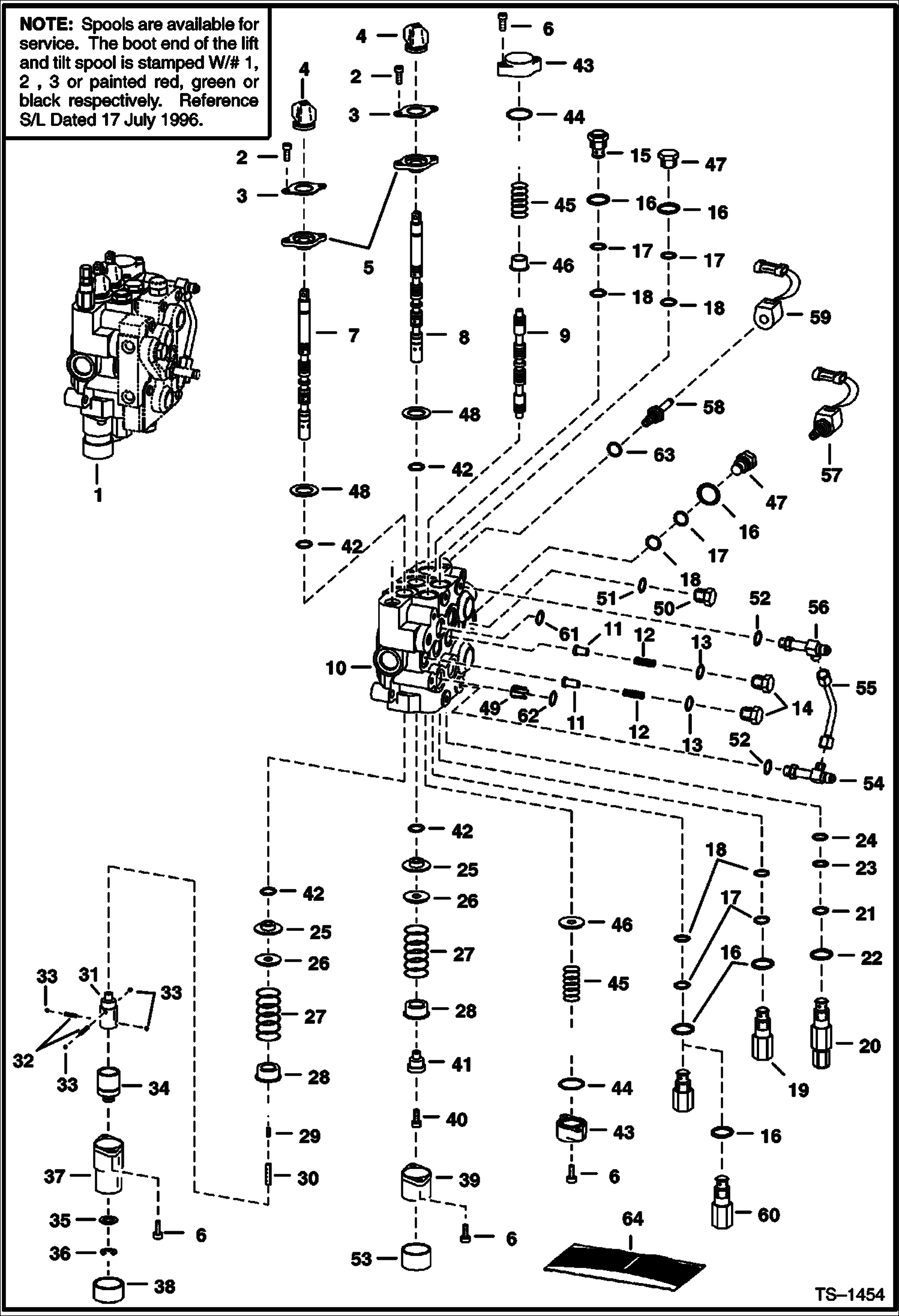

Запчасти Bobcat 700s HYDRAULIC CONTROL VALVE (W/BICS Valve) HYDRAULIC SYSTEM

1

VALVE ASSY. See Illustration HYDRAULIC CONTROL VALVE/ B17197 NLA - BICS COMBO - REF. 2 - 58 - W/FITTINGS - ORDER 6808046 SERVICE VALVE - WAS 6628394 - A

1

6628571

VALVE ASSY See Illustration BICS CONTROL VALVE/ TS1365

2

29G412

BOLT

3

6589564

RETAINER

4

6587763

BOOT

5

6589565

BUSHING seal

6

29G416

BOLT 1 in. long

7

6666588

SPOOL lift - # 1 or Red - SEE NOTE

7

6666589

SPOOL lift - # 2 or Green-SEE NOTE

7

6666590

SPOOL lift - # 3 or Black - SEE NOTE

8

6666591

SPOOL tilt - # 1 or Red - SEE NOTE

8

6666592

SPOOL tilt - # 2 or Green - SEE NOTE

8

6666593

SPOOL tilt - # 3 or Black - SEE NOTE

9

6588074

SPOOL auxiliary - SEE NOTE

10

BODY NSS

11

6592115

SEAT load check

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

6667549

VALVE anti-cavity check - W/Ref. 16-18

16

79K10

O RING 10

17

80K14

BACK-UP WASHER Was 73K000014B - B

18

58K014

O-RING 10 back-up washer required

18

6677106

O-RING back-up washer not required

19

6599161

RELIEF VALVE port relief - W/Ref. 16-18

20

VALVE NLA - main relief - W/Ref. 21-24 - Pressure Preset at Factory - Was 6676196 - A

20

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

21

58K017

O-RING 10

22

6665569

WASHER back-up

23

25K20016

O RING 10

24

6665570

RING glide

25

6595663

BUSHING

26

7211397

WASHER, SPRING Was 6587523 - A

27

6587580

SPRING

28

6592100

COLLAR

29

6596807

PLUG plastic - 0.46'' long

30

6586918

SCREW

31

6587575

ADAPTER

32

6592107

SPRING

33

6592105

BALL

34

6531270

SLEEVE, DETENT

35

6592098

WASHER

36

799119

RING

37

6589226

COVER, END 0.63'' flange

38

6660644

CAP

39

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

40

30G416

BOLT

41

6592109

ADAPTER

42

6683274

SEAL, SPOOL 10 spool - Was 6665846 - A

43

6588981

END CAP .625 in. thick

44

58K124

O RING 10

45

6588197

SPRING

46

6537096

WASHER

47

6592720

PLUG W/Ref. 16-18

48

1K127

O-RING 10 Was 93K127 - A

49

6534630

RESTRICTOR .134/.141

50

24K8

PLUG flat boss face - W/Ref. 51

50

24K8

PLUG tapered boss face - W/Ref. 51 - Was 24KN00008B - A

50

90K8

PLUG socket head - tapered boss face - W/Ref. 51 - Was 90KV00008B - A

51

79K12

O RING 10 flat boss face

51

99K12

O RING tapered boss face

51

95K12

O-RING socket head - tapered boss face

52

79K6

O RING 10 flat boss face

52

99K6

O RING tapered boss face

53

6662848

CAP

54

TEE NLA - W/Ref. 52 - W/O flared end O-ring - Was 6587888 - A

54

6805696

TEE W/Ref. 52 - W/flared end O-ring

54

97K6

O RING flared end

55

6577690

TUBE

56

CONNECTOR NLA - W/Ref. 52 - flat boss face - W/O flared end O-ring - Was 6588188 - A

56

CONNECTOR NLA - W/Ref. 52 - tapered boss face - W/flared end O-ring - Was 6715654 - A

56

6817553

CROSS W/Ref. 52 - flat boss face - W/flared end O-ring - Was 6805241 - A

56

97K6

O RING flared end

57

6653395

VALVE, SOLENOID solenoid - W/Ref. 58 & 59

57

6534559

SEAL KIT

58

6665758

VALVE W/Ref. 63

59

6717708

COIL, 14 VOLT 14 volt - W/ Nut - Was 6665759 - A

60

6664373

VALVE optional - port relief & anti-cav. - W/Ref. 16 - 2500 PSI - use in tilt cylinder base end port

61

55K204

O RING 10

62

55K212

O RING 10

63

79K7

O RING 10

64

6816250

KIT, SEAL one spool - Ref. 2, 4, 6, 29, 42 & 48 - Was 6803605 - A

64

6816253

KIT, SEAL complete - Ref. 2, 4, 6, 13, 16-18, 21-24, 42, 44, 48, 51, 52, 61 & 62 - also Order 6816250 seal kit - Was 6809448 - A

64

6632279

KIT, SEAL Ref. 21-24

64

6809425

SEAL KIT Ref. 13 & 16-18 - Was 6586461 - A
