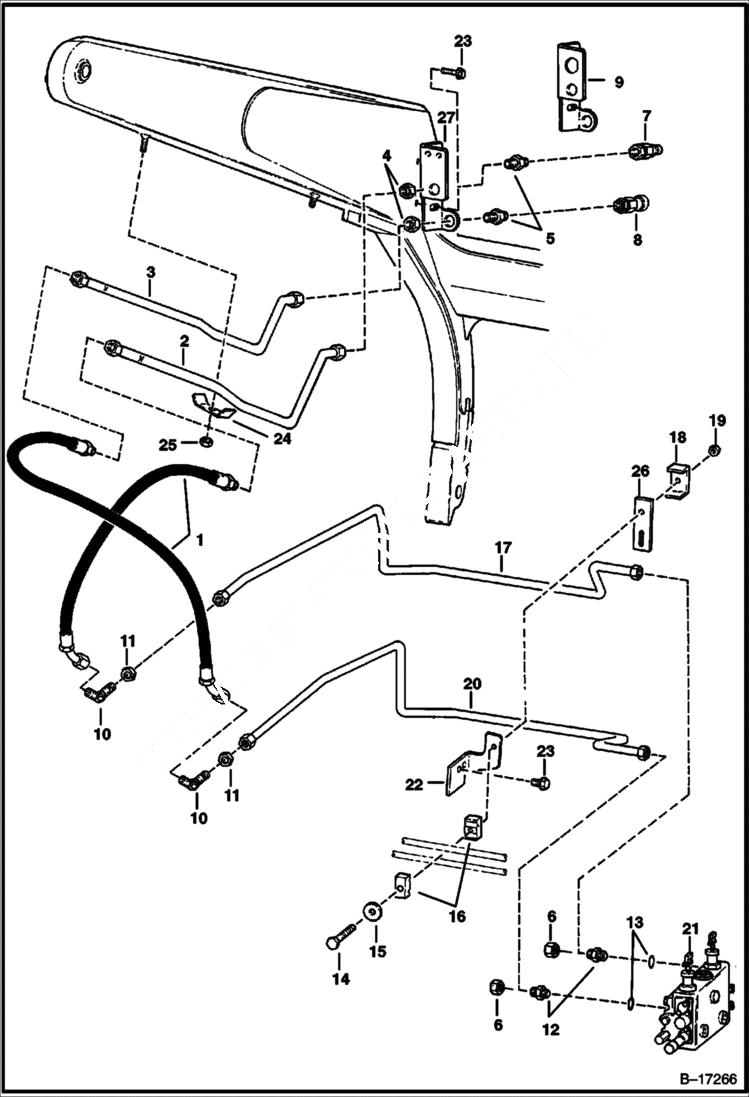

Запчасти Bobcat 700s AUXILIARY HYDRAULICS HYDRAULIC SYSTEM

1

6729153

HOSE Was 6714577 - A

2

6711735

TUBE

3

6711736

TUBE

4

86F7

LOCK NUT

5

6711625

FITTING flat boss face - W/Ref. 13

5

CONNECTOR NLA - flat boss face - Was 6715185 - A

5

97K10

O-RING 10 flared end

5

6812816

ADAPTER flat boss face - W/Ref. 13

6

36K8

CAP

7

6674688

COUPLER, FF MALE straight - Was 6667808 - A

7

6679841

SEAL Was 6672026 - A

8

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

9

MOUNT NLA - for FF couplers - Order Ref. 27 - Was 6711672 - A

10

46K8

ELBOW flat boss face

10

ELBOW NLA - tapered boss face - Was 46KN-8 - A

10

97K12

O'RING flared end

10

46K8

ELBOW flat boss face

11

86F8

NUT 5

12

15K8

FITTING flat boss face - W/Ref. 13

12

15KB1212

FITTING, HYD CONNECTOR tapered boss face - W/Ref. 13 - Was 15KN00008B - A

12

97K12

O'RING flared end

12

15KB1212

FITTING, HYD CONNECTOR flat boss face - W/Ref. 13

13

79K12

O RING 10 flat boss face

13

99K12

O RING tapered boss face

14

17C552

BOLT

15

872229

WASHER

16

6701892

CLAMP

17

6713754

TUBE

18

6568476

CLAMP

19

85D5

NUT 5

20

6713755

TUBE

21

VALVE See Illustration HYDRAULIC CONTROL VALVE/ TS1454

22

6704619

MOUNT

23

84G3112

BOLT 5

24

6502203

CLAMP

25

59D6

NUT

26

6702548

PAD

27

6713850

MOUNT
