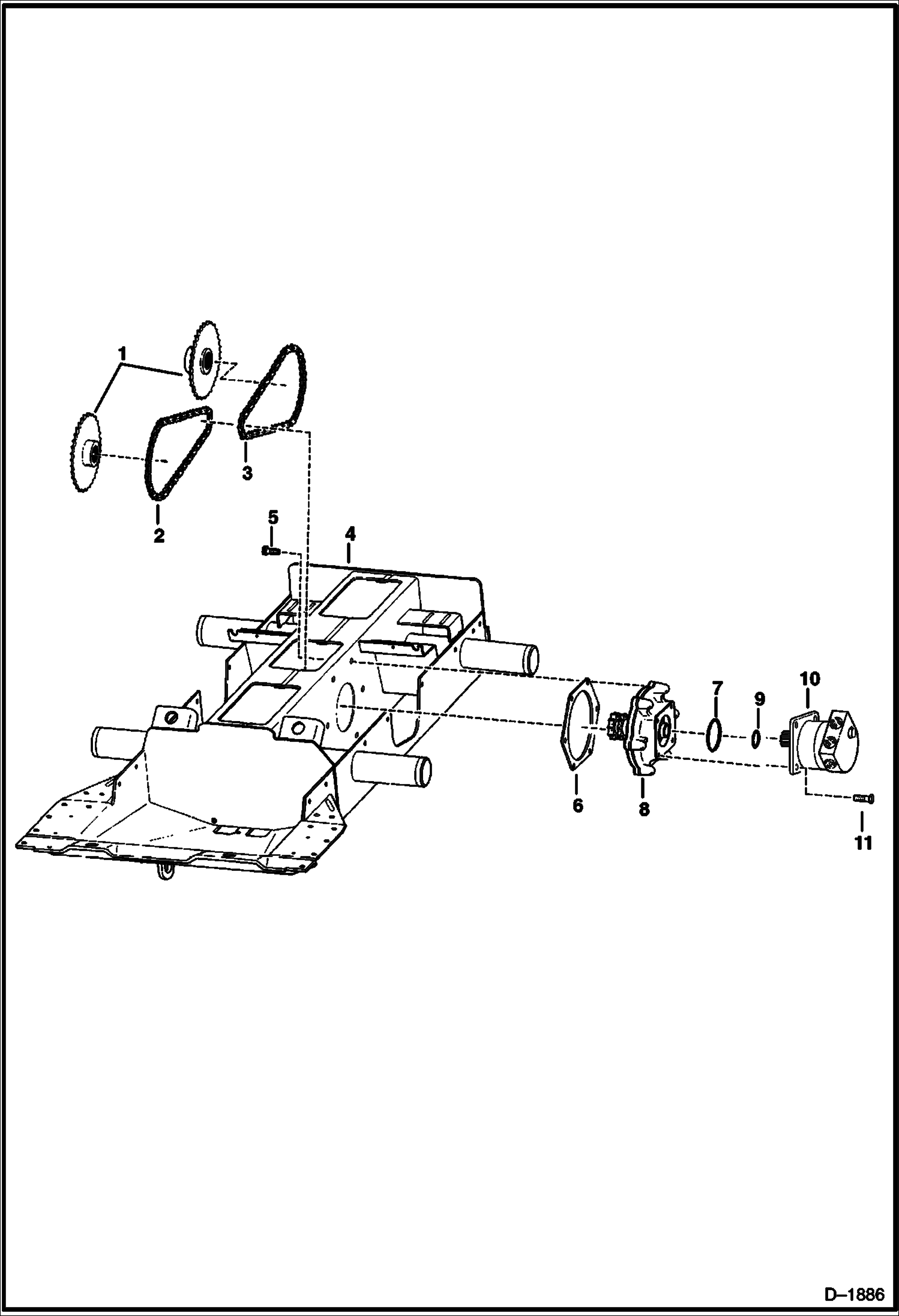

Запчасти Bobcat 700s DRIVE TRAIN DRIVE TRAIN

1

7134137

SPROCKET Was 6577204 - A

2

CHAIN NLA - 58 pitch - hour glass shape link - Was 6579126 - A

2

CHAIN NLA - 58 pitch - oval shape link - Was 6731219 - A

2

6689649

CHAIN, DRIVE 58 pitch - hour glass shape link - Tsubaki

2

6510171

LINK conn. - hour glass shape - Diamond

2

6675332

LINK conn. - oval shape - Diamond

2

6690709

LINK conn. - hour glass shape - Tsubaki

3

CHAIN NLA - 62 pitch - hour glass shape link - Diamond - Was 6579127 - A

3

CHAIN NLA - 62 pitch - oval shape link - Diamond - Was 6731218 - A

3

6689651

CHAIN, DRIVEX 62 pitch - hour glass shape link - Tsubaki

3

6510171

LINK conn. - hour glass shape - Diamond

3

6675332

LINK conn. - oval shape - Diamond

3

6690709

LINK conn. - hour glass shape - Tsubaki

4

6712827

CHAINCASE Was NLA - A

5

35C1032

BOLT

6

6704878

GASKET install W/Rib toward chaincase

7

25K30508

O-RING, 10

8

6705287

MOUNT ASSY. See Illustration MOTOR CARRIER/ MC1937 DRIVE MOTOR

9

25K30202

O RING 10 supplied W/motor

10

MOTOR See Illustration HYDROSTATIC MOTOR/ C3431 W/Ref. 9

11

93G824

BOLT Was 73G824 - A
