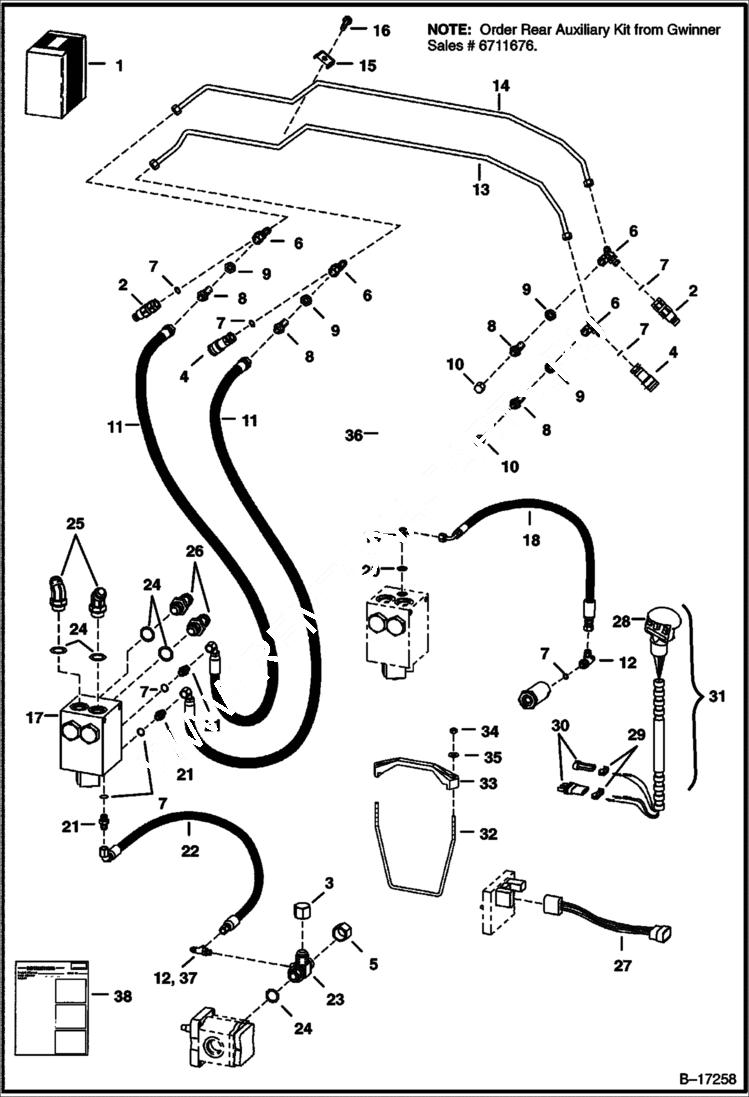

Запчасти Bobcat 700s REAR AUXILIARY (W/Pressure Relief Features & FF Couplers) ACCESSORIES & OPTIONS

1

6711676

KIT Ref. 2-38 - SEE NOTE - Was SALES - A

2

6667804

COUPLER, FF MALE

2

6669657

SEAL KIT

3

36K8

CAP Use W/hyd. muffler

4

6667803

COUPLER, FF FEMALE

5

36K8

CAP Use W/O hyd. muffler

6

6706220

TEE W/Ref. 7 - Check boss face for correct O-ring

7

79K6

O RING 10 Flat boss face

7

99K6

O RING Tapered boss face

8

51E0404

ADAPTER

9

61E04

NUT

10

63E04

CAP

11

6706089

HOSE

12

21K5

TEE W/Ref. 7 - Flat boss face

12

TEE NLA - W/Ref. 7 - tapered boss face - Was 21KV-5 - A

12

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 7 - flat boss face

13

6705358

TUBE

14

6705357

TUBE

15

6500989

CLAMP

16

84G3716

SCREW 5

17

VALVE See Illustration REAR AUXILIARY VALVE/ TS1362

18

6711681

HOSE

19

17K3

ELBOW W/Ref. 20 - Flat boss face

19

ELBOW NLA - W/Ref. 20 - tapered boss face - Was 17KV-3 - A

19

97K4

O'RING flared end

19

17KB0404

FTG HYD ELBOW 90 W/Ref. 20 - flat boss face

20

79K4

O RING 10 flat boss face

20

99K4

O'RING tapered boss face

21

15K5

FITTING W/Ref. 7 - flat boss face

21

ADAPTER NLA - W/Ref. 7 - tapered boss face - Was 15KV-5 - A

21

97K6

O RING Flared end

21

15KB0606

FITTING, HYD CONNECTOR W/Ref. 7 - flat boss face

22

6702962

HOSE

23

6707103

CONNECTOR W/Ref. 24

24

79K12

O RING 10 Flat boss face

24

99K12

O RING Tapered boss face

25

18K8

FTG W/Ref. 24 - flat boss face

25

ELBOW NLA - W/Ref. 24 - tapered boss face - Was 18KV-8 - A

25

97K12

O'RING flared end

25

18KB1212

FITTING, HYD ELBOW W/Ref. 24 - Flat boss face

26

45K8

ADAPTOR W/Ref. 24 - W/O O-rings

26

ADAPTER NLA - W/Ref. 24 - W/Orings - Was 45KN-8 - A

26

97K12

O'RING flared end

27

6704114

HARNESS

28

6680414

HANDLE ASSY. two-switch - for L.H. steering lever - Was 6705921 - A

29

6641180

LOCK Use W/ 2-pin connector

29

6640700

LOCK 3-pin

30

6641179

CONNECTOR 2-pin

30

6640699

CONNECTOR 3-pin

31

6706566

KIT two-switch - Ref. 28-30

32

6712640

BRACKET

33

6569203

CLAMP

34

59D5

NUT 5

35

25E15

WASHER

36

6710435

HARNESS

37

15K3

CONNECTOR W/Ref. 20 - flat boss face - W/BICS combo valve

37

97K4

O'RING flared end

37

ADAPTER NLA - W/Ref. 20 - Tapered boss face - W/BICS combo valve - Was 15KN-3 - A

37

15KB0404

FTG HYD S Connector W/Ref. 20 (79K4 O-ring)

38

6724487

INSTRUCTIONS
