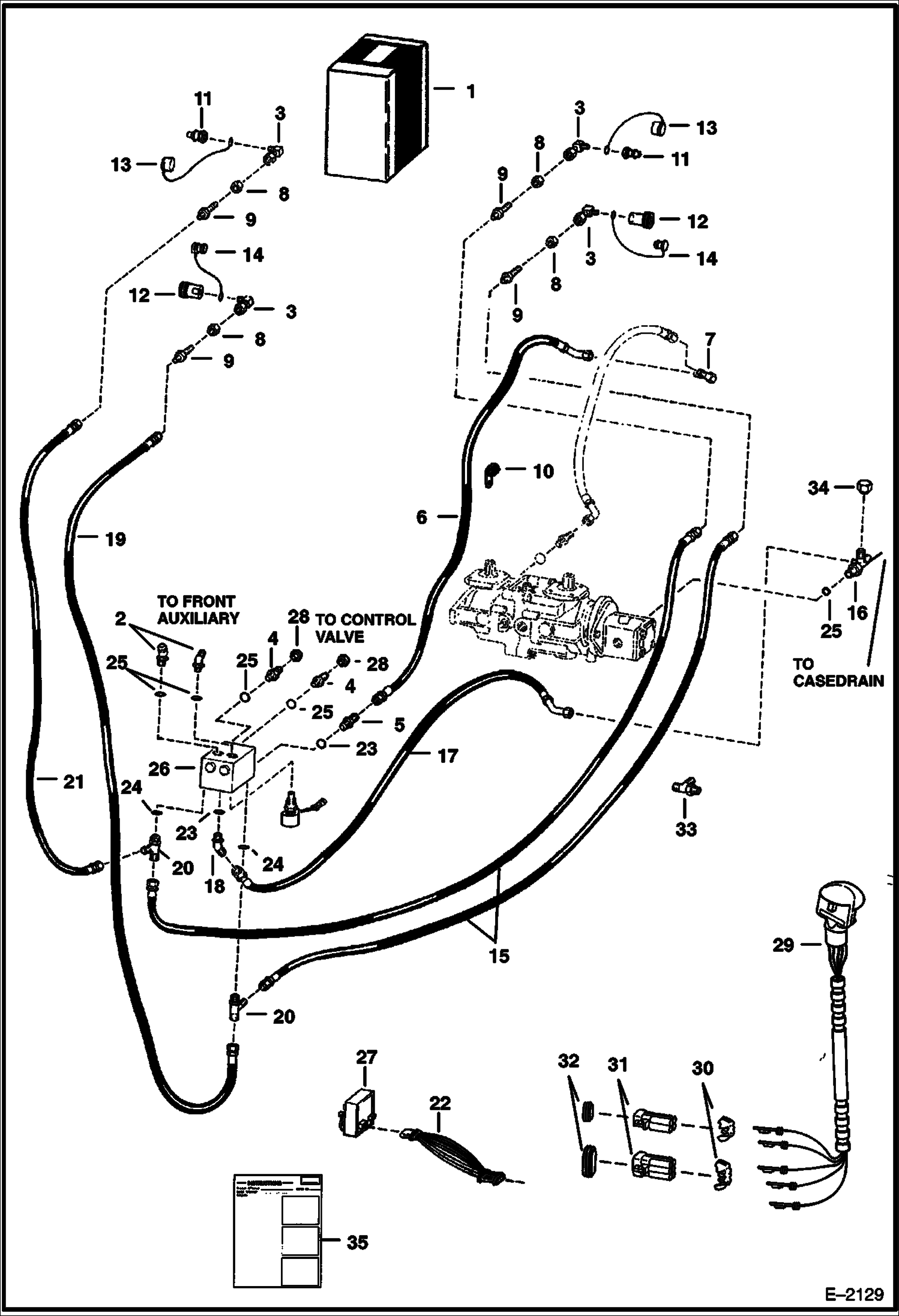

Запчасти Bobcat 700s REAR AUXILIARY (W/Poppet Couplers) ACCESSORIES & OPTIONS

1

KIT SALES - Ref. 2-26 & 29

2

18K8

FTG W/Ref. 25

3

6703827

ELBOW Use W/Connect Under Pressure Couplers

3

1631632

ELBOW

4

45K8

ADAPTOR

5

15K3

CONNECTOR W/Ref. 25

6

6704727

HOSE

7

13K5

TEE

8

86F5

NUT

9

45K5

FITTING

10

31H34

CLIP Was 30H000034B

11

QUICK COUPLER NLA - male -Connect Under Pressure - Was 6657037 - A

11

2341398

COUPLER male

12

QUICK COUPLER NLA - female -Connect Under Pressure - Was 6657038 - A

12

2342026

COUPLING female

13

1513549

CAP

14

1519324

PLUG

15

6578174

HOSE

16

6707103

CONNECTOR W/Ref. 25 - Was 6704693 - A

17

6578185

HOSE

18

18K3

ELBOW W/Ref. 23

19

6618194

HOSE

20

21K5

TEE W/Ref. 24

21

6578173

HOSE

22

6704114

HARNESS

23

79K4

O RING 10

24

79K6

O RING 10

25

79K12

O RING 10

26

VALVE See Illustration REAR AUXILIARY VALVE/ B12959

27

MODULE See Illustration CONTROLS ELECTRICAL/ D2296 NOT IN KIT

28

86F8

NUT 5 Not in Kit

29

6680414

HANDLE ASSY. R.H. - Also Order Ref. 30-32 - Was 6705921 - A

29

6640690

PIN

29

6641176

SEAL

30

6641180

LOCK Use W/ 2-pin connector

30

6640700

LOCK 3-pin

31

6641179

CONNECTOR 2-pin

31

6640699

CONNECTOR 3-pin

32

6649683

SEAL For Use W/2 - pin connector

32

6659553

SEAL For Use W/3 - pin connector

33

21K3

CONNECTOR

34

36K8

CAP

35

6720951

INSTRUCTIONS
