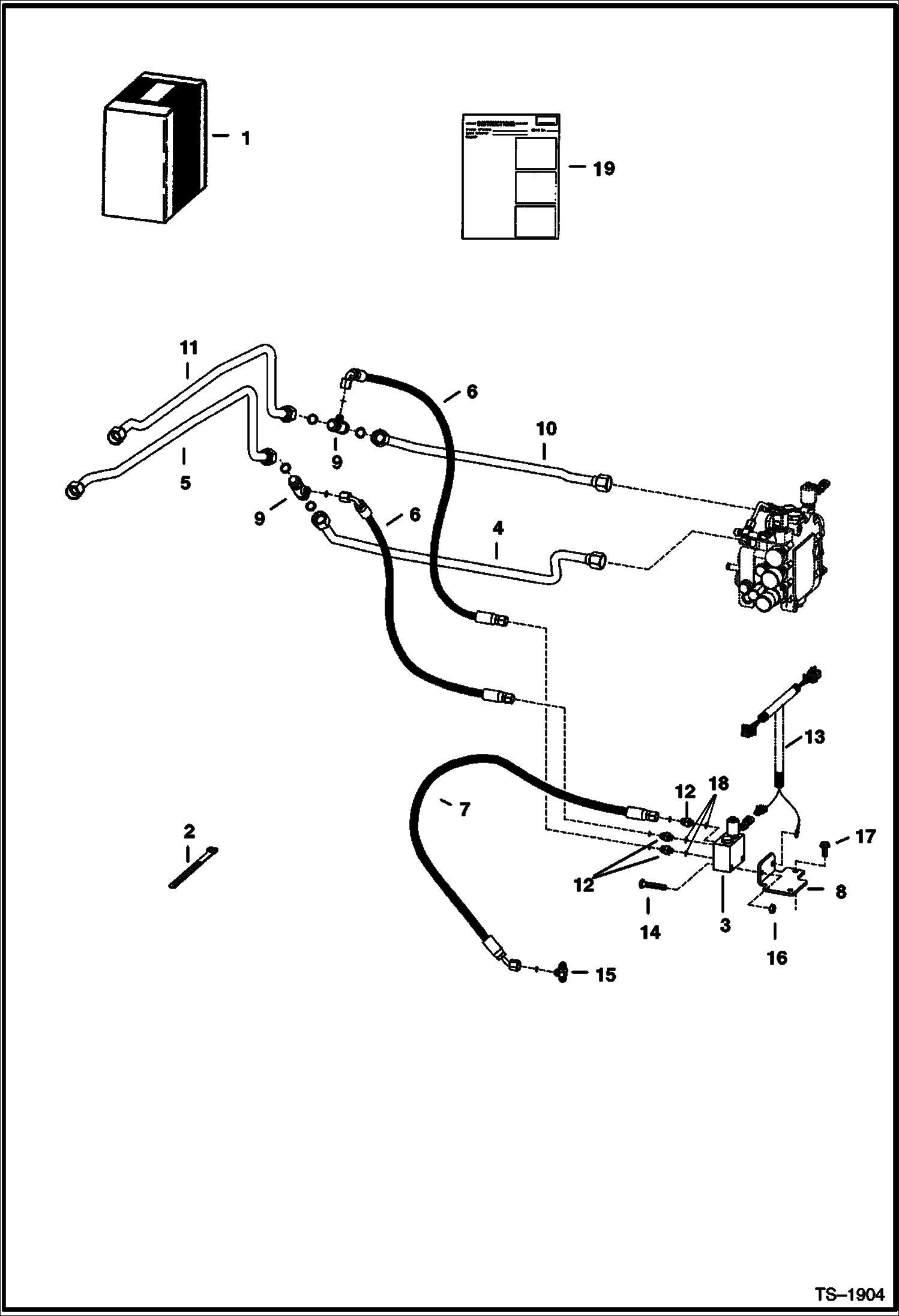

Запчасти Bobcat 700s FRONT AUXILIARY PRESSURE RELEASE KIT ACCESSORIES & OPTIONS

1

6718240

KIT front aux. press. release - Ref. 2 - 18

2

6610510

TIE

3

VALVE See Illustration PRESSURE RELEASE VALVE/ PE1017 NLA - W/.4375 IN. THREADED PARTS - ORDER 6678150 VALVE & (3) OF REF. 12 (15KV-5 ADAPTER) - WAS 6674372 - A

3

6678150

VALVE See Illustration PRESSURE RELEASE VALVE/ PE1017 W/.5625 IN. THREADED PARTS

4

6717915

TUBE

5

6717916

TUBE

6

6717919

HOSE

7

6717921

HOSE

8

6717922

BRACKET

9

6717923

TEE

10

6717917

TUBE

11

6717918

TUBE

12

ADAPTER NLA - Use W/Ref. 3 (NLA/6674372 Valve) - W/Ref. 18 (Flat boss face)- Was 6718109 - A

12

15KB0604

FTG HYD S CONNECTOR W/Ref. 18 - flat boss face

12

ADAPTOR NLA - Use W/Ref. 3 (6678150 valve) - W/Ref. 18 - tapered boss face - Was 15KV00005B - A

12

97K6

O RING

12

15KB0606

FITTING, HYD CONNECTOR Use W/Ref. 3 (6678150 valve) - W/Ref. 18 - flat boss face

13

6718111

HARNESS

14

17C636

BOLT

15

21KB0606

FTG HYD STRAIGHT TEE Was 21KN00005B - A

16

61D6

NUT 5

17

84G3716

SCREW 5

18

79K4

O RING 10 Flat boss face

18

99K6

O RING Tapered boss face

19

6900841

INSTRUCTIONS
