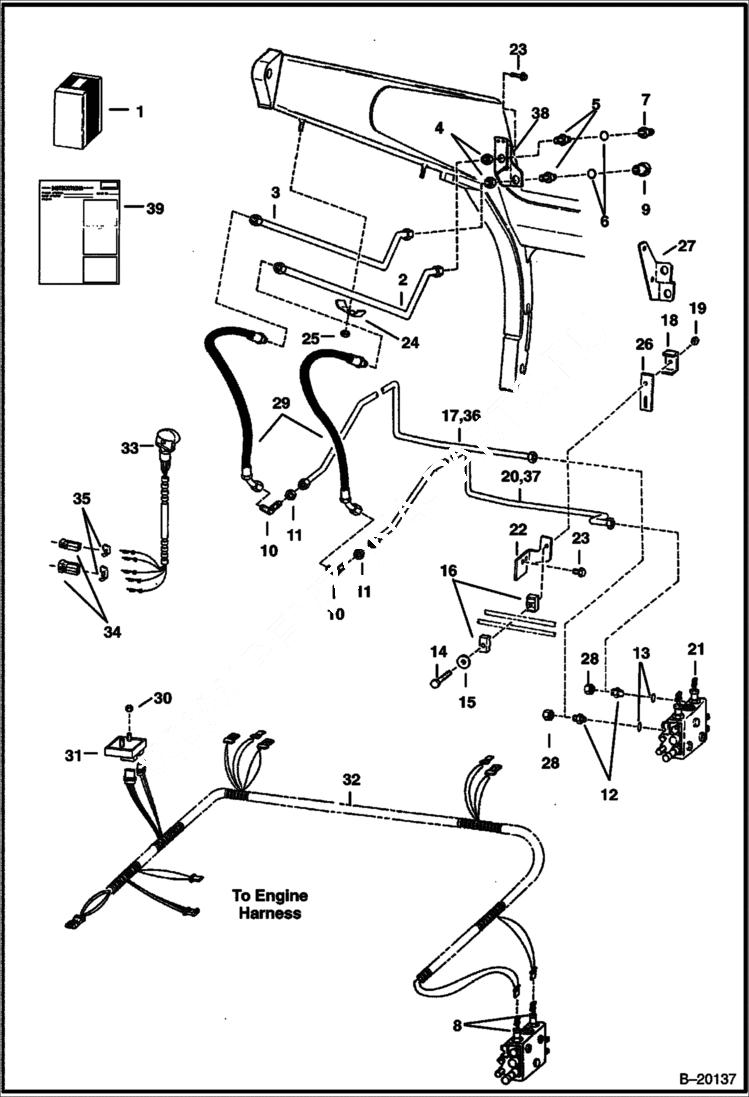

Запчасти Bobcat 700s FRONT AUXILIARY KIT (W/Flush Face Couplers) (5147 12462-12999, 5149 11210-11452) ACCESSORIES & OPTIONS

1

KIT See Illustration FRONT AUXILIARY KIT/ B20090 NLA - FRONT AUX REF. 2-7, 9-11, 13, 14, 18, 20 & 24-37 - ORDER 6712387 KIT - WAS 6712093 - A

2

6711735

TUBE

3

6711736

TUBE

4

86F7

LOCK NUT

5

ADAPTER NLA - W/Ref. 6 - Tapered Boss Face - Was 6711625 - A

5

6812816

ADAPTER W/Ref. 6 - Flat Boss Face

6

79K12

O RING 10 Was 79K000010B - D

7

6674688

COUPLER, FF MALE straight - Was 6667808 - A

7

6679841

SEAL Was 6672026 - A

8

6665797

COIL not in kit

9

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

10

46K8

ELBOW

11

86F8

NUT 5

12

15K8

FITTING W/Ref. 13 - not in kit

13

79K12

O RING 10

14

17C552

BOLT

15

872229

WASHER

16

6592506

CLAMP

17

TUBE NLA - Order Ref. 36 & 37 - Was 6710575 - A

18

6568476

CLAMP

19

85D5

NUT 5 not in kit

20

TUBE NLA - Order Ref. 36 & 37 - Was 6710579 - A

21

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B20046 NOT IN KIT

22

6704619

MOUNT not in kit

23

84G3112

BOLT 5 not in kit

24

6502203

CLAMP

25

59D6

NUT

26

6702548

PAD

27

MOUNT NLA - Order Ref. 38 - Was 6711672 - A

28

36K8

CAP

29

6729153

HOSE Was 6714577 - A

30

85D4

NUT 5

31

6671669

MODULE, CONTROL AUX Was 6669529 - C

32

6710365

HARNESS

33

6680414

HANDLE ASSY. Was 6705921 - A

33

6640690

PIN

33

6641176

SEAL

34

6641179

CONNECTOR 2-pin

34

6640699

CONNECTOR 3-pin

35

6641180

LOCK Use W/ 2-pin connector

35

6640700

LOCK 3-pin

36

6713754

TUBE

37

6713755

TUBE

38

6713850

MOUNT

39

6724529

INSTRUCTIONS Was 6724525 - A
