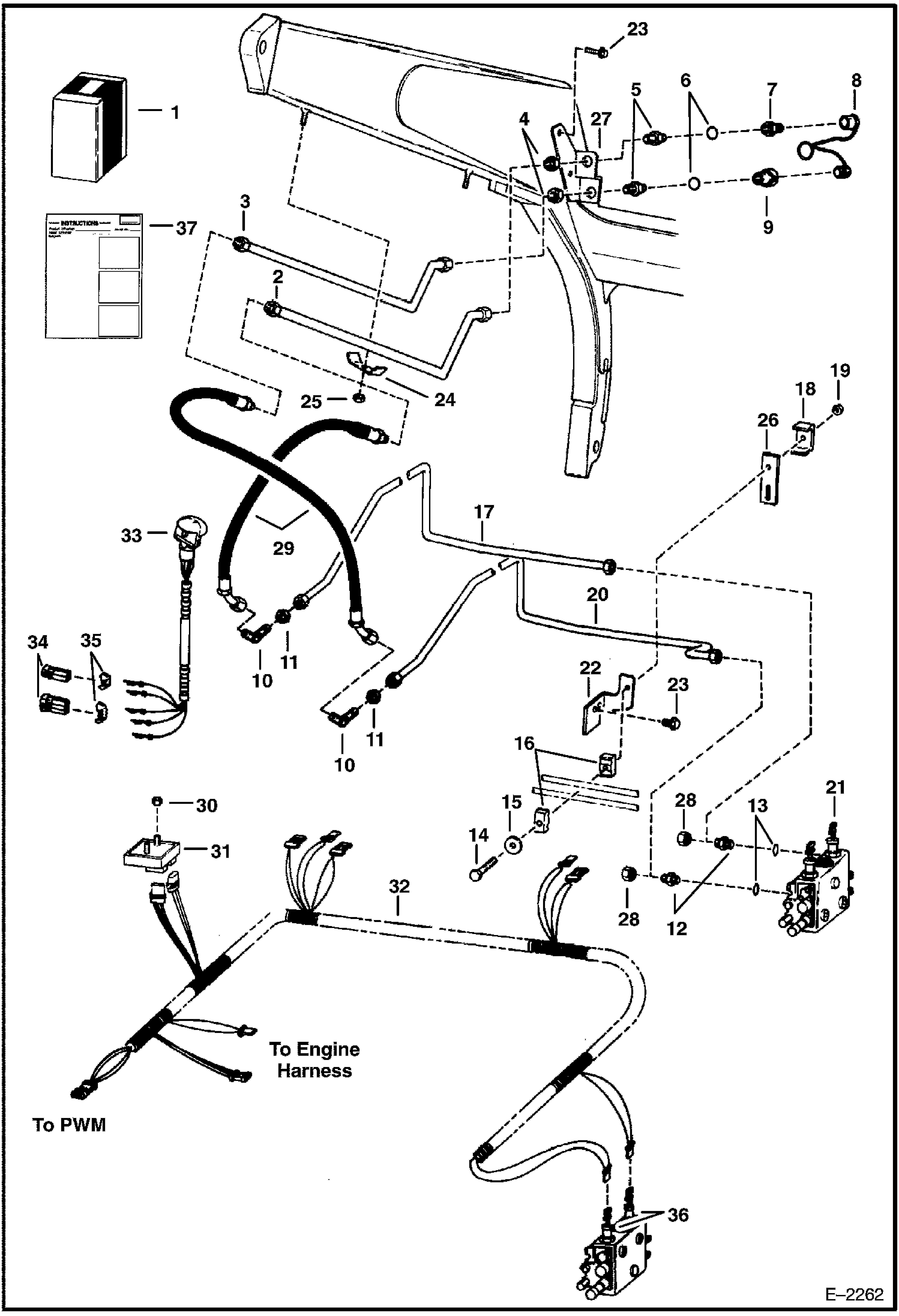

Запчасти Bobcat 700s FRONT AUXILIARY KIT (W/Poppet Couplers) (S/N 5147 12461 & Bel, 5149 11209 & Bel) ACCESSORIES & OPTIONS

1

KIT NLA - front aux Ref. 2-11, 13, 14, 18, 20 & 24-37 - Was 6709053 - A

2

6704409

TUBE

3

6704410

TUBE

4

86F7

LOCK NUT

5

45K7

CONNECTR W/Ref. 6

6

79K10

O RING 10

7

6598757

COUPLER, POPPET MALE straight

8

6513709

CAP PLUG Assy. - Rubber

8

6515167

PLUG Steel

8

6515168

CAP Steel

9

6598758

COUPLER, POPPET FEMALE straight

9

48K16

O RING 10

9

6665430

BACKUP RING

10

46K8

ELBOW

11

86F8

NUT 5

12

15K8

FITTING W/Ref. 13 - not in kit

13

79K12

O RING 10

14

17C552

BOLT

15

872229

WASHER not in kit

16

6701892

CLAMP not in kit

17

6706154

TUBE

18

6568476

CLAMP

19

85D5

NUT 5 not in kit

20

6706153

TUBE

21

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B20046 NOT IN KIT

22

6704619

MOUNT not in kit

23

84G3112

BOLT 5 not in kit

24

6502203

CLAMP

25

59D6

NUT

26

6702548

PAD

27

6705700

MOUNT

28

36K8

CAP

29

6729153

HOSE Was 6714577 - A

30

85D4

NUT 5

31

6671669

MODULE, CONTROL AUX Was 6669529 - C

32

6707676

HARNESS

33

6680414

HANDLE ASSY. Was 6705921

34

6641179

CONNECTOR 2-pin

34

6640699

CONNECTOR 3-pin

35

6641180

LOCK Use W/ 2-pin connector

35

6640700

LOCK 3-pin

36

6665797

COIL

37

6724529

INSTRUCTIONS Was 6724285 - A
