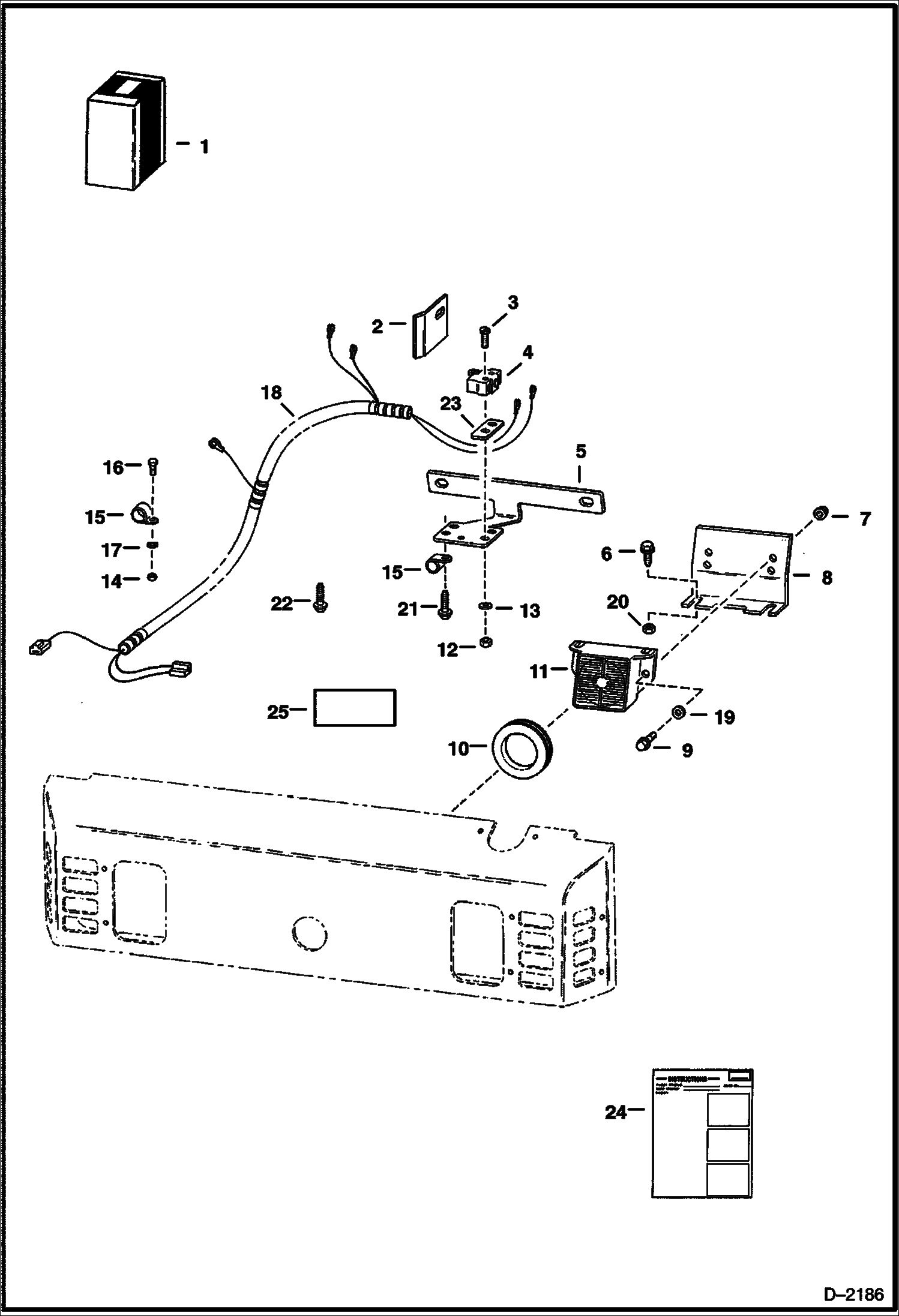

Запчасти Bobcat 700s BACK-UP ALARM ACCESSORIES & OPTIONS

1

6704442

KIT Ref. 2 - 24

2

BRACKET NLA - switch - 2.75'' (69,9 mm) wide - Order 7100153 mount & (2) of 6713793 bracket - Was 6578589 - A

2

BRACKET NLA - switch - for BICS loaders - 2'' (50,8 mm) wide - Order 7100153 mount & (2) of 6713793 bracket - Was 6710285 - A

3

85G616

SCREW 10 No longer in kit Use W/Ref. 12 & 13

3

59G616

SCREW 10

4

6646781

SWITCH alarm

5

MOUNT NLA - Use W/2.75 in. (69,9 mm) wide 6578589 brackets - Order 7100153 Mount & (2) of 6713793 Bracket- Was 6578788 - A

5

MOUNT NLA - Use W/2.00 in. (50,8 mm) wide 6710285 brackets - for BICS loader - Order 7100153 Mount & (2) of 6713793 Bracket - Was 6710284 - A

5

7100153

MOUNT

6

35C516

BOLT 10

7

83D4

NUT 10

8

6704163

MOUNT switch

9

17C410

BOLT 10

10

6577545

GROMMET

11

6651512

ALARM, BACK-UP Was 6599931 - A

11

6668879

DECAL

12

12D6

NUT 10 No longer in kit Use W/85G-616

13

17E6

WASHER 10 No longer in kit Use W/85G-616

14

61D4

NUT 5

15

30H21

CLAMP 10

16

17C412

BOLT 5

17

6E4

WASHER 10

18

6704358

HARNESS

19

25E13

WASHER 5

20

61D5

NUT

21

25G412

CAPSCRW10

22

84G3112

BOLT 5

23

6702593

SPACER

24

6722083

INSTRUCTIONS

25

6737189

DECAL, WARNING backup alarm
