GLOW PLUG & PREHEATING TIMER

Запчасти Bobcat 700s GLOW PLUG & PREHEATING TIMER POWER UNIT

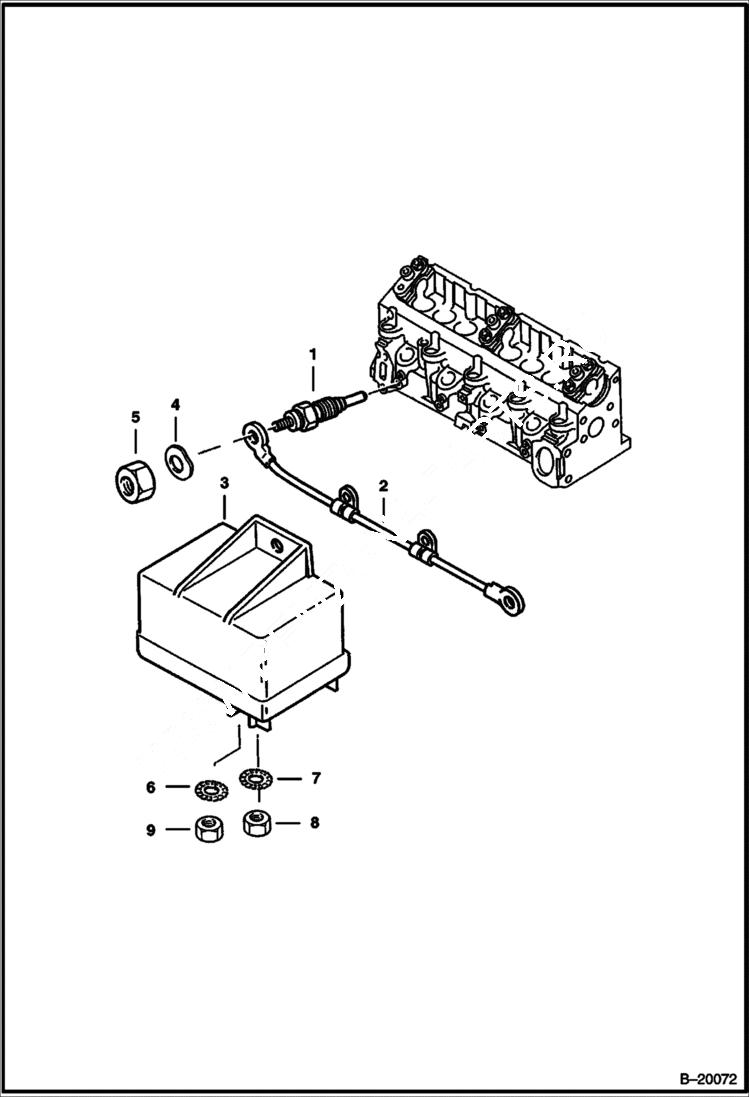

Схема запчастей Bobcat 700s - GLOW PLUG & PREHEATING TIMER POWER UNIT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6662425

GLOW PLUG Was 6667370 - A

2

6662426

CABLE Was 6667371 - A

3

RELAY, PREHEAT NLA - Was 6660510 - A

4

6662427

WASHER spring

5

6667373

NUT

6

6662421

WASHER

7

6662423

WASHER

8

6667374

NUT

9

6667373

NUT Was 6662422 - A
