ENGINE BRACKET

Запчасти Bobcat 700s ENGINE BRACKET POWER UNIT

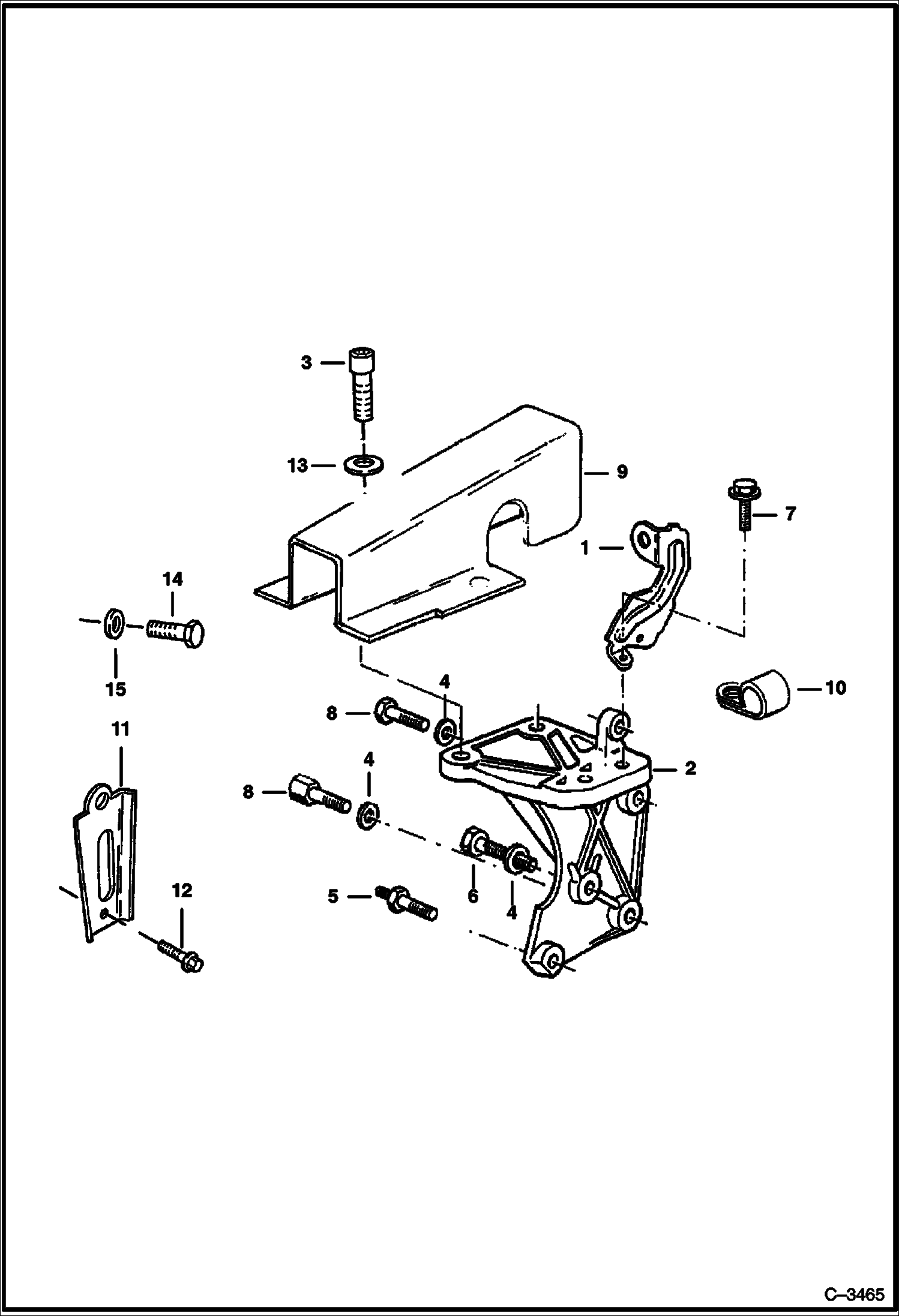

Схема запчастей Bobcat 700s - ENGINE BRACKET POWER UNIT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6670858

BRACKET Was 6667069 - A

2

BRACKET NLA - Was 6667070 - A

3

6670875

BOLT Was 1CM01020B - B

4

6662572

WASHER

5

6667072

BOLT

6

6667073

BOLT

7

6667074

BOLT

8

6667075

BOLT

9

6711700

SHIELD

10

31H27

CLIP

11

6670858

BRACKET

12

6670860

BOLT

13

6670876

WASHER

14

6667074

BOLT

15

6667059

WASHER WASHER
