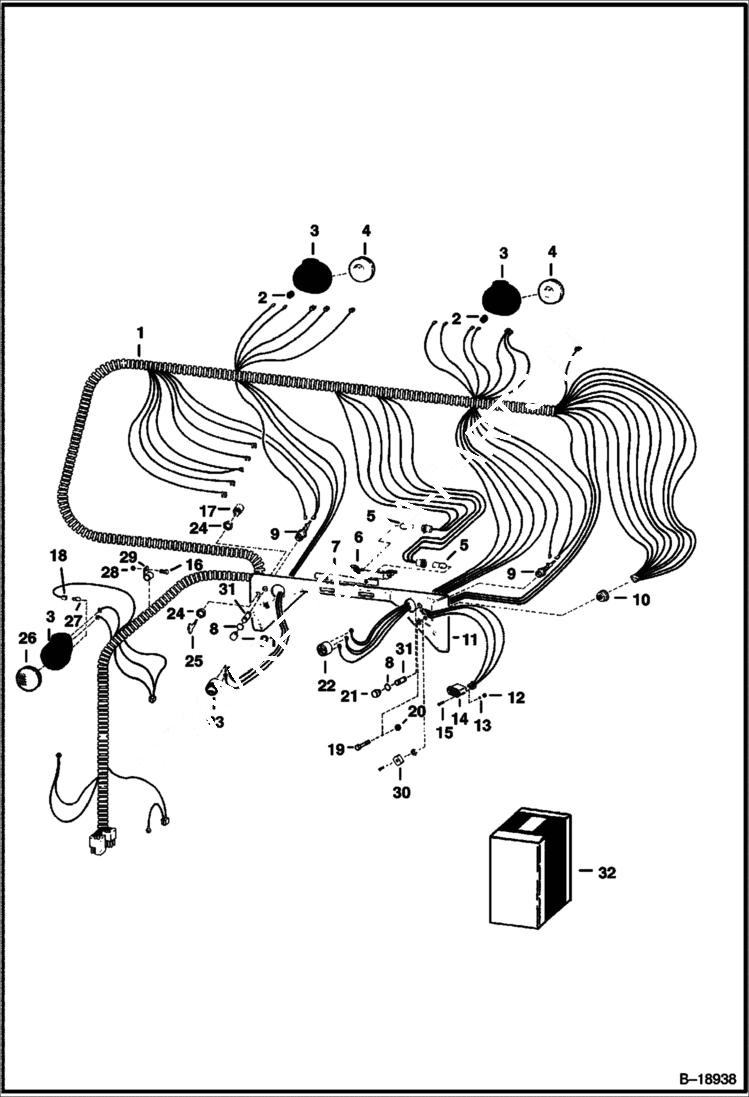

Запчасти Bobcat 700s CAB ELECTRICAL CIRCUITRY (S/N 14084 & Below) ELECTRICAL SYSTEM

1

6561500

HARNESS

2

6557493

GROMMET

3

6558142

HOUSING

4

6557486

LAMP

5

6513468

BULB

6

6558242

BRACKET

7

6560699

LENS

8

6514643

GASKET

9

6513469

HOLDER fuse

10

6512808

SWITCH

11

6560182

PANEL

12

12D6

NUT 10

13

12E6

WASHER

14

6664886

HOURMETER Was 6631657 - A

15

85G608

SCREW

16

10C512

BOLT Was 6553808 - A

17

SWITCH See BTI289 NLA - W/Ref. 25 - Order Ref. 32 - WAS 6519592 - A

17

6665606

SWITCH

18

6557504

SOCKET

19

17C572

BOLT

20

83D5

NUT 5

21

6514642

CAP

22

6634273

GAUGE, FUEL Was 6560353 - A

23

6659912

VOLTMETER Was 6560354

24

6598721

NUT For NLA/6519592 Switch - Was 6502904 - A

24

6674202

NUT For 6665606 Switch

25

6512809

KEY For 6519592

25

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

25

6693241

KEY 10 ignition - single key W/O ring

26

LAMP NLA - #4409 - Order 6563740 & 898731B

26

6563740

LAMP #4409x

27

960855

1003 BULB #1003 - Use only W/#4409 Lamp

27

898731

1156 BULB #1156 - Use only W/#4409x lamp

28

61D5

NUT

29

30H45

CLIP Was 30H000041B - B

30

6599781

KNOB light switch

31

1319451

FUSE 5

32

6724282

SWITCH KIT Ref. 17, 25
