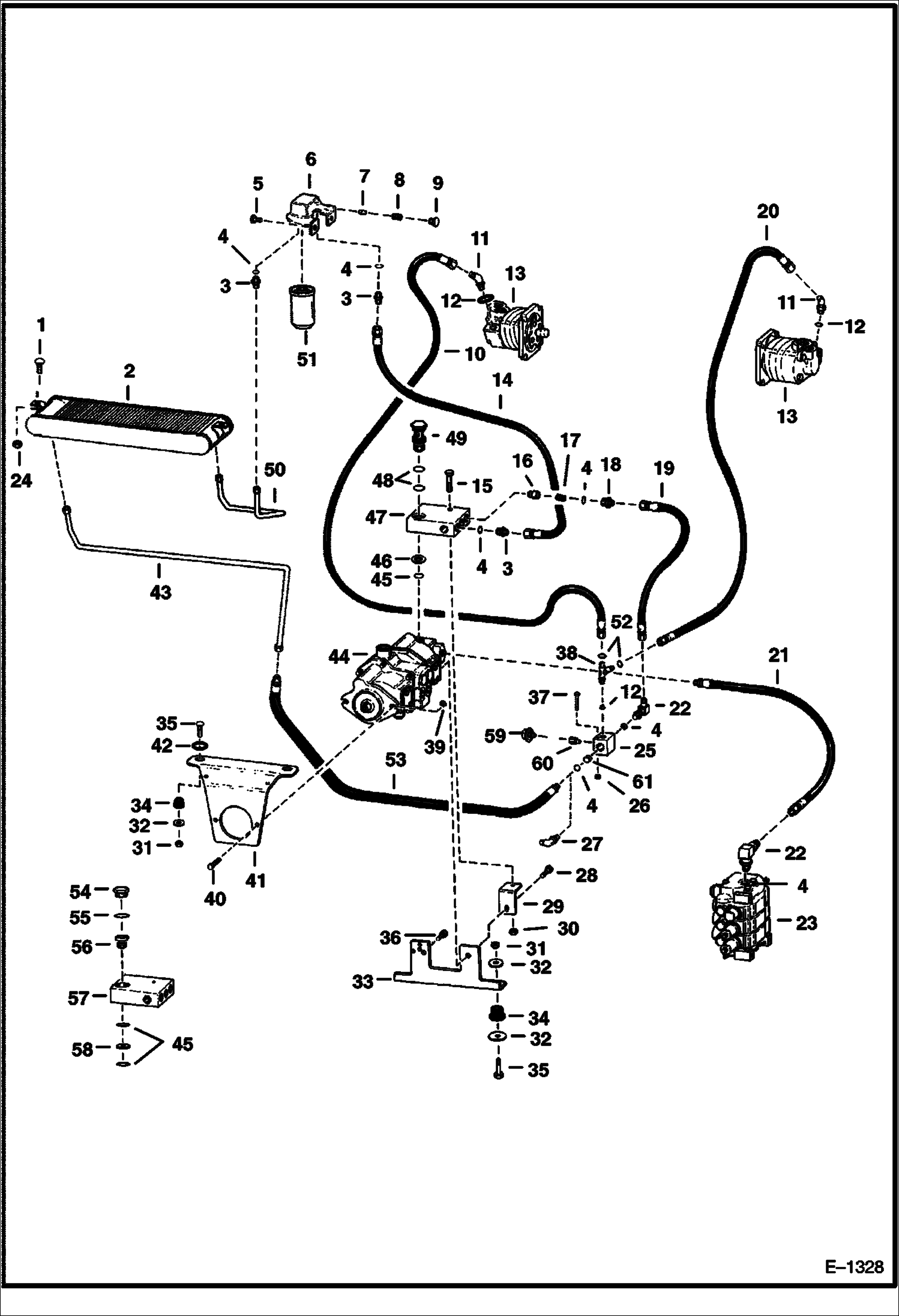

Запчасти Bobcat 700s HYDROSTATIC CIRCUITRY (S/N 14999 & Below) HYDROSTATIC SYSTEM

1

37C616

BOLT carriage - Was 6514537 - A

2

6560954

OIL COOLER

3

15K7

FITTING W/Ref. 4

4

79K10

O RING 10

5

84G3712

BOLT 5

6

FILTER HEAD NLA - Order 6564877 head and 6661248 filter - Was 6563339 - A

7

6515078

POPPET

8

6553897

SPRING

9

6561811

PLUG

10

1326228

HOSE

10

2337331

HOSE

11

18K5

ELBOW W/Ref. 12

12

79K6

O RING 10

13

MOTOR See Illustration HYDROSTATIC MOTOR/ D1443

14

1524780

HOSE

15

17C640

BOLT 5

16

6565620

POPPET

17

6562691

SPRING

18

6562656

ADAPTER W/Ref. 4

19

1317456

HOSE ASY

20

1530076

HOSE

20

1518597

HYD HOSE

21

6559198

HOSE

22

17K7

ELBOW W/Ref. 4

23

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B18933 See Illustration HYDRAULIC CONTROL VALVE/ B18926

24

83D6

NUT 5

25

6562692

BLOCK

25

6564373

BLOCK

26

85D4

NUT 5

27

18K7

FITTING W/Ref. 4 - Not Use W/Ref. 53

28

17C820

BOLT

29

6557724

BRACKET

30

61D6

NUT 5

31

85D8

NUT, 5

32

6564692

WASHER

33

6569553

BRACKET

34

6560633

DAMPENER shock

35

35C840

BOLT

36

17C816

BOLT

37

17C444

BOLT

38

21K5

TEE W/Ref. 12

39

83D8

NUT 5

40

17C824

BOLT 5

41

6562697

MOUNT

42

6560899

WASHER

43

TUBE NLA - Order 6563676 & 6563684

43

6563676

TUBE Use Ref. 53

44

PUMP See Illustration HYDROSTATIC PUMP/ D1392

45

79K16

O RING 10 Use W/Aluminum - Was 58K000127B - B

46

6562655

WASHER Use with Aluminum Block

47

6564032

BLOCK Aluminum

48

1K127

O-RING 10 Use W/aluminum block - Was 93K127 - A

49

6585546

BOLT hollow - Use W/Aluminum Block

50

TUBE NLA - Was 6561333 - A

51

6515541

ELEMENT filter

52

6563588

RESTRICTOR .154/.161 (3,91/4,08 mm)

53

6563684

HOSE

54

6553899

PLUG Use W/Steel Block

55

79K24

O RING 10 Use W/Steel Block

56

6560137

RETAINER hollow - Use W/Steel Block

57

BLOCK NLA - steel - Order Ref. 45-49

58

6557802

WASHER Use W/Steel Block

59

6631695

SWITCH hydrostatic oil pressure - Was 6519715 - A

59

6671062

SWITCH hydro. pressure - Was 6664577 - A

60

6564350

SNUBBER

60

6563922

SNUBBER Optional As Required - W/Filter

60

6563920

FILTER

61

6599764

RESTRICTOR .196/.205 (4,97/5,20 mm)
