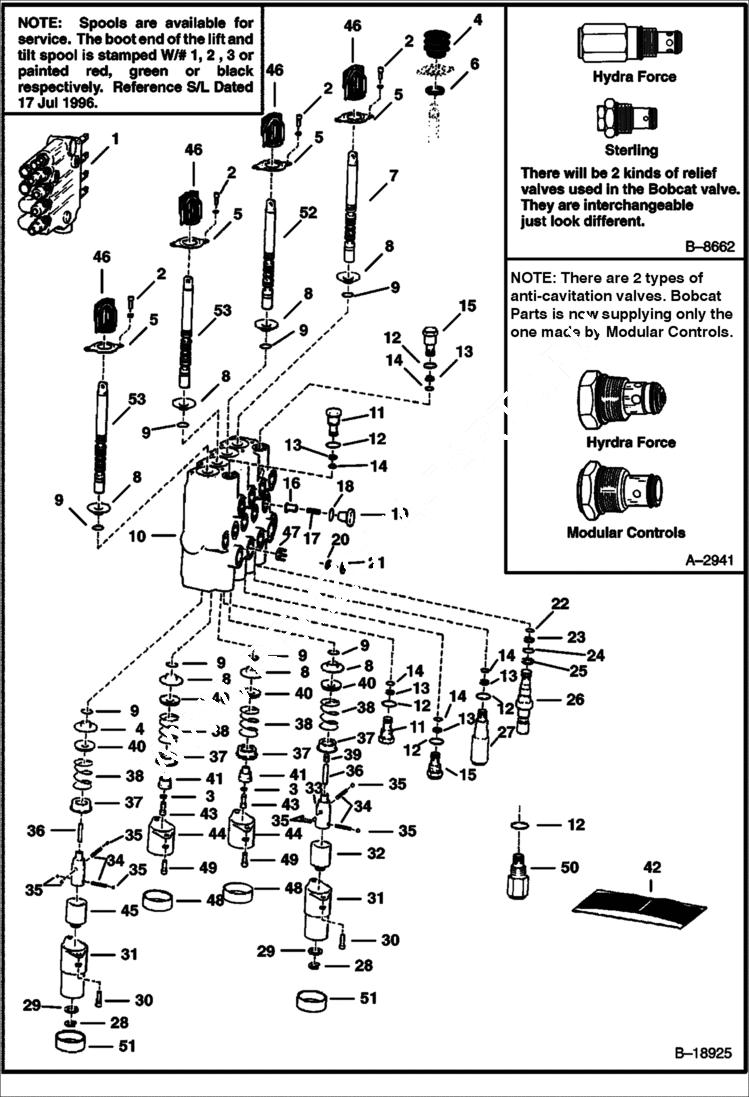

Запчасти Bobcat 700s HYDRAULIC CONTROL VALVE (S/N 15001 & Above) HYDRAULIC SYSTEM

1

VALVE NLA - Order components - Ref. 2-46 - Was 6539333 - A

1

SHORT BLOCK NLA - Ref. 2-10, & 38 - When ordering short block order 8 of Ref. 30 - See Service Letter dated 5 Jan. 87 - Was 6592740 - A

2

6588165

SCREW Was 73G-420 - B

3

22E4

WASHER

4

BOOT NLA - Order Ref. 44 - Was 6592122 - A

5

6592123

RETAINER

6

FILTER NLA - sintered - Ordered Ref. 44

7

6666582

SPOOL lift - #1 or red - SEE NOTE

7

6666583

SPOOL lift - #2 or green - SEE NOTE

7

6666584

SPOOL lift - #3 or black - SEE NOTE

8

6592103

BUSHING See Service Letter 5 Jan. 87

8

6538466

BUSHING W/Part # Stamped on face

9

6665089

SEAL See BTI374 lip seal - Was 6659554 - A

9

6646372

SEAL See BTI374 quad ring seal

10

6804529

VALVE, CONTROL SERVICE body

11

6592720

PLUG W/Ref. 12-14

12

79K10

O RING 10

13

80K14

BACK-UP WASHER Was 73K000014B - B

14

58K014

O-RING 10 back-up washer required - Was 25K20016 - B

14

6677106

O-RING back-up ring not required

15

6667549

VALVE anti-cavitation - W/Ref. 12-14 - See Note - Was 6661345 - A

16

6592115

SEAT

17

6592117

SPRING, LOAD CHECK

18

79K8

O RING 10

19

6592116

NUT load check

20

ORIFICE NLA - .123/.130 - .750 for old valve - Was 6592110 - A

21

6593680

RETAINER .750 for old valve

22

O-RING NSS

23

WASHER NSS - back-up

24

O-RING NSS

25

WASHER NSS - back-up

26

VALVE NLA - main - W/Ref. 22-25 - pressure preset at factory - Was 6676199 - A

26

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

27

6599161

RELIEF VALVE W/Ref. 12-14 - See Note

28

799119

RING

29

6592098

WASHER

30

6588163

SCREW 7/8'' - Was 69G000412B - B

30

29G416

BOLT 1''

31

BONNET NLA - W/.25'' Flange - Order 6589226 , 6660644 , 2 of 6588982

31

6589226

COVER, END 0.63'' flange

32

6592096

SLEEVE lift

33

6587575

ADAPTER Was 6592099 - A

34

6592107

SPRING

35

6592105

BALL

36

6586918

SCREW Was 6586819 - D

37

6592100

COLLAR

38

6587580

SPRING Was 6592106 - A

39

PLUG NLA - plastic - Order 6596807 Plug & 54K020002B Ring - Was 6592752 - A

39

6596807

PLUG plastic - 0.46'' long

39

54K20002

O'RING 10

40

7211397

WASHER, SPRING Was 6587523 - A

41

6592109

ADAPTER

42

6816251

KIT, SEAL See BTI374 - Ref. 9, 12-14, 18, 22-25, 39 & 46 - Was 6816717 - A

42

6816250

KIT, SEAL See BTI374 - Ref. 2, 9, 30, 39 & 46 - for one spool - Was 6803605 - A

42

6661328

SEAL KIT main relief - Ref. 22-25 - Was 6592474 - A

42

6809425

SEAL KIT upper deck - Ref. 12-14 & 18 - Was 6586461 - A

43

6588166

SCREW Was 74G000416B - B

44

BONNET NLA - W.25'' Flange - Order 6587633 , 6662848 , & 2 of 6588164 - Was 6592097 - A

44

7101345

BONNET, DETENT HYD VALVE W/.50'' Flange - Was 6587633 - A

45

6593349

SLEEVE Aux.

46

6587763

BOOT Ref. 6 must be removed when installing new boot Ref. 44 - Was 6583727 - A

47

6587304

ORIFICE .125'' (3,17 mm )

48

6662848

CAP Use with 6587633 bonnet

49

69G414

BOLT Was 6588164 - A

50

6664373

VALVE optional - port relief & anti-cav. - W/Ref. 12 - 2500PSI - used in tilt cyl. base end port

51

6660644

CAP

52

6666585

SPOOL Tilt - #1 or Red - See Note

52

6666586

SPOOL Tilt - #2 or Green - See Note

52

6666587

SPOOL Tilt - #3 or Black - See Note

53

6592119

SPOOL Aux. Rear - SEE NOTE
