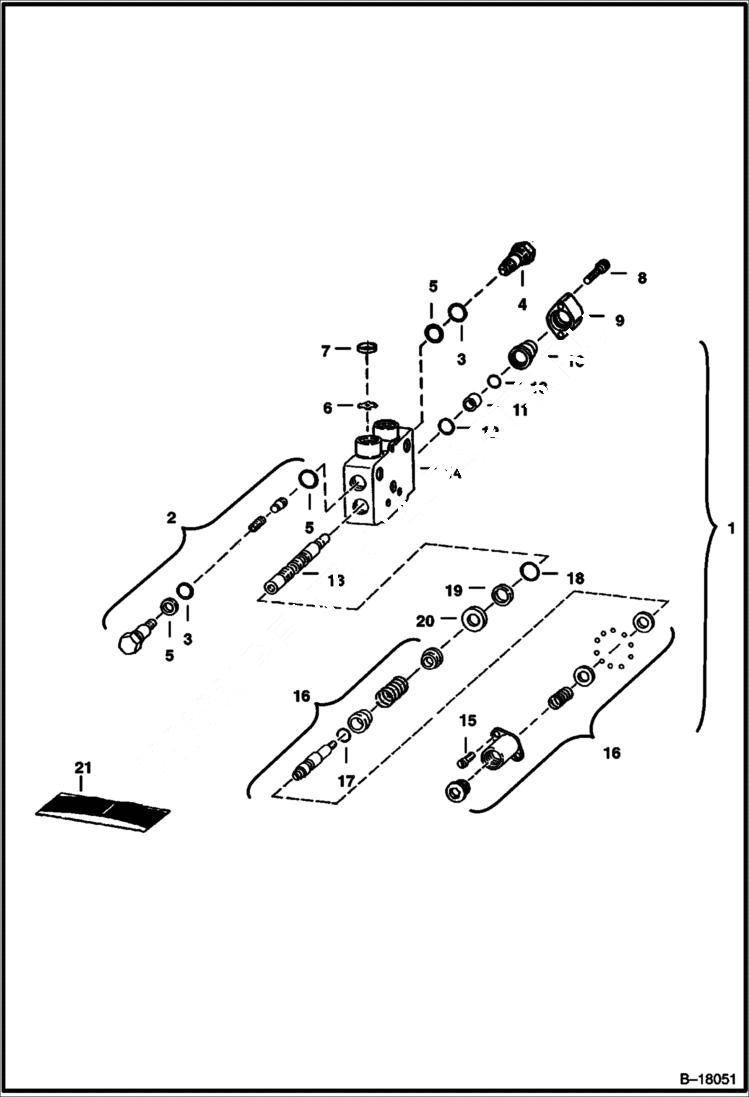

Запчасти Bobcat 700s LIFT SECTION (Gresen V20) (S/N 14999 & Below) HYDRAULIC SYSTEM

1

6659259

SECTION Was 6650701 - C

2

6650692

RELIEF VALVE

3

O-RING NSS

4

6650694

ANTI-CAV. VALVE

5

O-RING NSS

6

6598689

ORIFICE

7

6598690

SPRING

8

89G408

BOLT

9

6659527

PLATE

10

6659526

SPACER

11

6659528

SLEEVE

12

6659530

O-RING

13

SPOOL NSS

14

HOUSING NSS

15

7030462

BOLT Was 89G414 - A

16

6659344

POSITIONER Was 6651324 - A

17

O-RING NSS

18

6659529

O-RING

19

SEAL NLA - Was 6651325 - A

20

6650693

RETAINER

21

6650691

SEAL KIT Ref. 3 & 5

21

6659560

SEAL KIT Ref. 12 & 18-21
