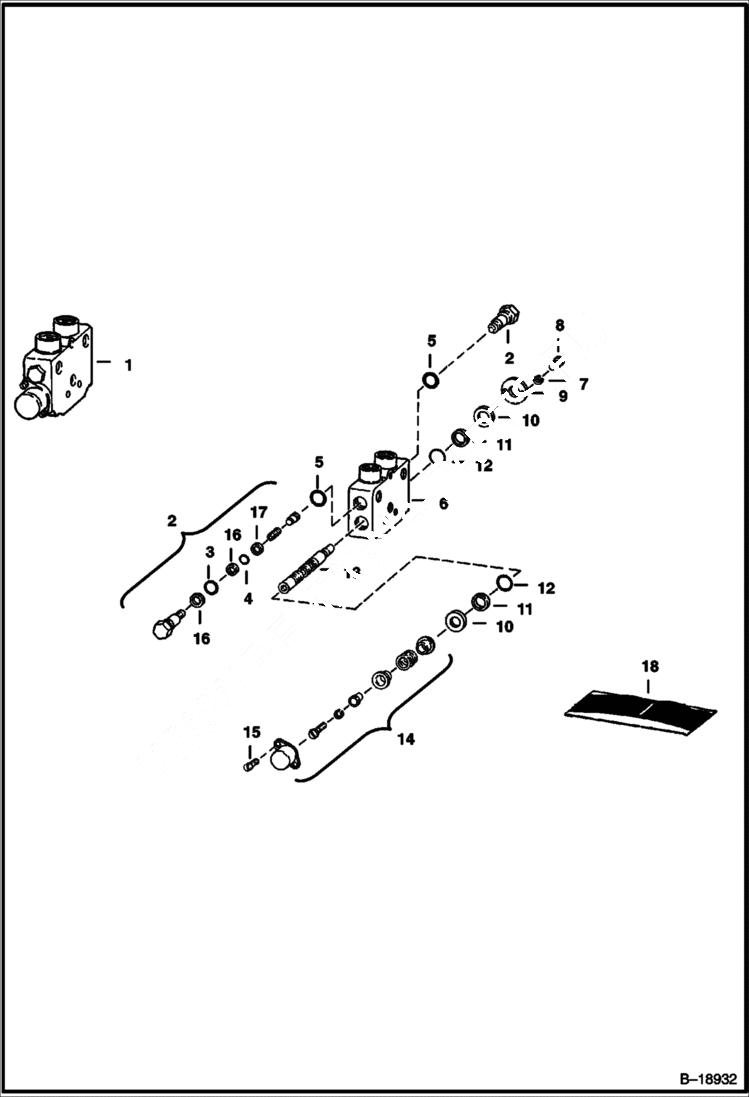

Запчасти Bobcat 700s TILT CONTROL SECTION (Gresen CS) (S/N 14999 & Below) HYDRAULIC SYSTEM

1

SECTION See BTI242 NLA - tilt - Was 6519936 - A

2

6519937

CHECK load

3

O-RING NSS

4

O-RING NSS

5

O-RING NSS

6

HOUSING NLA

7

4E4

WASHER

8

89G408

BOLT

9

6519941

RETAINER

10

6519747

RETAINER

11

6519748

WASHER back-up

12

O-RING NSS

13

SPOOL NLA

14

6519938

POSITIONER

15

5208677

SCREWS

16

WASHER NSS - back-up

17

WASHER NSS - back-up

18

6563973

SEAL KIT Ref. 3-5, 12, 16 & 17
