Запчасти Bobcat 700s CONTROL PEDALS (S/N 14999 & Below) HYDRAULIC SYSTEM

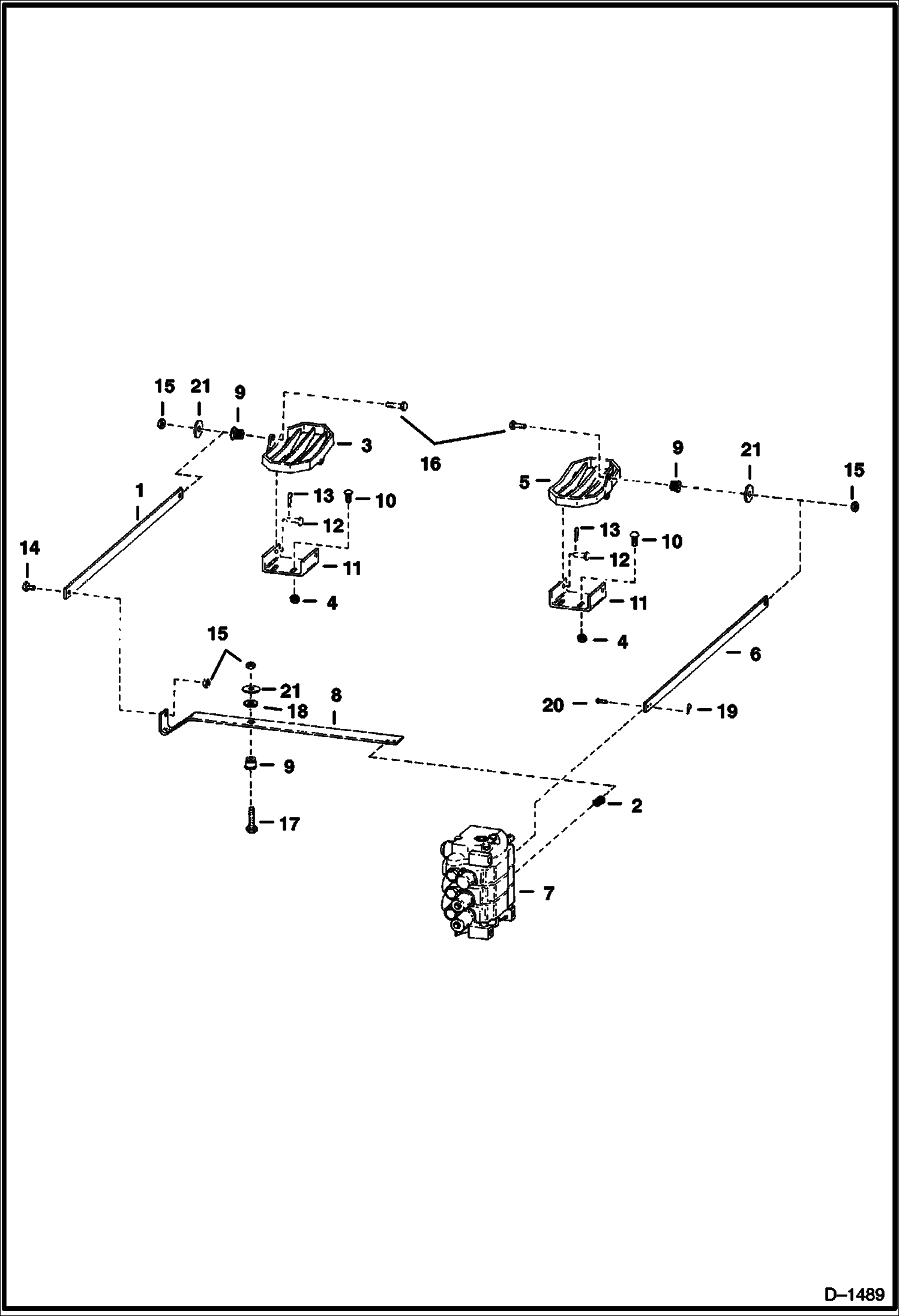

Схема запчастей Bobcat 700s - CONTROL PEDALS (S/N 14999 & Below) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6563146

BAR

2

6515186

CONNECTOR

3

6558451

PEDAL

4

57D6

NUT 5 flange

5

6558453

PEDAL

6

6563147

BAR

7

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B18926 See BTI242

8

6558456

LEVER

9

6665701

BUSHING, PRESS FIT See BTI228 Was 6630081 - A

10

6704349

BOLT carriage - Was 37C000616B - B

11

6558447

BRACKET

12

1737762

PIN

13

1306637

CLIP Hair

14

17C616

BOLT 5

15

85D6

NUT, 5

16

17C624

BOLT 5

17

1304938

BOLT

18

25E17

WASHER 5

19

6513495

COTTER PIN

20

6559014

CLEVIS PIN

21

6563914

WASHER

Выбрано товаров: 21
