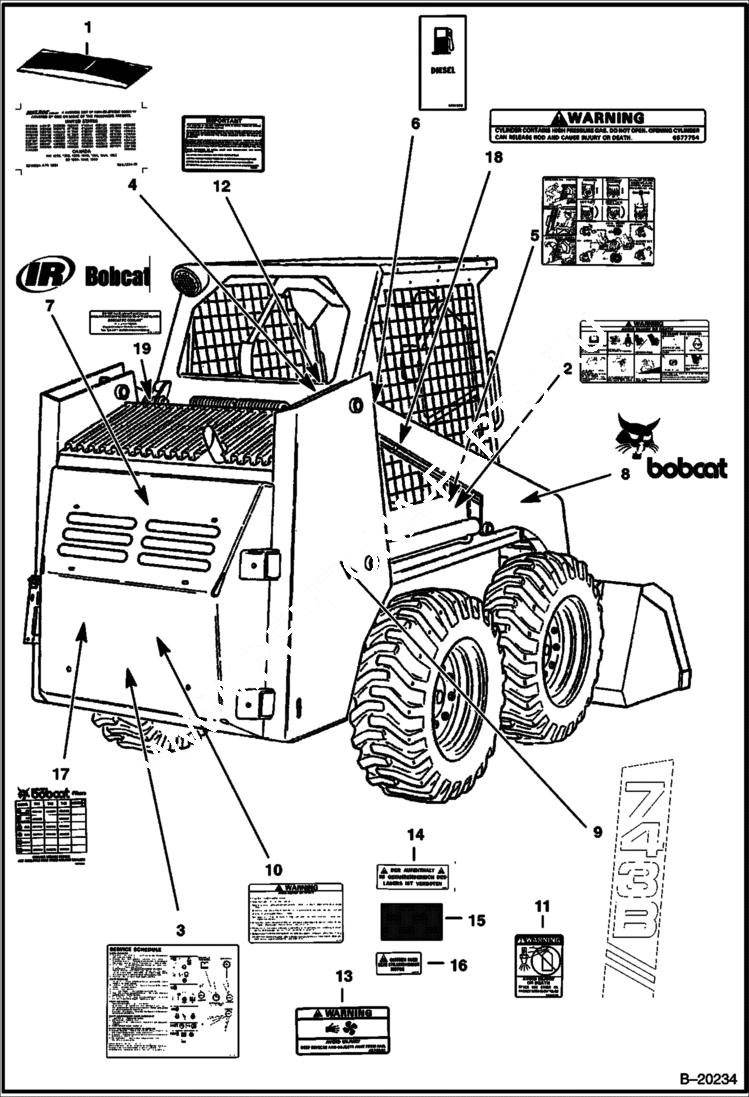

Запчасти Bobcat 700s DECALS ACCESSORIES & OPTIONS

1

6569281

KIT See Illustration DECALS/ B20233 DECAL - REF. 2-14, 10-12 & 18 ON THIS PAGE & REF. 2-15, 19 & 21

2

6579510

DECAL warning

3

6567875

DECAL service

4

DECAL NLA - patent - Was 6557224 - C

5

6569021

DECAL operating

6

6589739

DECAL diesel - Was 6561379 - A

7

DECAL NLA - Bobcat Logo - Was 6727307 - A

8

6557412

DECAL RH - Bobcat head

8

6557413

DECAL LH - Bobcat head

9

6704936

DECAL model no. - R.H. - Not in Decal Kit - Was 6702803 - A

9

6704937

DECAL model no. - L.H. - Not in Decal Kit - Was 6702804 - A

10

6579511

DECAL

11

6559569

DECAL ether

12

6560573

DECAL spark arrestor

13

6576048

DECAL For European Export Kit

14

6558789

DECAL stay clear - For European Export Kit

15

6558790

DECAL red reflective - For European Export Kit

16

6564154

DECAL For European Export Kit - Was 6559038 - A

17

6579534

DECAL filters - Not in Kit

18

6577754

DECAL, WARNING 5 gas spring

19

6708929

DECAL, COOLANT propylene glycol
