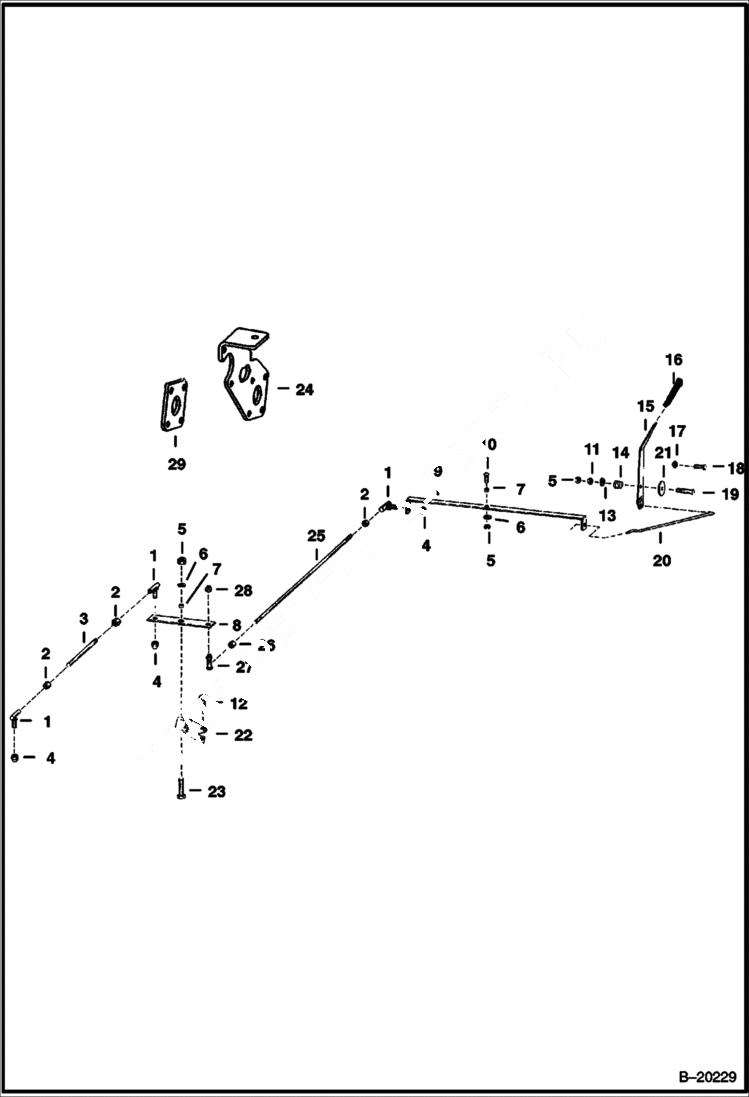

Запчасти Bobcat 700s THROTTLE & FUEL SHUT-OFF POWER UNIT

1

6554858

BALL JOINT ball joint - fine threads

2

62D4

NUT fine threads

3

6562494

ROD

4

86D4

NUT fine threads

5

85D6

NUT, 5

6

872229

WASHER

7

6544654

BUSHING

8

6563532

BELLCRANK

9

6557196

LEVER

10

6557432

BOLT

11

7D6

NUT

12

1CM620

BOLT Was 4CM620 - A

13

27E6

WASHER 5

14

6562126

SPRING

15

6563940

LEVER

16

6553557

GRIP

17

57D6

NUT 5

18

37C616

BOLT carriage

19

7C640

BOLT

20

6562490

ROD

21

6562127

WASHER

22

6562495

BRACKET

23

17C620

BOLT

24

6578085

MOUNT See Illustration ENGINE ELECTRICAL CIRCUITRY/ E2104 FUEL SHUT-OFF SOLENOID - FOR SOLENOID

25

6564371

ROD course threads

26

61D4

NUT 5 course threads

27

6557291

BALL JOINT ball joint - Course Threads

28

85D4

NUT 5

29

6714543

GASKET Was 3974461B - A
