Запчасти Bobcat 700s ENGINE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

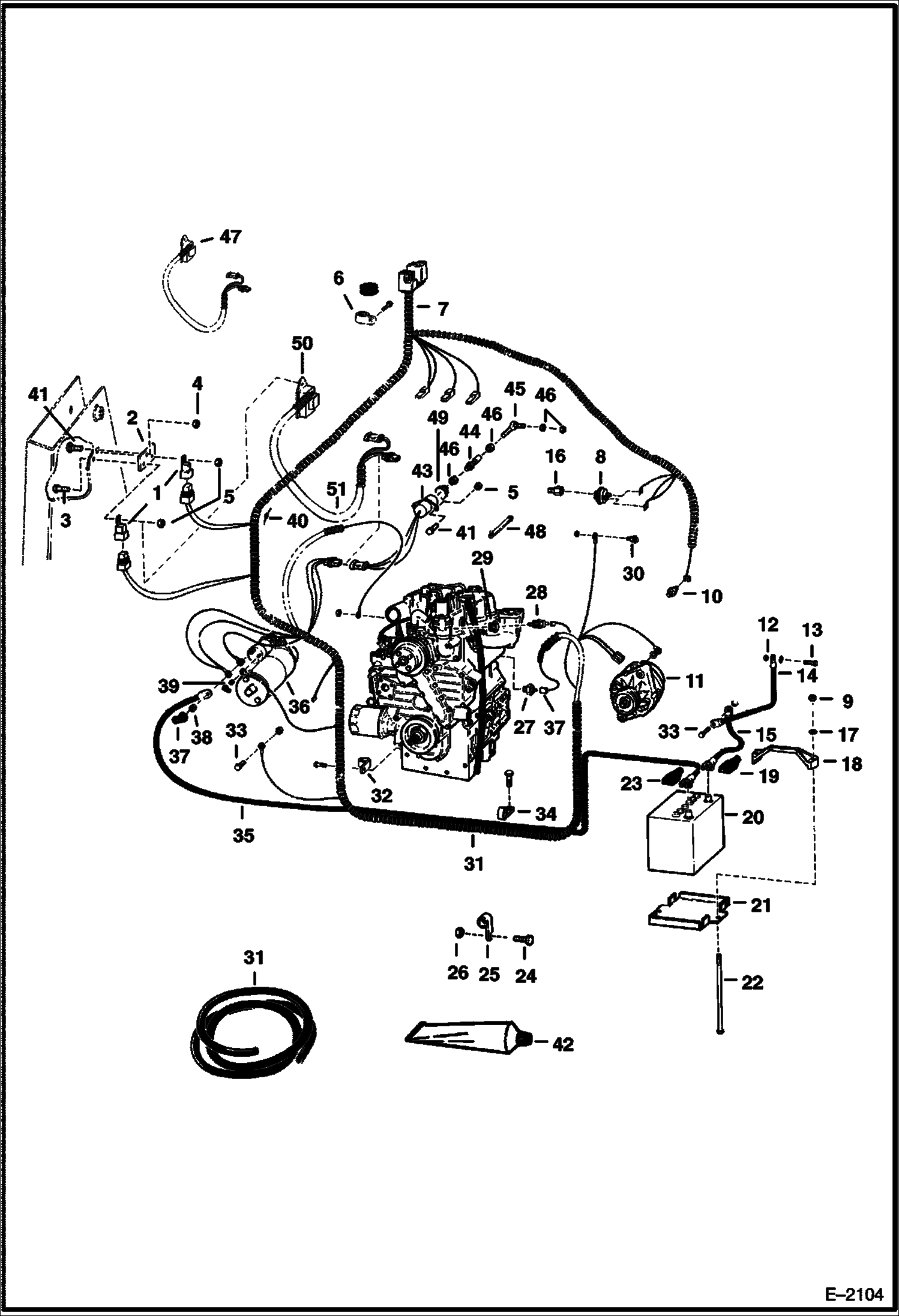

Схема запчастей Bobcat 700s - ENGINE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6651975

SWITCH

2

6703685

BRACKET

3

7C512

SCREW

4

85D5

NUT 5

5

85D4

NUT 5

6

30H42

CLAMP

7

6703686

HARNESS chassis to engine

8

6671062

SWITCH hydro. press. - Was 6664577 - A

9

59D5

NUT 5

10

6632633

SWITCH hyd temp

11

ALTERNATOR See Illustration ALTERNATOR/ B18156

12

83D5

NUT 5

13

17C512

BOLT 5

14

6563025

CABLE Ground

15

6553094

CABLE Ground

16

6563922

SNUBBER W/Filter

16

6563920

FILTER

17

25E15

WASHER

18

6569203

CLAMP

19

BOOT NLA - Was 6599652 - A

20

6665032

BATTERY, DRY 700 AMP Was 6665031 - A

20

6630153

BATTERY CAP

21

6561733

MOUNT

22

6569623

BOLT

23

2356058

BOOT

24

31C820

BOLT

25

30H48

CLIP

26

57D8

NUT 10

27

6969775

SWITCH, OIL PRESSURE eng. oil press. - Was 6652576 - A

28

SENDER See BTI259 NLA - eng. temp. - 1/8'' threads - See Ref. 29

28

6658818

SENDER See BTI259 eng temp - threaded connector

29

19F4

BUSHING Use W/Ref. 28 if engine has 1/2'' hole for temp. switch

30

SWITCH See Illustration HYDROSTATIC OIL FILTER/ C2818 FILTER

31

6563505

CONDUIT bulk - Sold Per Foot

32

30H54

CLIP Was 30H000029B - B

33

17C610

BOLT

34

30H41

CLIP Was 30H000030B - B

35

6564991

CABLE pos. - W/Ref. 31

36

STARTER See Illustration STARTER/ D2119

37

6560172

COVER

38

4DM10

NUT

39

4DM5

NUT

40

3675725

DIODE

41

17C412

BOLT 5

42

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz

43

6662993

SOLENOID fuel shut-off

44

6578366

BALL JOINT

45

6578363

ROD END

46

62D4

NUT

47

TIMER NLA - Order Ref. - 50 & 51 Was 6661372 - A

48

6610510

TIE

49

6664286

BOOT Also Order Ref. 48

50

6669415

TIMER, SOLENOID

50

6702444

FUSE 25A 5 25 amp Was 6670808 - A

51

6713879

HARNESS

Выбрано товаров: 55
