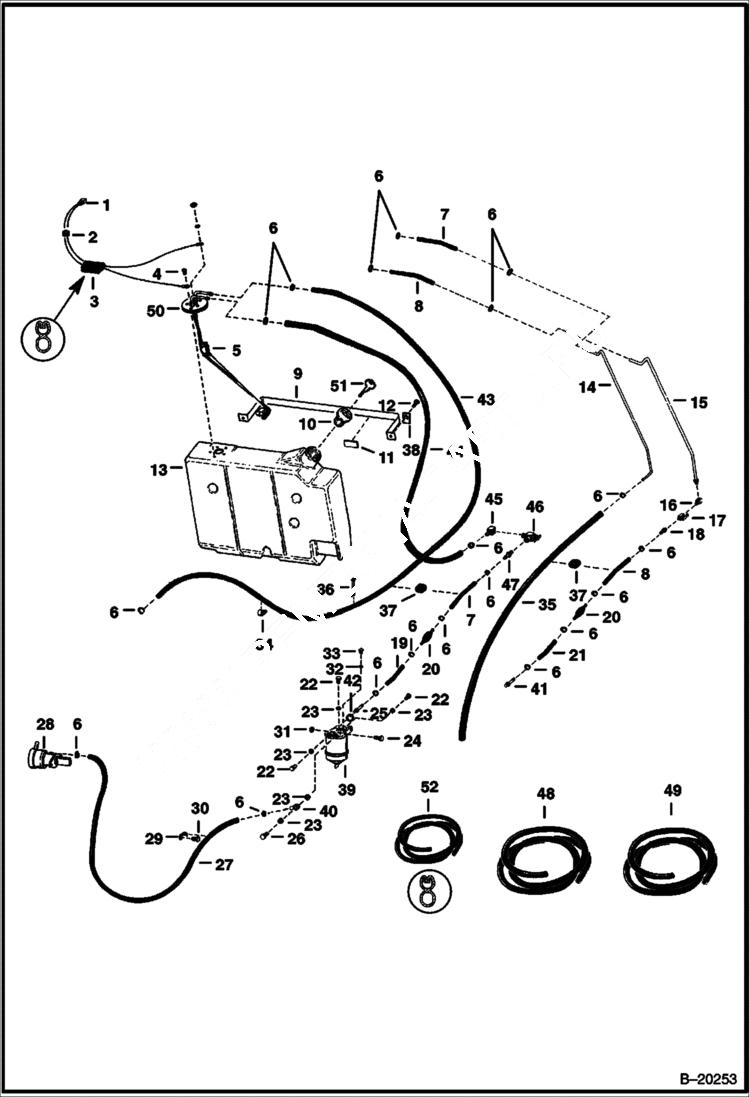

Запчасти Bobcat 700s FUEL SYSTEM (S/N 16124 & Below) MAIN FRAME

1

6560117

WIRE

2

742876

GROMMET

3

SEAL NLA - 3'' (86mm) - Order Ref. 52

4

87G1010

SCREW Was 85G001010B - B

5

6563210

SENDER Fuel - includes gasket

6

42HS04

CLAMP, HOSE Was 6515575 - A

7

HOSE NLA - 6'' (152,4 mm) - Order Ref. 48

8

HOSE NLA - 7'' (177,8 mm) - Order Ref. 49

9

6562559

BAND

10

6661114

CAP. DIESEL Was 6632468 - D

10

CAP NLA - locking - W/Ref. 51 - Code GC020 - Was 6654373 - A

10

6661696

CAP, FUEL LOCKING locking - W/Ref. 51 - Code PK510

11

6591273

STRIP rubber - bulk - Was 6563233 - A

12

84G3720

BOLT

13

TANK See BTI216 NLA

14

6562548

TUBE

15

6562547

TUBE

16

62F4

ELBOW

17

6562553

VALVE shut off

18

6513421

CONNECTOR

19

HOSE NLA - 2'' (50,8 mm) - Order Ref. 48

20

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long - A

21

HOSE NLA - 2-1/4'' 57,15 mm) - Order Ref. 49

22

6515682

PLUG

23

6515466

WASHER

24

17C616

BOLT 5

25

6560355

FITTING

26

3727284

BOLT hollow

27

HOSE NLA - 49'' (1244,6 mm) - Order Ref. 49

28

6666850

PUMP, FUEL See Illustration INJECTION PUMP/ B3612 WAS 6598121 - A

29

30H36

CLIP

30

6CM1220

BOLT

31

57D6

NUT 5

32

6515468

WASHER

33

6515676

PLUG

34

30H29

CLAMP

35

HOSE NLA - 30'' (990,6 mm) - Order Ref. 48

36

6513471

CLAMP

37

6515603

GROMMET

38

6559447

WASHER square

39

6560348

FITLER, FUEL ASSY See Illustration FUEL FILTER/ B5653

40

6511899

ADAPTER banjo

40

6599488

ELBOW

41

1324240

CONNECTOR

42

79K5

O RING 10

43

HOSE NLA - 58'' (1473,2 mm) - Order Ref. 48

44

HOSE NLA - 35'' (889 mm) - Order Ref. 49

45

6598753

ELBOW

46

6632593

VALVE shut-off - Was 6512138 - B

47

6505813

CONNECTOR barbed - Use W/barbless valve

48

6577821

HOSE bulk - sold per foot - Was 672221 - A

49

6577822

HOSE bulk-Sold Per Foot - Was 6562515 - A

50

6630972

GASKET

51

6654374

KEY Set of 2 - Code GC020

51

6587458

KEY Set of 2 - Code PK510

52

6513152

SEAL bulk - sold per foot
