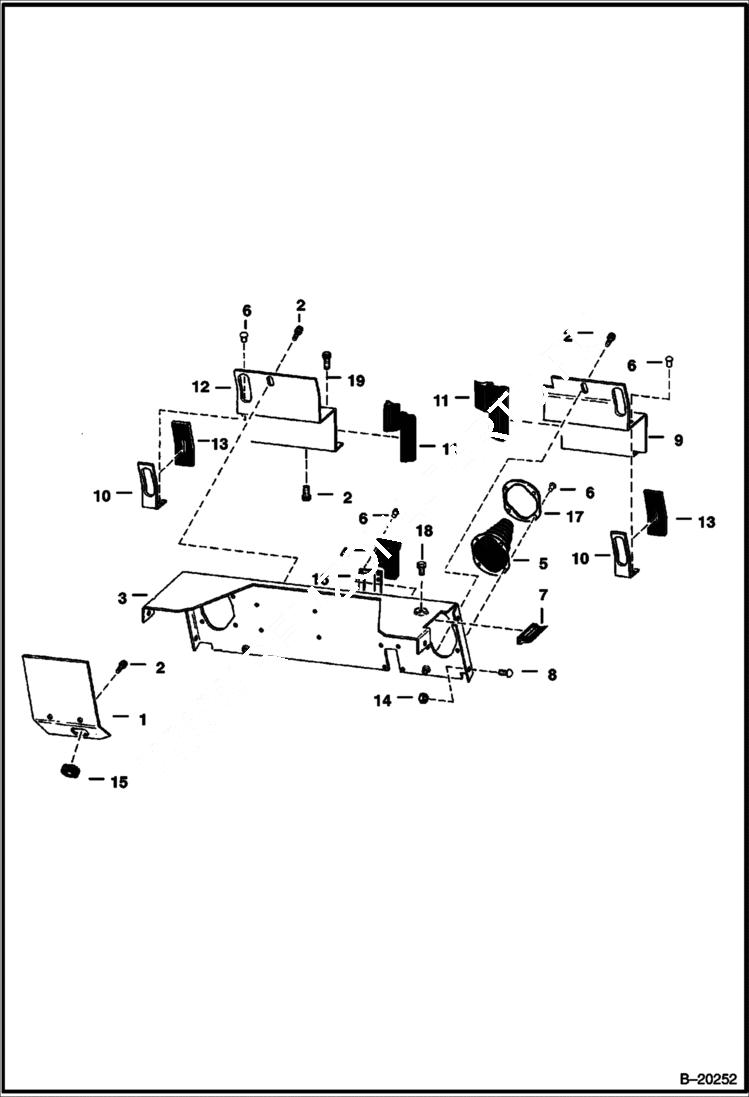

Запчасти Bobcat 700s PANELS (S/N 13760 & Above) MAIN FRAME

1

6562807

SHIELD Wire Harness

2

84G3716

SCREW 5

3

6564674

SHIELD Also Order Ref. 18

4

BOOT NLA - Order 6571648 - Was 6565013 - A

4

BOOT NLA - W/Metal Insert - Was 6571648 - A

5

6532127

BOOT W/Ref. 17

6

6630207

RIVET 5 Was 6513493 - A

7

4126590

MOULDING bulk - sold per foot

8

37C616

BOLT carriage - Was 6514537 - A

9

6564670

SHIELD If both shield and floor plate are slotted, use bolt, washer and nut

10

6564982

RETAINER

11

6513152

SEAL bulk - sold per foot

12

6564671

SHIELD If both shield and floor plate are slotted, use bolt, washer and nut

13

6564976

SEAL foam block

14

57D6

NUT 5

15

6553653

GROMMET

16

6565014

RETAINER Not Use W/6571648

17

PLATE NSS - Order Ref. 5 - Was 6536392 - A

18

6598805

PLUG

19

84G3712

BOLT 5
