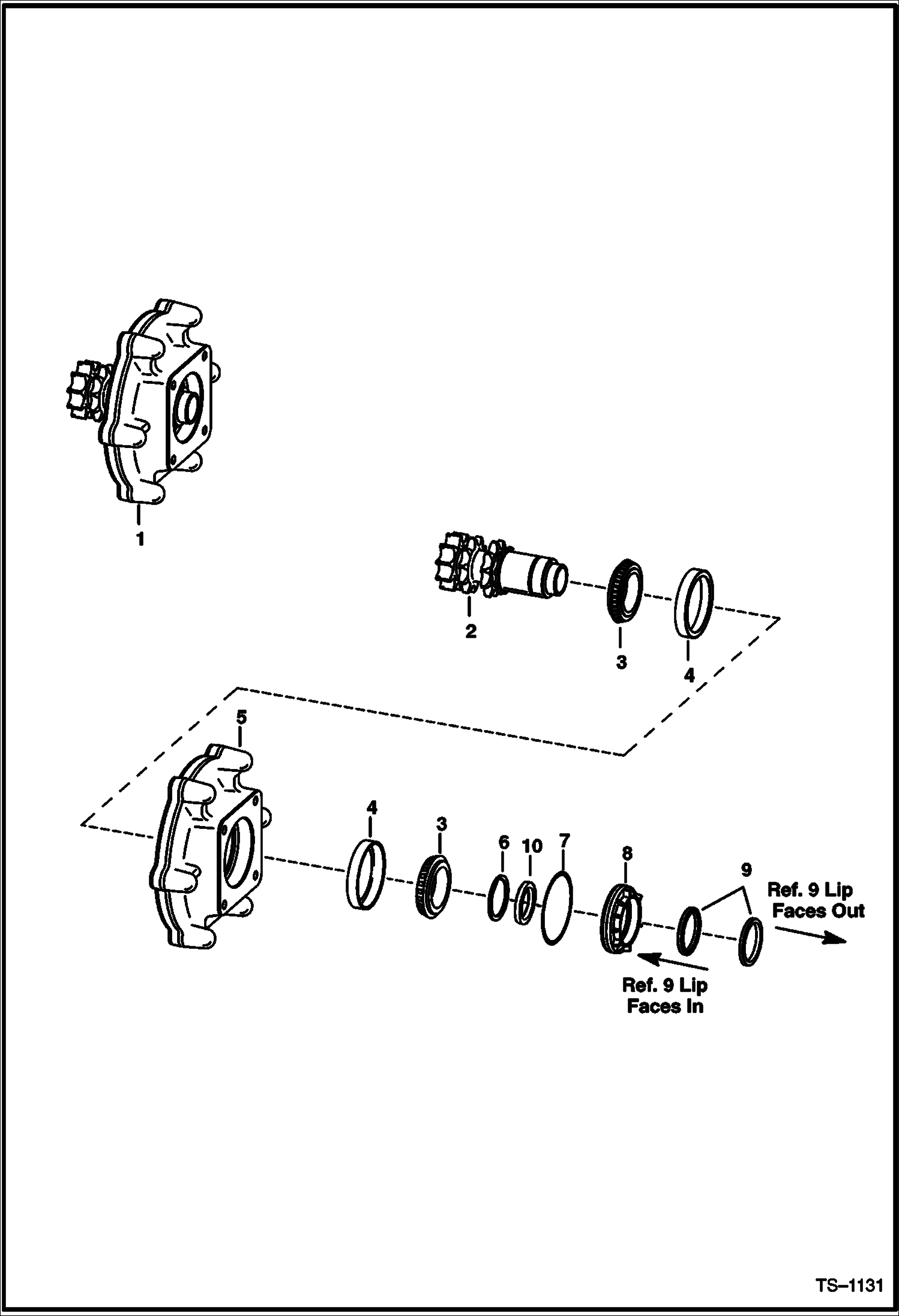

Запчасти Bobcat 700s DRIVE MOTOR MOUNT ASSY DRIVE TRAIN

1

MOUNT ASSY. NLA - drive motor - Ref. 2 - 9 - Order components - Was 6705287 - A

2

6705065

SHAFT, TRANS W/snap ring groove

3

6632218

CONE, BEARING

4

6632541

RACE

5

6704491

HOUSING

6

6571851

SNAP RING 0.118'' thickness

6

6571852

SNAP RING 0.125'' thickness

7

O-RING NLA - Order 6705847 Seal - Was 25K040412B - A

8

SEAL ADAPTER NLA - plastic - Order 6705847 Seal - Was 6703186 - A

9

SEAL NLA - Order 6705847 Seal - Was 6652528 - A

10

6705847

SEAL, OIL
