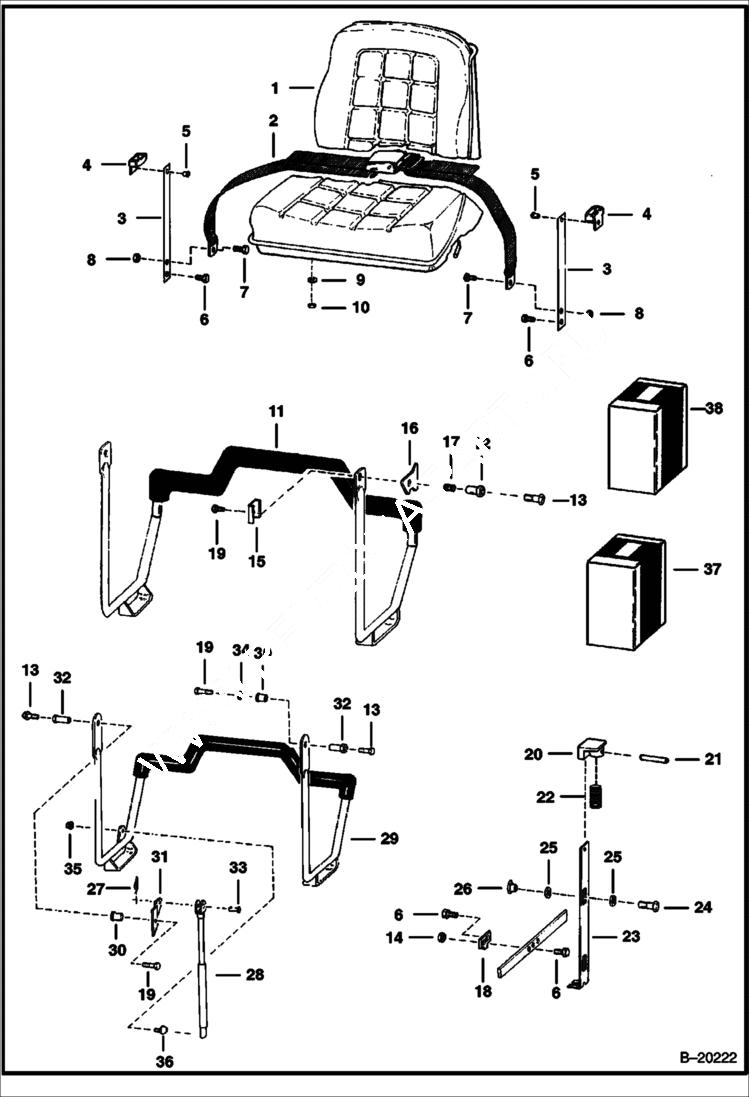

Запчасти Bobcat 700s SEAT & SEAT BAR MAIN FRAME

1

SEAT See Illustration SEAT/ B7185

2

SEAT BELT NLA - Order 6713061 - Was 6564774 - A

2

SEAT BELT NLA - Order 6675074 seat belt & (2) of Ref. 3 (6725373 spring plate) - Was 6667875 - A

2

SEAT BELT NLA - w/spring plates - Order 6675074 seat belt & (2) of Ref. 3 (6725373 spring plate) - Was 6725403 - A

2

6675074

SEAT BELT W/O spring plates

3

GUIDE ASSY NLA - W/Ref. 4 & 5, 13.75 Use W/NLA 6564774 - Was 6565354 - A

3

GUIDE ASSY NLA - W/Ref.4 & 5, 12.25 used W/NLA 6667875 - Order 6711908 spring plate, Ref. 4 & (2) of Ref. 5 - Was 6711907 - A

3

6711908

SPRING PLATE W/Ref. 2 (NLA/ 6667875 seat belt)

3

6725373

SPRING PLATE Use W/Ref. 2 (6675074 seal belt)

4

GUIDE NLA - Order 6703703 - Was 6565355

5

6630207

RIVET 5 Was 6512797 - A

6

84G3712

BOLT 5

7

17C716

BOLT

8

85D7

NUT

9

4E5

WASHER

10

61D5

NUT

11

6706324

SEAT BAR Was 6703301 - A

12

6568742

BUSHING

13

35C608

BOLT

14

83D6

NUT 5

15

6563557

WASHER

16

6563313

RETAINER

17

6704453

SPRING Was 6503387 - A

18

6563151

LINK

19

17C616

BOLT 5

20

6563148

BLOCK, SPRING

21

14J2512

PIN 5

22

6702430

SPRING, COMPRESSION

23

6563150

LOCK

24

17C612

BOLT 5

25

6700170

WASHER nylon

26

6559479

NUT

27

6631418

RING, RETAINING

28

6664207

GAS SPRING

29

6716778

SEAT BAR For Use W/gas spring - Was 6706358 - A

30

6706387

BUSHING

31

6706388

BRACKET

32

6706389

BUSHING

33

4F5062

PIN

34

25E21

WASHER 5

35

83D5

NUT 5

36

6649244

BALL STUD

37

6706796

KIT See Illustration SEAT BAR KIT/ C3341 GAS SPRING SEAT BAR

38

KIT NLA - W/Ref. 2 & 3 - Order 6675074 - Was 6713061 - A
