Запчасти Bobcat 700s DECALS ACCESSORIES & OPTIONS

1

6569281

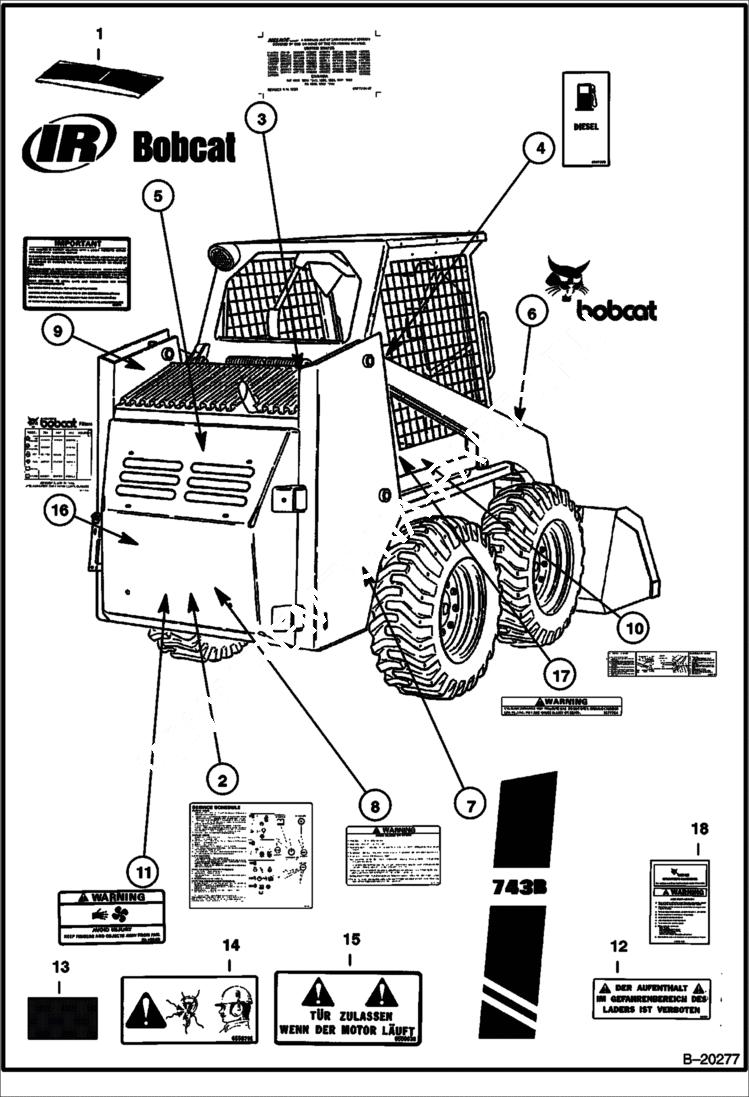

KIT See Illustration DECALS/ B20278 DECAL - REF. 2-6, 8-10, 17 & REF. 2-8, 11-18

2

6567875

DECAL service

3

DECAL NLA - patent - Was 6557224 - C

4

6589739

DECAL Diesel - Was 6561379 - A

5

DECAL NLA - Bobcat Logo - Was 6727307 - A

6

6557412

DECAL RH - Bobcat head - shown

6

6557413

DECAL LH - Bobcat head - not shown

7

6702803

DECAL model no. - R.H. - Not in Decal Kit - shown - Was 6702003 - A

7

6702804

DECAL model no. - L.H. - Not in Decal Kit - not shown

8

6579511

DECAL Was 6565980 - A

9

6560573

DECAL spark arrestor

10

6706558

DECAL, OPERATION lift arm support

11

6576048

DECAL For European Export Kit - Was 6557927 - A

12

6558789

DECAL For European Export Kit

13

6558790

DECAL red reflective - For European Export Kit

14

6558791

DECAL ear protective - For European Export Kit

15

6564154

DECAL For European Export Kit - Was 6559038 - A

16

6579534

DECAL filters - Not in Kit - Was 6567696 - A

17

6577754

DECAL, WARNING 5 gas spring - Was 6568741 - A

18

6556500

MANUAL EMI SAFETY - LOADER not in kit
