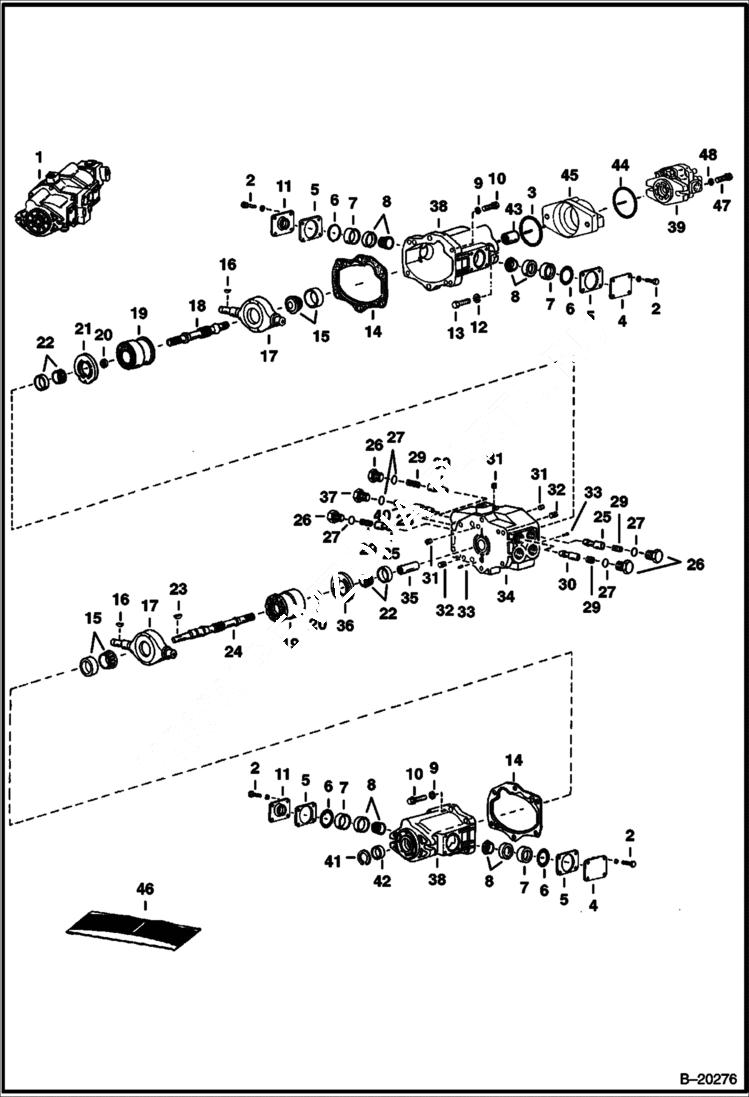

Запчасти Bobcat 700s HYDROSTATIC PUMP (S/N 13888 & Above) HYDROSTATIC SYSTEM

1

PUMP NLA - New - Order 6662835 Pump & 1 6704606 Yoke - Was 6660458 - A

1

PUMP NLA - reman - Was 6662835 - A

2

6513631

BOLT

3

6512949

O-RING

4

6512939

COVER

5

6512940

SHIM KIT

6

O-RING NSS

7

6512938

SPACER

8

232539

BEARING

9

4E6

WASHER

10

93G624

SCREW

11

6513094

COVER & SEAL

12

616791

WASHER

13

17C820

BOLT

14

6512941

GASKET

15

6513091

BEARING

16

5J806

KEY

17

6512929

YOKE

18

SHAFT NLA - Was 6661118 - A

19

ROTATING GROUP NLA - Was 6512930 - A

20

6512948

KIT spacer

20

6674240

SPACER (.137'')

20

6674241

SPACER (.139'')

20

6674242

SPACER (.142'')

20

6674243

SPACER (.145'')

20

6674244

SPACER (.148'')

20

6674245

SPACER (.151'')

20

6674246

SPACER (.154'')

20

6674247

SPACER (.157'')

20

6674248

SPACER (.160'')

20

6674249

SPACER (.163'')

20

6674250

SPACER (.166'')

20

6674251

SPACER (.169'')

21

6598478

WEAR PLATE

22

6513093

BEARING

23

6519654

KEY

24

6512942

SHAFT, DRIVE HYD

25

6560968

KIT relief valve - High PSI

26

6513434

PLUG

27

79K12

O RING 10

28

POPPET NLA - Charge PSI - Was 6630786 - A

29

6513433

SPRING

30

6513432

POPPET replenishing

31

16F4

PLUG

32

6513089

PIN

33

6513092

PIN

34

BODY NLA - valve - Was 6512931 - A

35

6512933

COUPLER

36

WEAR PLATE NLA - Was 6598477 - A

37

6630784

PLUG

38

HOUSING NLA - Also Order Ref. 5 & 20 when replacing housing - Was 6598433 - A

39

PUMP See Illustration VANE PUMP/ C2225 GEAR

40

SPRING NLA - Was 6630785 - A

41

507695

SNAP RING Was 711054B - A

42

6513090

SEAL, SHAFT

43

6661120

COUPLER

44

6512949

O-RING

45

6578778

ADAPTER

46

6512943

KIT, SEAL Ref. 3, 6, 14, 27 & 40 - Also order Ref. 44

47

17C620

BOLT

48

6510584

WASHER
