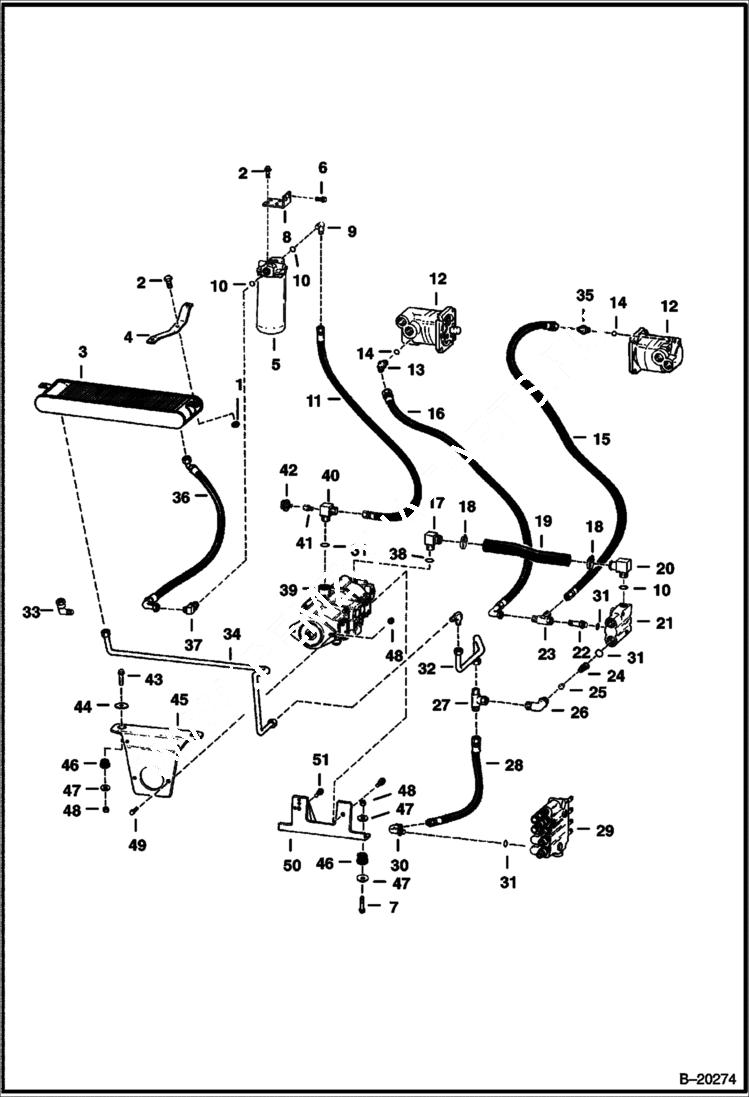

Запчасти Bobcat 700s HYDROSTATIC CIRCUITRY (S/N 13887 & Below) HYDROSTATIC SYSTEM

1

85D6

NUT, 5

2

35C612

BOLT

3

6560954

OIL COOLER

4

6565195

BRACKET

5

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818

6

84G3712

BOLT 5

7

17C836

BOLT

8

6565336

BRACKET

9

17K8

FITTING W/Ref. 10

10

79K12

O RING 10

11

6702857

HOSE Was 2525543B - A

12

MOTOR See Illustration HYDROSTATIC MOTOR/ B20105

13

18K5

ELBOW W/Ref. 14

14

79K6

O RING 10

15

1518597

HYD HOSE 14''

16

6564714

HOSE

17

6567883

ELBOW W/Ref. 38

18

44H20

CLAMP Was 6666864 - A

19

HOSE NLA - 9.50'' (241,3mm) - Order 799136B - Was 6565344 - A

20

1321499

FITTING W/Ref. 10 - Was 6567884 - A

21

6565748

BLOCK port

22

731795

CONNECTR

23

13K5

TEE

24

6565425

SPRING

25

6515078

POPPET

26

6565701

ELBOW

27

14K7

TEE

28

6567419

HOSE

29

VALVA See Illustration HYDRAULIC CONTROL VALVE/ B20271 BOBCAT

30

6532179

ELBOW W/Ref. 31

31

79K10

O RING 10

32

6565717

TUBE

33

77F7

ELBOW

34

6567313

TUBE

35

15K5

FITTING W/Ref. 14

36

6567026

HOSE

37

17KB1012

FITTING, HYD ELBOW W/Ref. 10 - Was 1302104B - A

38

79K16

O RING 10

39

PUMP See Illustration HYDROSTATIC PUMP/ D1392

40

6565630

ELBOW W/Ref. 31

41

6563922

SNUBBER W/Filter

41

6563920

FILTER

42

6671062

SWITCH hydro. pressure - Was 6664577 - A

43

35C840

BOLT

44

6560899

WASHER

45

6562697

MOUNT

46

6560633

DAMPENER rubber

47

6564692

WASHER

48

85D8

NUT, 5

49

17C824

BOLT 5

50

6569553

BRACKET

51

17C816

BOLT
