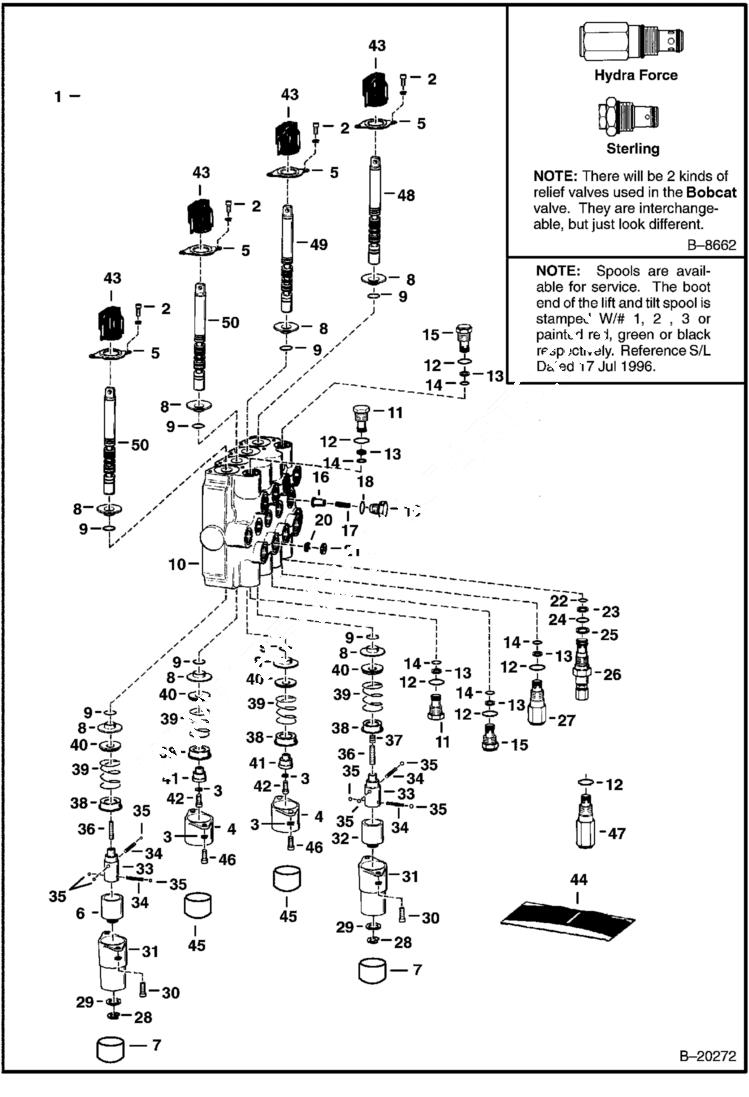

Запчасти Bobcat 700s HYDRAULIC CONTROL VALVE (4-Spool) HYDRAULIC SYSTEM

1

VALVE NLA - Order components - Ref. 2-44 - Was 6539333 - A

1

SHORT BLOCK NLA - Ref. 2-10, & 37 - When ordering short block order 8 of Ref. 30. See Service Letter dated 5 Jan. 87 - Was 6592740 - A

2

6588165

SCREW Was 73G000410B - B

3

22E4

WASHER

4

BONNET NLA - W/.25'' flange thickness - Order 7101345 Bonnet, 6662848 Cap & 2 of 6588164 Screws - Was 6592097 - A

4

7101345

BONNET, DETENT HYD VALVE W/.50'' flange thickness - Was 6587633 - A

5

6592123

RETAINER

6

6593349

SLEEVE Aux.

7

6660644

CAP

8

6592103

BUSHING See Service Letter 5 Jan. 87

9

6665089

SEAL See BTI374 lip seal - Was 6659554 - A

9

6646372

SEAL See BTI374 quad ring seal

10

6804529

VALVE, CONTROL SERVICE body

11

6592720

PLUG W/Ref. 12-14

12

79K10

O RING 10

13

80K14

BACK-UP WASHER Was 73K000014B - B

14

58K014

O-RING 10 back-up washer required - Was 25K20016 - B

14

6677106

O-RING backup washer not required

15

6667549

VALVE anti-cavitation - W/Ref. 12-14 - Was 6661345 - A

16

6592115

SEAT

17

6592117

SPRING, LOAD CHECK

18

79K8

O RING 10

19

6592116

NUT load check

20

ORIFICE NLA - .123/.130 - Was 6592110 - A

21

6593680

RETAINER

22

O-RING NSS

23

WASHER NSS - back-up

24

O-RING NSS

25

WASHER NSS - back-up

26

VALVE NLA - main - W/Ref. 22-25 - press. preset at factory - Was 6676199 - A

26

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

27

6599161

RELIEF VALVE W/Ref. 12 -14 - See Note

28

799119

RING

29

6592098

WASHER

30

6588163

SCREW 7/8'' - Was 69G000412B - B

30

29G416

BOLT 1'' - Was 6588982 - A

31

BONNET NLA - W/1.25'' flange - Order 6589226, 6631704, 2 of 29G000416B - Was 6592094 - A

31

6589226

COVER, END 0.63'' flange

32

6592096

SLEEVE lift

33

6587575

ADAPTER Was 6592099 - A

34

6592107

SPRING

35

6592105

BALL

36

6586918

SCREW Was 6538466 - A

37

6592752

PLUG plastic

38

6592100

COLLAR

39

6587580

SPRING Was 6592106 - A

40

7211397

WASHER, SPRING Was 6587523 - A

41

6592109

ADAPTER

42

6588166

SCREW Was 74G000416B - B

43

6583727

BOOT See Note

44

6816251

KIT, SEAL See BTI374 - Ref. 9, 12-14, 18, 22-25, 30 & 43 - Was 6589858 - A

44

6816250

KIT, SEAL See BTI374 - Ref. 9, 30 & 43 - For One Spool - Was 6803605 - A

44

6661328

SEAL KIT main relief - Ref. 22-25 - A

44

6809425

SEAL KIT upper deck - Ref. 12-14 & 18 - Was 6586461 - A

45

6662848

CAP Use with 7101345 Bonnet

46

69G414

BOLT Was 6588164 - A

47

6664373

VALVE optional - port relief & anti-cav. W/Ref. 12 - 2500 PSI - use in tilt cylinder base end port

48

6666582

SPOOL lift - #1 or red - SEE NOTE

48

6666583

SPOOL lift - #2 or green - SEE NOTE

48

6666584

SPOOL lift - #3 or black - SEE NOTE

49

6666585

SPOOL tilt - #1 or red - SEE NOTE

49

6666586

SPOOL tilt - #2 or green - SEE NOTE

49

6666587

SPOOL tilt - #3 or black - SEE NOTE

50

6592119

SPOOL auxiliary - SEE NOTE
