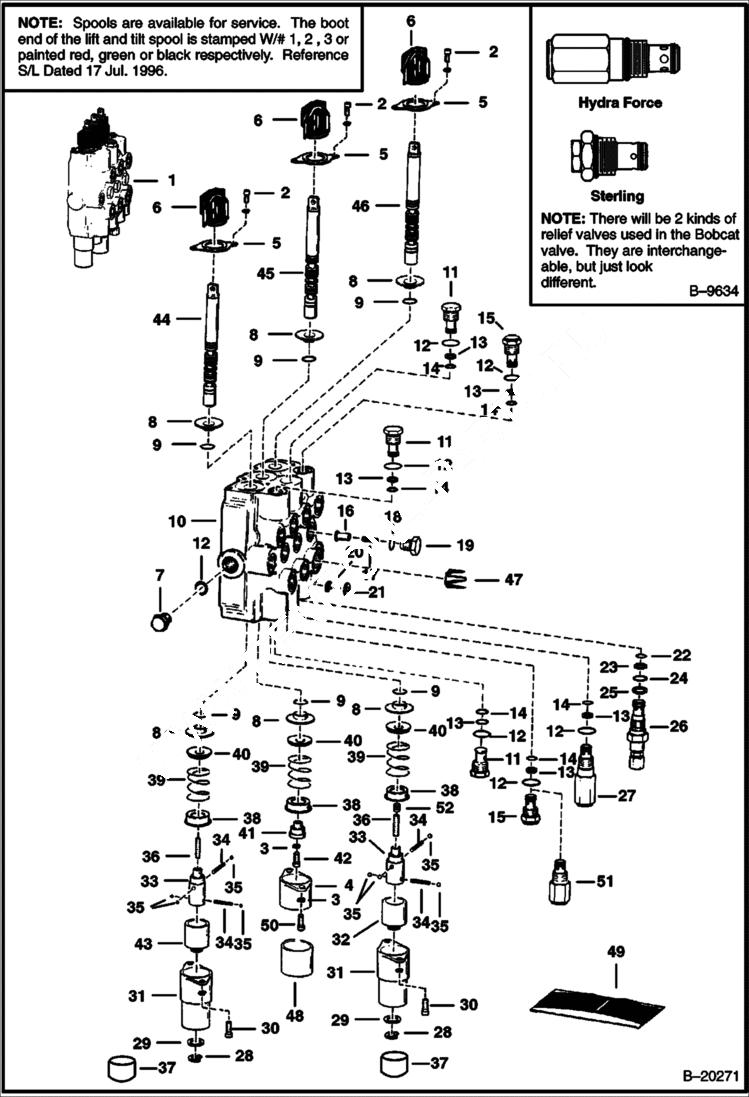

Запчасти Bobcat 700s HYDRAULIC CONTROL VALVE (3-Spool) HYDRAULIC SYSTEM

1

VALVE NLA - Ref. 2-49 - Before ordering repair parts, make sure that this is the correct style Valve. Also Ref. Valve on Ill. E2403. Valve shown here uses stamped boot retainers, Ref. 5, which fit flu

1

SHORT BLOCK NLA - REF. 2-10 & 52 - SEE NOTE - Order Ref. 1

2

6588165

SCREW Was 73G000410B - B

3

22E4

WASHER

4

BONNET NLA - W/.25'' flange thickness - Order 7101345 Bonnet, 6662848 Cap & (2) of 6588164 Screws - Was 6592097 - A

4

7101345

BONNET, DETENT HYD VALVE W/.50'' flange thickness - Was 6587633 - A

5

6592123

RETAINER

6

6587763

BOOT Was 6583727 - A

7

47K7

PLUG

8

6592103

BUSHING

8

6538466

BUSHING With part # stamped on

9

6665089

SEAL See BTI374 lip seal - Was 6659554 - A

10

BODY NSS

11

6592720

PLUG W/Ref. 12-14

12

79K10

O RING 10

13

80K14

BACK-UP WASHER Was 73K000014B - B

14

58K014

O-RING 10 back-up washer required - Was 25K20016 - B

14

6677106

O-RING backup washer not required

15

6667549

VALVE anti-cavitation - W/Ref. 12-14 - Was 6661345 - A

16

6592115

SEAT

17

6592117

SPRING, LOAD CHECK

18

79K8

O RING 10

19

6592116

NUT load check

20

ORIFICE NLA - .123/.130 - Was 6592110 - A

21

6593680

RETAINER

22

O-RING NSS

23

WASHER NSS - back-up

24

O-RING NSS

25

WASHER NSS - back-up

26

RELIEF VALVE NLA - main - W/Ref. 22-25 - press. preset at factory - Was 6649321 - A

26

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

27

6599161

RELIEF VALVE W/Ref. 12-14 - See Note

28

799119

RING

29

6592098

WASHER

30

6588163

SCREW 7/8'' - Was 69G000412B - B

30

29G416

BOLT 1'' - Was 6588982 - A

31

BONNET NLA - W/1.25 flange - Order 6589226 , 6631704 , 2 of 29G000416B - Was 6592094 - A

31

6589226

COVER, END 0.63'' flange

32

6592096

SLEEVE lift

33

6587575

ADAPTER Was 6592099 - A

34

6592107

SPRING

35

6592105

BALL

36

6586918

SCREW Was 6538466 - A

37

6660644

CAP

38

6592100

COLLAR

39

6587580

SPRING Was 6592106 - A

40

7211397

WASHER, SPRING Was 6587523 - A

41

6592109

ADAPTER

42

6588166

SCREW Was 74G000416B - B

43

6593349

SLEEVE aux.

44

6592119

SPOOL auxiliary - SEE NOTE

45

6666585

SPOOL tilt - #1 or red - SEE NOTE

45

6666586

SPOOL tilt - #2 or green - SEE NOTE

45

6666587

SPOOL tilt - #3 or black - SEE NOTE

46

6666582

SPOOL lift - #1 or red - SEE NOTE

46

6666583

SPOOL lift - #2 or green - SEE NOTE

46

6666584

SPOOL lift - #3 or black - SEE NOTE

47

6587304

ORIFICE

48

6662848

CAP Use with 6587633 Bonnet

49

6816251

KIT, SEAL See BTI374 - Ref. 6, 9, 12-14, 18, 22-25 & 52 - Was 6803606 - A

49

6816250

KIT, SEAL See BTI374 - Ref. 2, 6, 9, 30, & 52 - for one spool - Was 6803605 - A

49

6661328

SEAL KIT main relief - Ref. 22-25 - A

49

6809425

SEAL KIT Upper Deck - Ref. 12-14 & 18 - Was 6586461 - A

50

69G414

BOLT Was 6588164 - A

51

6664373

VALVE optional - port relief & anti-cav. - W/Ref. 12 - 2500 PSI - use in tilt cylinder base end port

52

PLUG NLA - plastic - Order 6596807 Plug & 54K020002B O-Ring - Was 6592752 - A

52

6596807

PLUG plastic - 0.46'' long

52

54K20002

O'RING 10
