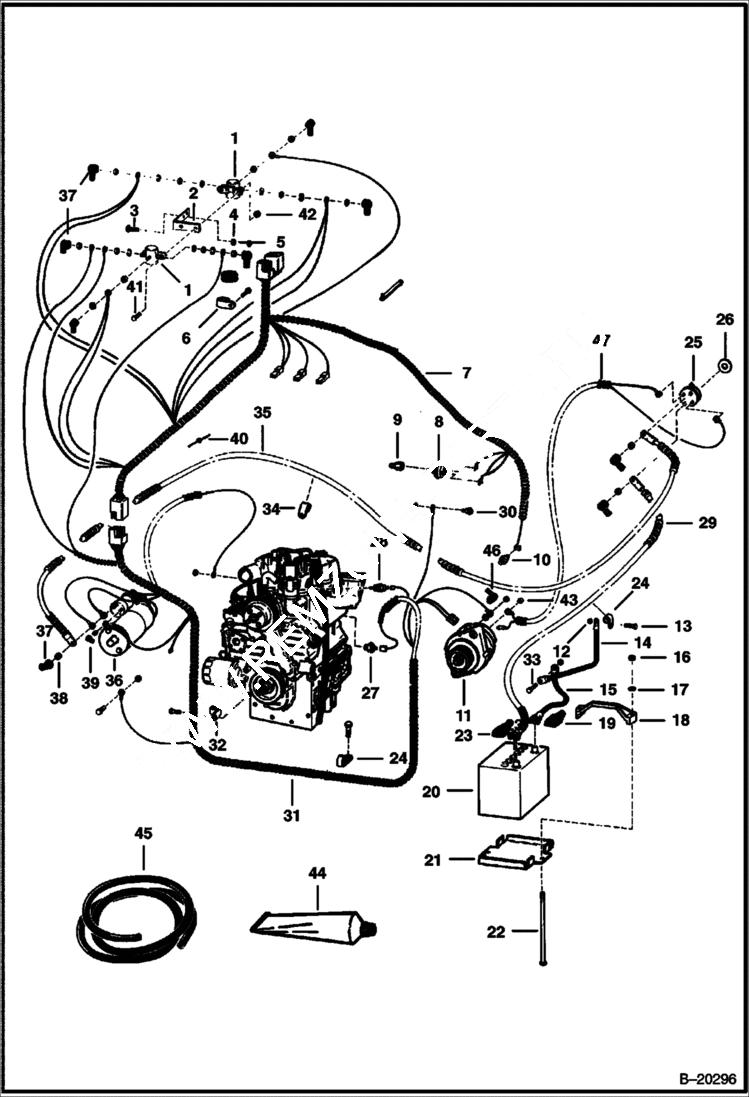

Запчасти Bobcat 700s ENGINE ELECTRICAL (S/N 51378 & Above) ELECTRICAL SYSTEM

1

6659319

SOLENOID Was 6632186 - A

2

6563483

BRACKET

3

7C512

SCREW

4

6E5

WASHER

5

61D5

NUT

6

30H42

CLAMP

7

HARNESS NLA - chassis - Was 6578587 - A

8

6671062

SWITCH hydro. press. - Was 6664577 - A

9

6563922

SNUBBER W/Filter

9

6563920

FILTER

10

6632633

SWITCH hyd temp

11

ALTERNATOR See Illustration CLOSED ALTERNATOR/ D1649 See Illustration ALTERNATOR/ B20297

12

83D5

NUT 5

13

17C512

BOLT 5

14

6563025

CABLE

15

6553094

CABLE

16

59D5

NUT 5

17

25E15

WASHER

18

6569203

CLAMP

19

6599652

BOOT

20

6665031

BATTERY Was 6568707 - A

20

6630153

BATTERY CAP

21

6561733

MOUNT

22

6569623

BOLT

23

2356058

BOOT

24

30H46

CLIP

25

1781345

SWITCH Was 754019B - B

26

6590789

PLATE

27

6969775

SWITCH, OIL PRESSURE eng. oil press. - Was 6652576 - A

28

SENDER See BTI259 NLA - eng. temp.

28

6658818

SENDER See BTI259 eng temp - threaded connector

29

6565737

CABLE

30

SWITCH See Illustration HYDROSTATIC OIL FILTER/ C2818 - filter

31

6578586

HARNESS engine - See Note

32

31H38

CLAMP

33

17C610

BOLT

34

30H29

CLAMP

35

6563135

CABLE pos. - W/Ref. 45

36

STARTER See Illustration STARTER/ B18466 See Illustration STARTER/ D2119 See Illustration STARTER/ B18467

37

6560172

COVER

38

4DM10

NUT

39

4DM5

NUT

40

3675725

DIODE

41

17C412

BOLT 5

42

61D4

NUT 5

43

1DM6

NUT Was 4DM6 - A

44

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz

45

6563505

CONDUIT bulk - Sold Per Foot

46

624425

COVER

47

6578659

HARNESS Alternator Disconnect
