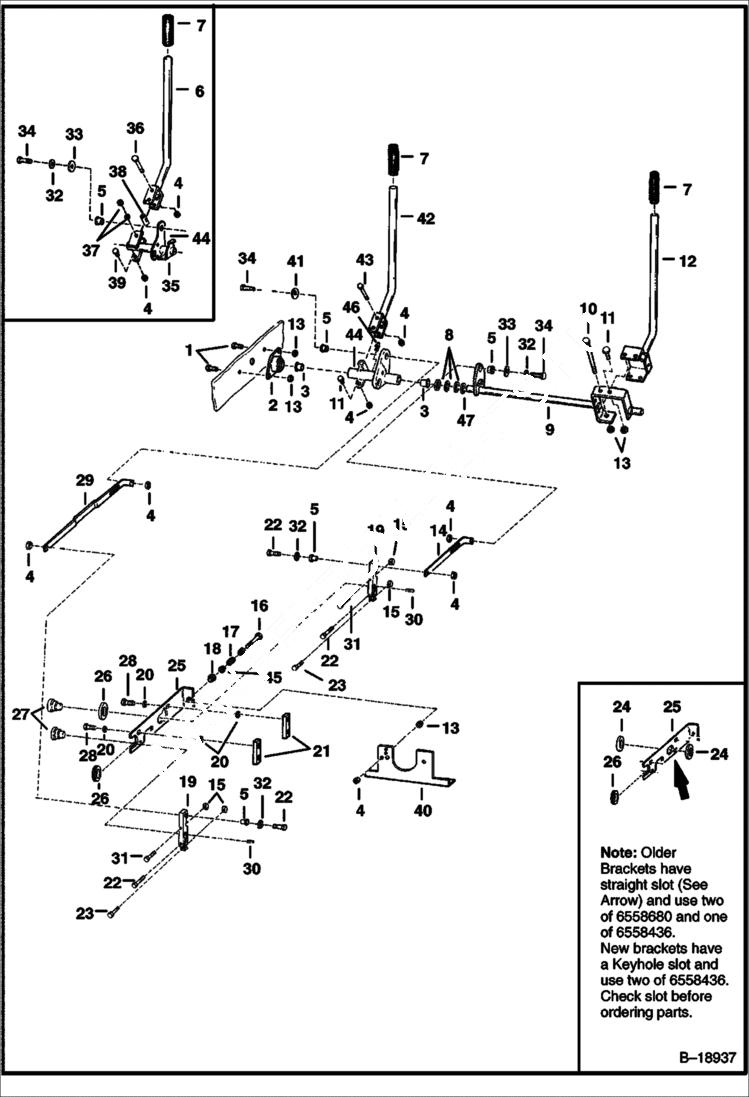

Запчасти Bobcat 700s HAND CONTROLS HYDROSTATIC SYSTEM

1

17C612

BOLT 5

2

6558736

FLANGE

3

6512027

BUSHING

4

85D6

NUT, 5

5

6665701

BUSHING, PRESS FIT Was 6630081 - A

6

6564663

LEVER LH

7

6513963

GRIP

8

25E29

WSHR

9

6564705

SHAFT

10

6553081

BOLT

11

17C620

BOLT

12

6558615

HANDLE RH

13

61D6

NUT 5

14

6558431

BAR

15

6562062

CAM

16

17C696

BOLT

17

SPRING NLA - .44'' ID - Order 6572026 & (2) 6571991 - Was 6505082 - A

17

6572026

SPRING .75'' I.D.

18

6579990

WASHER Was 6558429 - A

18

6571988

BUSHING

19

6565751

LEVER, PINTLE

20

6557831

WASHER

21

6562281

BAR

22

17C628

BOLT

23

PUMP See Illustration HYDROSTATIC PUMP/ D1392 HYDROSTATIC

24

6558680

WASHER See Note

25

6562767

BRACKET

25

6571899

BRACKET See Note

26

6558436

GUIDE See Note

27

6562063

HUB

28

8C616

SCREW

29

6558430

BAR

30

5J806

KEY

31

17C624

BOLT 5

32

6563914

WASHER

33

6563965

WASHER

34

17C626

BOLT

35

6564662

LEVER

36

17C648

BOLT 5

37

6564648

WASHER

38

6564667

BUSHING

39

17C616

BOLT 5

40

6569553

BRACKET

41

6569505

WASHER

42

6569496

LEVER

43

6569141

BOLT

44

6569143

BELLCRANK

45

6571991

GUIDE Use only W/6572026 Spring

46

10H35

FITTING, GREASE 10

47

6705033

WASHER .067 (1,70 mm)
