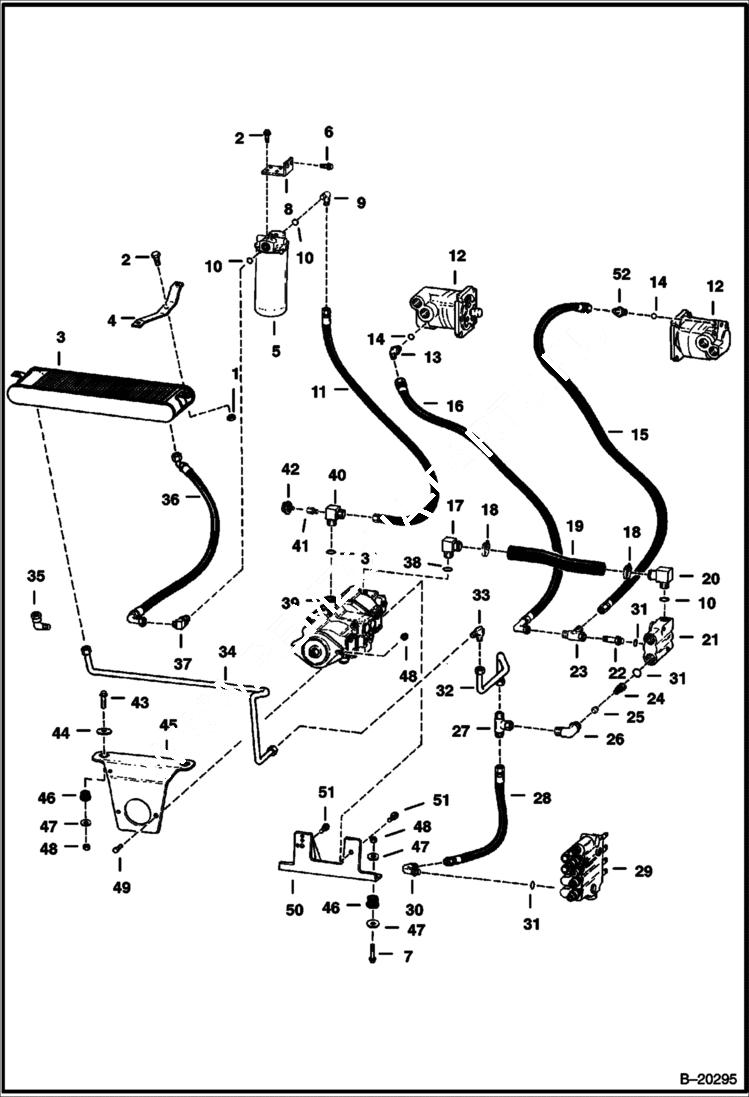

Запчасти Bobcat 700s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

85D6

NUT, 5

2

35C612

BOLT

3

6560954

OIL COOLER

4

6565195

BRACKET

5

FILTER ASSY. See Illustration HYDROSTATIC OIL FILTER/ C2818

6

84G3712

BOLT 5

7

17C836

BOLT

8

6565336

BRACKET

9

17K8

FITTING W/Ref. 10

10

79K12

O RING 10

11

6702857

HOSE Was 2525543B - A

12

MOTOR See Illustration HYDROSTATIC MOTOR/ D1443

13

18K5

ELBOW W/Ref. 14

14

79K6

O RING 10

15

1518597

HYD HOSE Use W/Elbow

15

6542521

HOSE Use W/Straight Adapter

16

6564714

HOSE

17

6567883

ELBOW W/Ref. 38

18

44H20

CLAMP Was 6666864 - A

19

HOSE NLA - Was 6565344 - A

20

1321499

FITTING W/Ref. 10 - Was 6567884 - A

21

6565748

BLOCK

22

731795

CONNECTR W/Ref. 31

23

13K5

TEE

24

6565425

SPRING

25

6515078

POPPET

26

6565701

ELBOW W/Ref. 31

27

14K7

TEE

28

TUBE NLA - Order 6567419 Hose

28

6567419

HOSE

29

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B18925

30

6532179

ELBOW W/Ref. 31 - Was 17K000007B - B

31

79K10

O RING 10

32

6565338

TUBE

32

6565717

TUBE

33

87F7

UNION

33

77F7

ELBOW

34

TUBE NLA - Was 6565506 - A

34

6567313

TUBE

35

11K7

ADAPTER Use W/6565506 Tube

36

6567026

HOSE

37

17KB1012

FITTING, HYD ELBOW W/Ref. 10 - Was 1302104B - A

38

79K16

O RING 10

39

PUMP See Illustration HYDROSTATIC PUMP/ D1392

40

6565630

ELBOW W/Ref. 31

41

6563922

SNUBBER

41

6563920

FILTER

42

6671062

SWITCH hydro. pressure -Was 6664577 - A

43

35C840

BOLT

44

6560899

WASHER

45

6562697

MOUNT

46

6560633

DAMPENER rubber

47

6564692

WASHER

48

85D8

NUT, 5

49

17C824

BOLT 5

50

6569553

BRACKET

51

17C816

BOLT

52

18K5

ELBOW W/Ref. 14 - Also Use W/Ref. 15 (1518597B Hose)

52

15K5

FITTING W/Ref. 14 - Also Use W/Ref. 15 (6542521 Hose)
