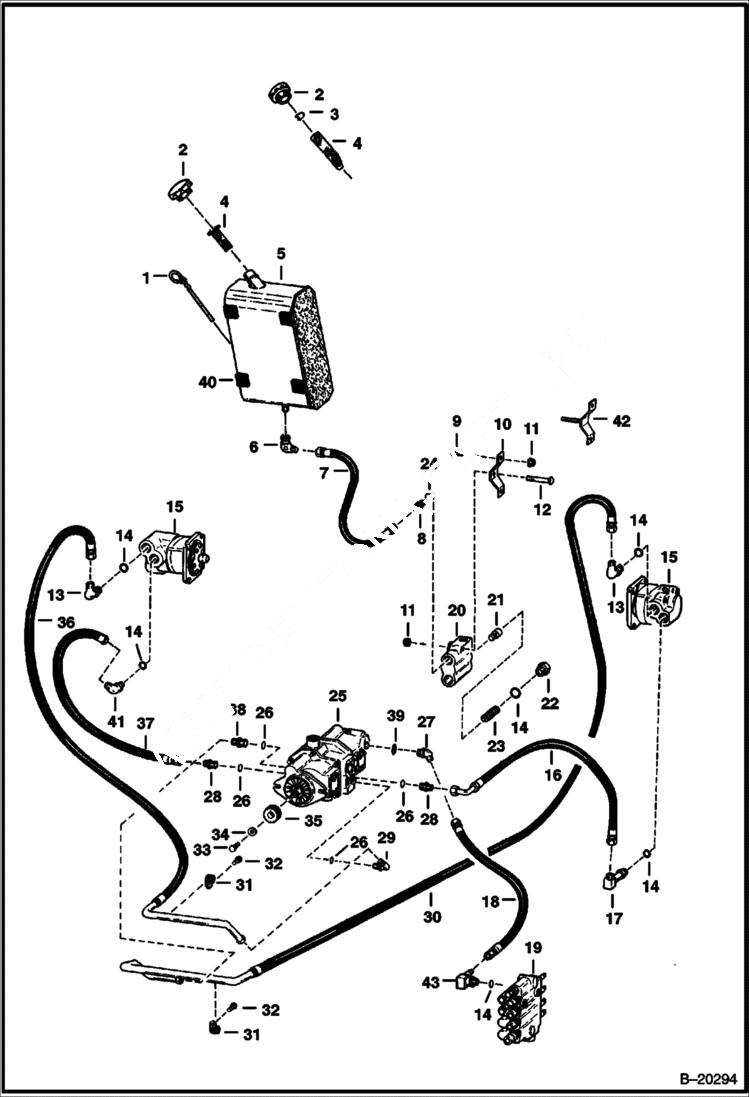

Запчасти Bobcat 700s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

6563979

DIPSTICK

2

BREATHER CAP NLA - Pack of 12 - Was 1779011B - A

2

6577785

CAP breather - Qty. of 1

3

713133

SNAP RING

4

6558604

SCREEN

4

7120881

SCREEN, FILLER Was 6569219 - A

5

6563981

TANK steel

5

TANK NLA - steel - Order 6563981 tank, 713133 snap ring, 6558604 screen & 6563979 dip stick - Was 6568196 - A

6

11K8

ELBOW

7

6565572

HOSE

8

15K8

FITTING W/Ref. 24

9

35C616

BOLT 5

10

6569580

BRACKET Use W/7C000640B

11

83D6

NUT 5

12

17C640

BOLT 5 hex

12

7C640

BOLT carriage

13

17K7

ELBOW W/Ref. 14

14

79K10

O RING 10

15

MOTOR See Illustration HYDROSTATIC MOTOR/ D1443

16

6565490

HOSE

17

6519195

ELBOW W/Ref. 14

18

6567542

HOSE

19

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B18925

20

6565748

BLOCK port

21

6565620

POPPET

22

6561811

PLUG W/Ref. 14

23

6562691

SPRING

24

79K12

O RING 10

25

PUMP See Illustration HYDROSTATIC PUMP/ D1392

26

79K16

O RING 10

27

18K6

FITTING W/Ref. 39

28

15KB1216

FITTING, HYD CONNECTOR W/Ref. 26 - Was 712555B - A

29

17K10

FITTING W/Ref. 26

30

6563241

HOSE & TUBE assy.

31

30H49

CLAMP

32

17C416

BOLT

33

18C616

BOLT 5

34

616783

WASHER

35

7106572

ADAPTER, SHAFT Was 6558924 - A

36

6563242

HOSE & TUBE assy.

37

6558961

HOSE

38

15K10

ADAPTOR W/Ref. 26

39

79K8

O RING 10

40

6559448

SEAL rubber - Order 12'' (304,8 mm) - Was 6562555 - A

41

18K7

FITTING W/Ref. 14

42

BRACKET NLA - Order Ref. 10 & (1) 7C000640B Bolt - Was 6569047 - A

43

6532179

ELBOW W/Ref. 14
