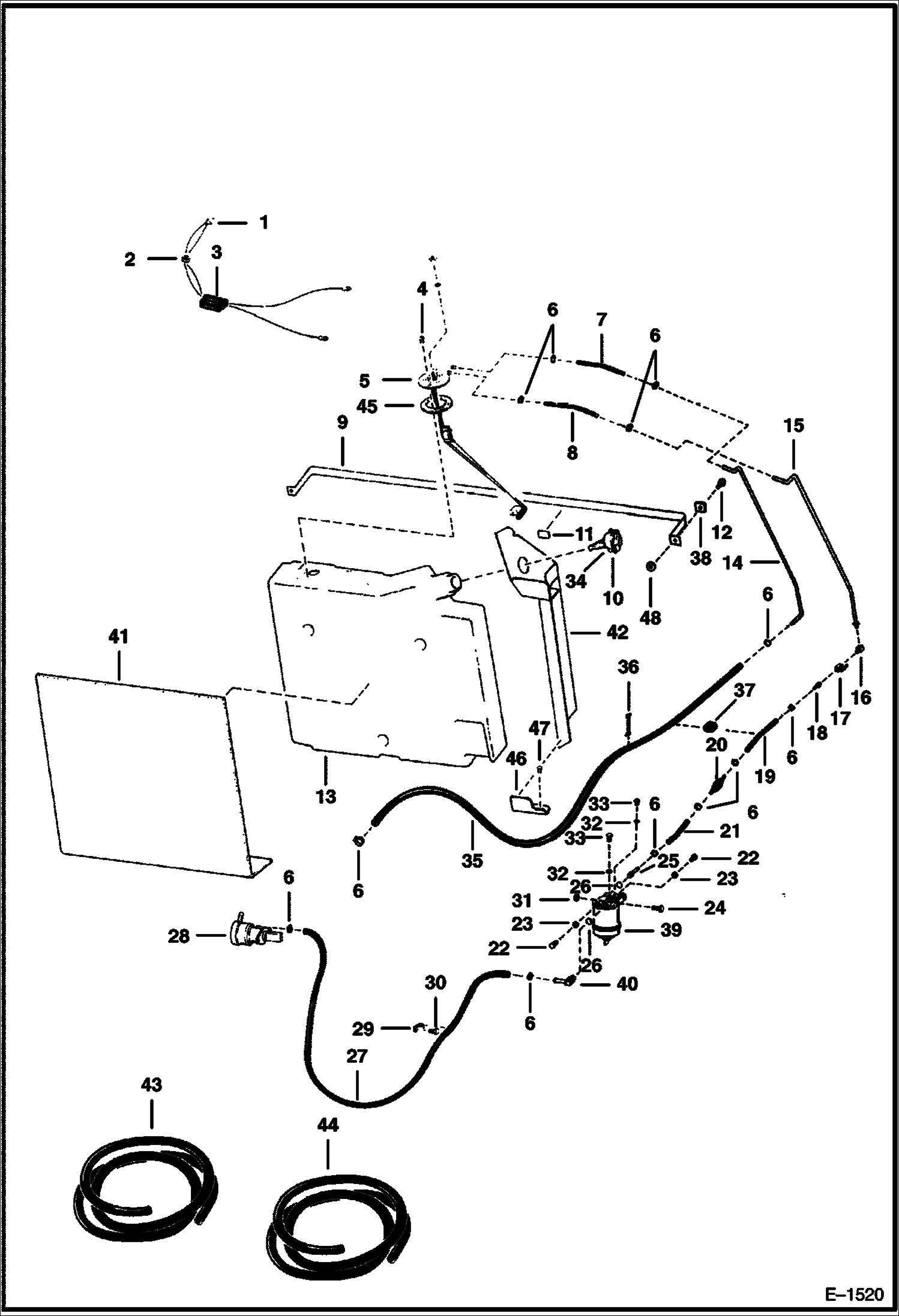

Запчасти Bobcat 700s FUEL SYSTEM MAIN FRAME

1

6560117

WIRE

2

742876

GROMMET

3

6562606

SEAL

4

87G1010

SCREW Was 85G001010B - B

5

6563210

SENDER Fuel - includes gasket

6

42HS04

CLAMP, HOSE Was 6515575 - A

7

HOSE NLA - 6'' (152,4 mm) - Order Ref. 43

8

HOSE NLA - 7'' (177,8 mm) - Order Ref. 44

9

6562559

BAND

10

793560

GAS CAP explosion proof

11

6591273

STRIP rubber - Was 6563233 - A

12

84G3720

BOLT

13

TANK NLA - Was 6562705 - A

13

TANK NLA - Was 6567924 - A

14

6562548

TUBE

15

6562547

TUBE

16

62F4

ELBOW

17

6562553

VALVE shut off

18

6505813

CONNECTOR

19

HOSE NLA - 5'' (127 mm) - Order Ref. 43

20

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long - A

21

HOSE NLA - 2'' (50,8 mm) - Order Ref. 43

22

6515682

PLUG

23

6515466

WASHER

24

17C616

BOLT 5

25

6560355

FITTING

26

79K5

O RING 10 flat boss face

26

99K5

O-RING tapered boss face

27

HOSE NLA - 49'' (1244,6 mm) - Order Ref. 44

28

FUEL PUMP See Illustration INJECTION PUMP/ C2560 See Illustration INJECTION PUMP/ B20300

29

30H46

CLIP

30

6CM1220

BOLT

31

57D6

NUT 5

32

6515468

WASHER

33

6515676

PLUG

34

6563171

WASHER

35

HOSE NLA - 30'' (762 mm) - Order Ref. 43

36

6513471

CLAMP

37

6515603

GROMMET

38

6559447

WASHER square

39

FILTER See Illustration FUEL FILTER/ B5653

40

ELBOW NLA - W/Ref. 26 - flat boss face - Was 6657083 - A

40

6715183

ELBOW W/Ref. 26 - check boss face to determine correct replacement o-ring

41

6564230

INSULATION

42

6563166

SHIELD

42

6568270

SHIELD

43

6577821

HOSE bulk - sold per foot

44

6577822

HOSE bulk - sold per foot

45

6630972

GASKET

46

6568269

SHIELD splash

47

6598681

RIVET

48

663316

WASHER
