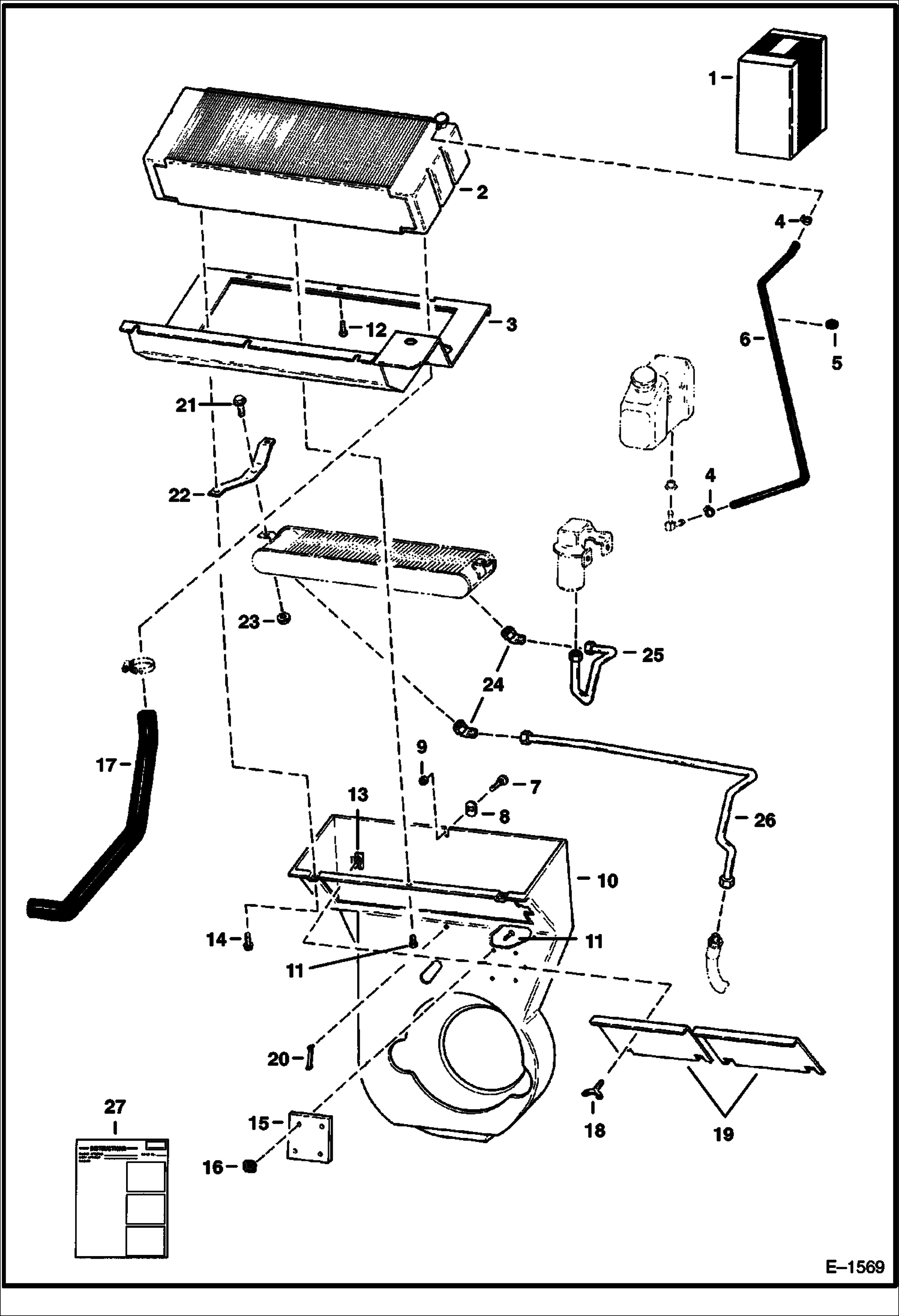

Запчасти Bobcat 700s RADIATOR CONVERSION KIT (S/N 14999 & Below) ACCESSORIES & OPTIONS

1

6567060

KIT radiator conversion - Ref. 2-27

2

6648820

EXCHANGER, WATER RADIATOR Was 6630186 - A

3

6565419

MOUNT

4

42HS04

CLAMP, HOSE Was 6515575 - A

5

742876

GROMMET

6

6577822

HOSE bulk - Sold Per Foot - 39''(991mm) Reg. - Was 6562515 - A

7

37C516

BOLT Was 6565089 - A

8

774220

NUT

9

83D5

NUT 5

10

6564728

HOUSING, BLOWER blower

11

6555293

NAIL

12

21C510

BOLT

13

6599702

NUT

14

35C512

BOLT

15

INSULATION Was 6564595 - A

16

6555294

CLIP

17

6565598

HOSE

18

6565418

SCREW wing

19

6565196

COVER

20

6513471

CLAMP

21

35C612

BOLT

22

6565195

BRACKET

23

57D6

NUT 5

24

11K7

ADAPTER

25

6565787

TUBELINE

26

6565788

TUBELINE

27

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6566612 - A
